22323 (TX 525) - Toro Dingo Compact Utility Loader (SN: 314000001 - 314999999) (2014) PISTON AND CRANKSHAFT ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

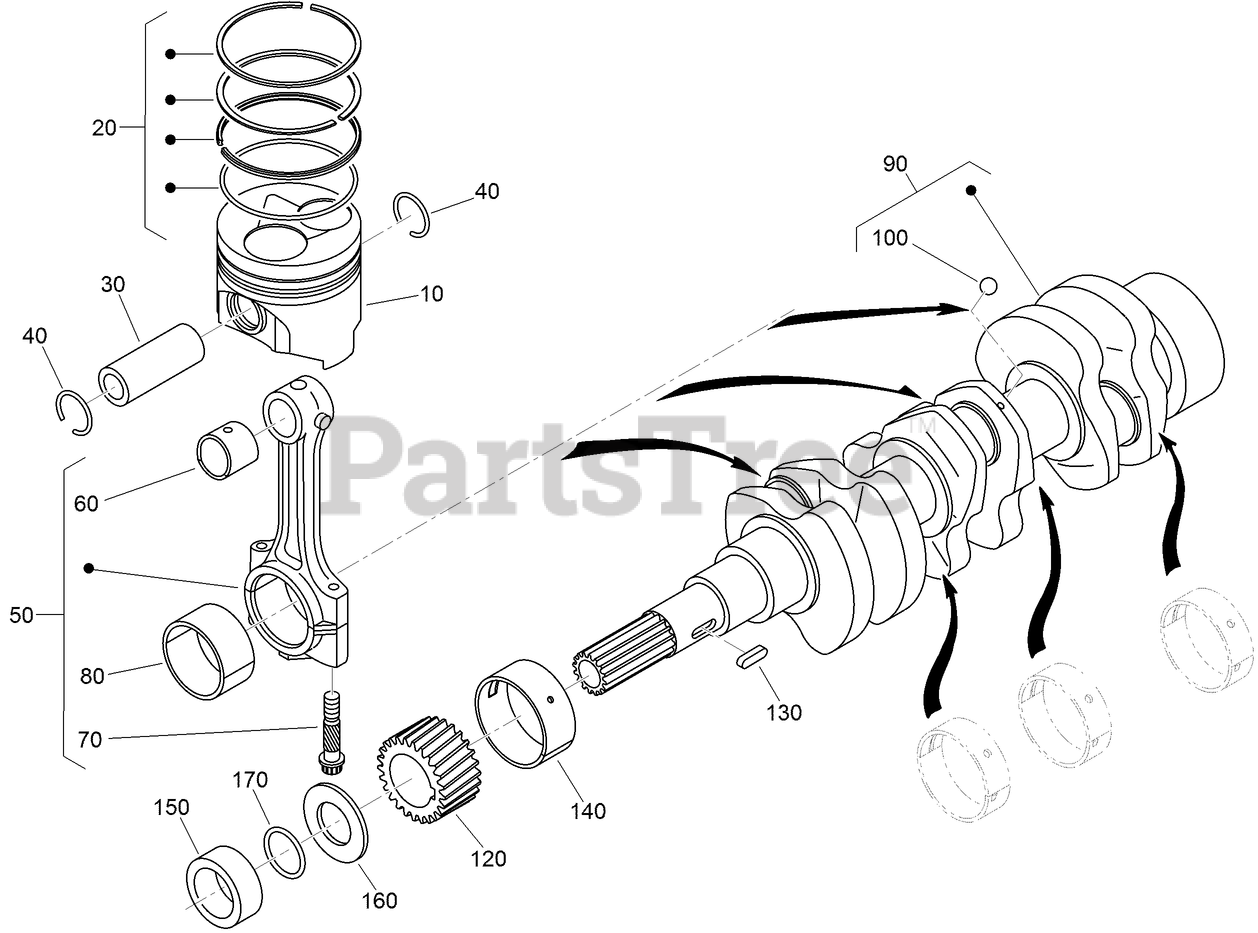

PISTON AND CRANKSHAFT ASSEMBLY Parts Diagram

  • Title

10

Toro 130-1537

PISTON

$286.99

$

Usually ships in 3-6 days

0

10

Toro 130-1540

PISTON
(Superseded to 130-1539)

$624.99

$

Usually ships in 3-6 days

0

20

Toro 130-1535

PISTON RING ASM

$290.99

$

In Stock, only 1 left!

0

20

Toro 130-1536

PISTON RING ASM

$291.99

$

Usually ships in 3-6 days

0

30

Toro 110-3734

PIN-PISTON

$33.99

$

Usually ships in 3-6 days

0

40

Toro 100-1835

CIRCLIP-INTERNAL

$3.99

$

Usually ships in 3-6 days

0

50

Toro 125-9070

CONNECTING ROD ASM

$684.99

$

Usually ships in 3-6 days

0

60

Toro 110-3736

BUSHING-PIN, PISTON

$29.99

$

Usually ships in 3-6 days

0

70

Toro 100-1999

BOLT-ROD, CONNECTING

$22.99

$

Usually ships in 3-6 days

0

80

Toro 100-2000

METAL-CRANKPIN (STD)

$59.99

$

Usually ships in 3-6 days

0

80

Toro 121-3849

METAL-CRANKPIN (-.20MM)

$66.99

$

Usually ships in 3-6 days

0

80

Toro 121-2420

METAL-CRANKPIN (-.40MM)

$62.99

$

Usually ships in 3-6 days

0

90

Toro 117-0308

CRANKSHAFT

$3213.99

$

Usually ships in 3-6 days

0

100

Toro 100-1791

BALL

$2.99

$

Usually ships in 3-6 days

0

120

Toro 100-1891

GEAR-CRANKSHAFT

$119.99

$

Usually ships in 3-6 days

0

130

Toro 100-1752

KEY-FEATHER

$4.49

$

Usually ships in 3-6 days

0

140

Toro 110-3738

METAL-CRANKSHAFT (STD)

$49.99

$

Usually ships in 3-6 days

0

140

Toro 121-2424

METAL-CRANKSHAFT (-.20MM)

$99.99

$

Usually ships in 3-6 days

0

140

Toro 121-2425

METAL-CRANKSHAFT (-.40MM)

$34.99

$

Usually ships in 3-6 days

0

150

Toro 100-1890

COLLAR-CRANKSHAFT

$89.99

$

Usually ships in 3-6 days

0

160

Toro 100-1974

SLINGER-OIL

$3.99

$

Usually ships in 3-6 days

0

170

Toro 100-2209

O-RING

$12.99

$

Usually ships in 3-6 days

0
