223230x683C - Stanley 22" Walk-Behind Mower (2002) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

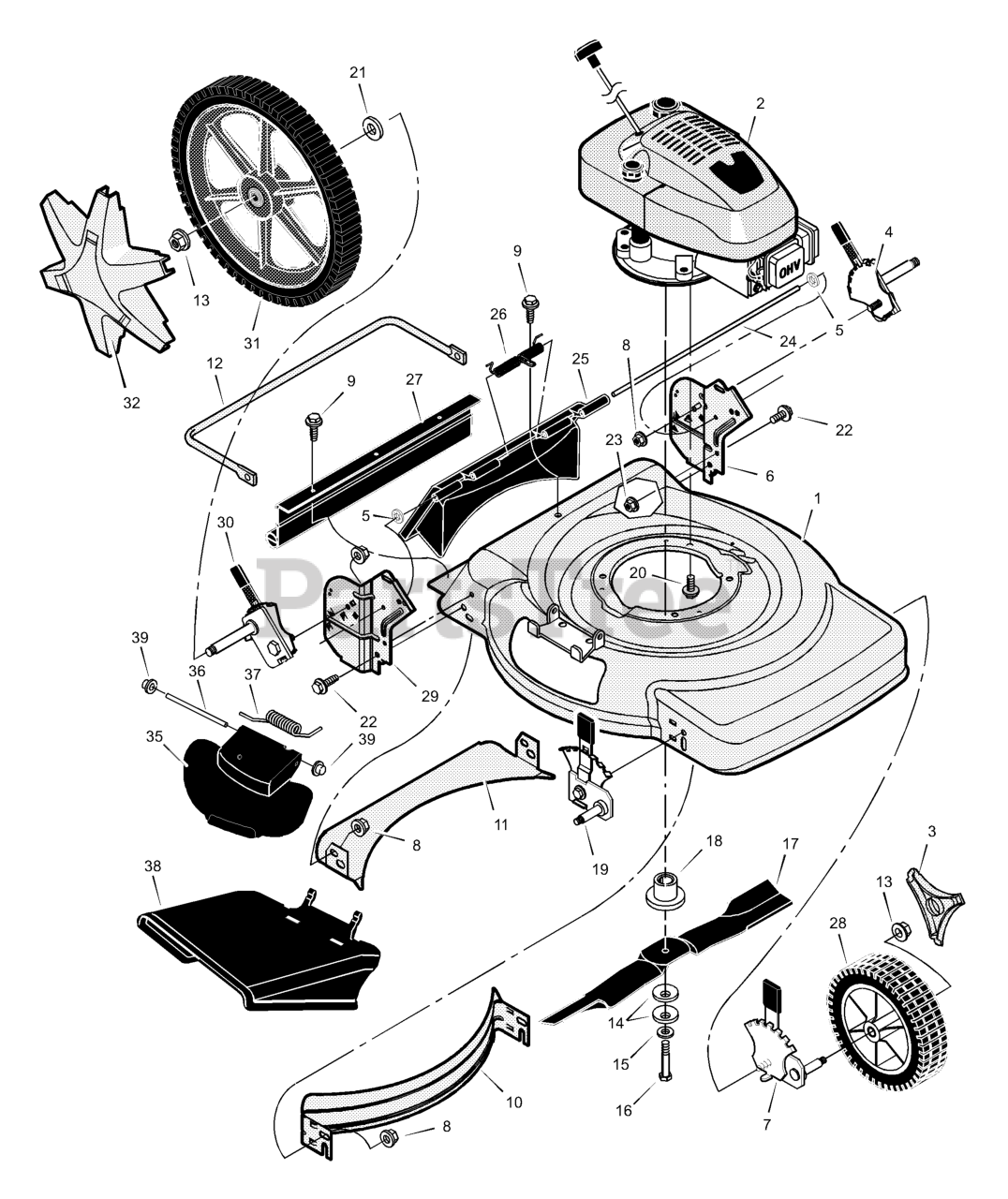

Mower Housing Assembly Parts Diagram

  • Title
1

$

$

Not available

2

Engine *

$

$

Not available

3

Murray 1101412

Cap, Hub

$

$

Not available

4

Murray 672919MA

Adjuster, Left Rear Height

$19.99

$

Usually ships in 2-12 days

0

5

Murray 028X49MA

Push On Cap

Note: (Included with Ref. No. 25)

$3.99

$

In Stock, Qty 13

0

6

Murray 1101245E700

Bracket, Left Handle

$

$

Not available

7

Murray 672601MA

Adjuster, Left Front Height

$87.99

$

Usually ships in 2-12 days

0

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

$4.49

$

In Stock, Qty 6

0

10

Murray 672915E700

Baffle, Front

Note: (Included with Ref. No. 1)

$

$

Currently unavailable

11

Murray 672916E700

Baffle, Rear

Note: (Included with Ref. No. 1)

$

$

Currently unavailable

$

$

Not available

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

$4.49

$

Usually ships in 2-12 days

0

16

$8.49

$

In Stock, Qty 7

0

17

$42.99

$

Usually ships in 2-12 days

0

18

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 672600MA

Adjuster, Right Front Height

$82.99

$

In Stock, only 1 left!

0

20

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

21

$4.49

$

In Stock, Qty 12

0

22

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

23

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X21MA

Rod, Pivot

Note: (Included with Ref. No. 25)

$7.99

$

Usually ships in 2-12 days

0

25

Murray 1101070MA

Door, Rear (Black)

$49.99

$

Usually ships in 2-12 days

0

26

Murray 166X44MA

Spring

Note: (Included with Ref. No. 25)

$14.99

$

In Stock, only 3 left!

0

27

Murray 672684

Guard, Rear

$18.99

$

In Stock, only 2 left!

0

28

Murray 1101408MA

Wheel & Tire, Front
(Superseded to 672802MA)

$27.99

$

Usually ships in 2-12 days

0

29

Murray 1101244E700

Bracket, Right Handle

$8.49

$

Usually ships in 2-12 days

0

30

Murray 672918MA

Adjuster, Right Rear Height

$21.99

$

Usually ships in 2-12 days

0

31

Murray 1101410MA

Wheel & Tire, Rear
(Superseded to 672801MA)

$101.99

$

Usually ships in 2-12 days

0

32

Murray 1101414

Cap, Hub

$

$

Not available

35

Murray 1101098MA

Cover, Mulch (Black)

$33.99

$

Usually ships in 2-12 days

0

36

Murray 215X19 Z

Rod, Pivot

$

$

Currently unavailable

37

Murray 166X38MA

Spring, Torsion

$4.99

$

In Stock, only 2 left!

0

38

Murray 1101097MA

Deflector, Chute (Black)

$39.99

$

In Stock, only 1 left!

0

39

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-020448L

Book, Instruction

$

$

Currently unavailable
