22324 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 407600000 - 407959999) Fuel Tank, Fuel Pump and Filter Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

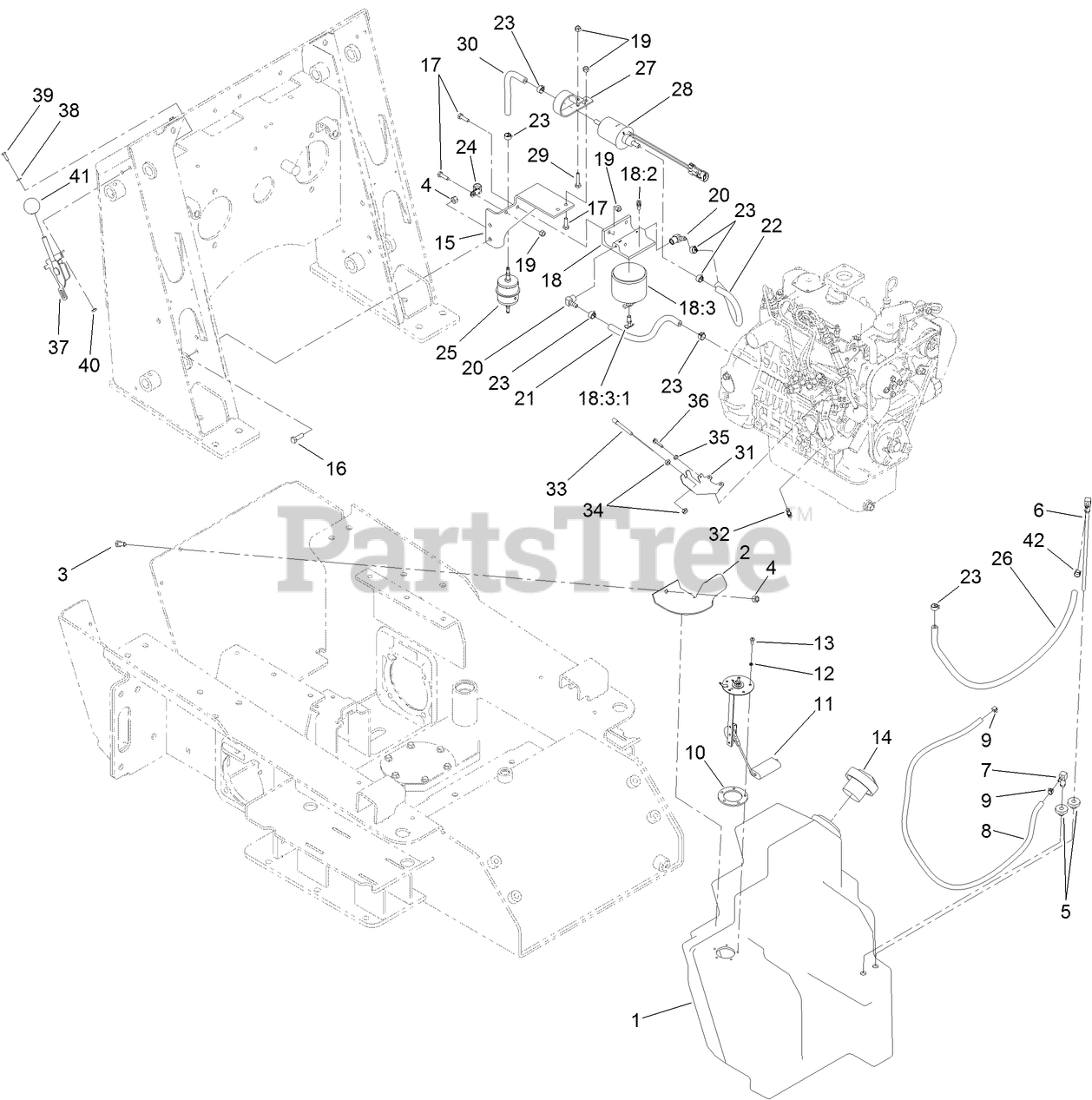

Fuel Tank, Fuel Pump and Filter Assembly Parts Diagram

  • Title

1

Toro 115-4800

TANK-FUEL

$594.99

$

Usually ships in 3-6 days

0

2

Toro 108-6273-03

CLAMP-TANK, FUEL

$58.99

$

Usually ships in 3-6 days

0

3

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

6

Toro 98-0185

PIPE-STAND

$42.99

$

In Stock, only 1 left!

0

7

Toro 104-5228

FITTING-ELBOW, 90 DEG

$20.99

$

Usually ships in 3-6 days

0

8

Toro 110-3958

HOSE-FUEL

$29.99

$

Usually ships in 3-6 days

0

9

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 2 left!

0

10

Toro 113372

GASKET-SENDER, FUEL

$3.99

$

In Stock, only 1 left!

0

11

Toro 120-5391

SENDER-FUEL

$294.99

$

Usually ships in 3-6 days

0

12

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

13

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 107-2172

CAP-DIESEL

$50.99

$

Usually ships in 3-6 days

0

15

Toro 117-1346-03

BRACKET-PUMP, FUEL

$60.99

$

Usually ships in 3-6 days

0

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 109-2678

FILTER HEAD ASM

$240.99

$

Usually ships in 3-6 days

0

18:2

Toro 63-8290

VENT-AIR

$25.99

$

In Stock, only 1 left!

0

18:3

Toro 63-8300

ELEMENT-SPIN ON

$33.99

$

In Stock, Qty 7

0

18:3:1

Toro 63-8310

VALVE-DRAIN

$17.99

$

Usually ships in 3-6 days

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 353-781

FITTING-HYD, 90

$30.99

$

Usually ships in 3-6 days

0

21

Toro 110-4124

HOSE-FUEL

$14.99

$

Usually ships in 3-6 days

0

22

Toro 106-1126

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

23

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

24

Toro 2412-134

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

25

Toro 112-7836

FILTER-INLINE

$15.99

$

In Stock, Qty 20+

0

26

Toro 109-0302

HOSE-FUEL

$13.99

$

In Stock, only 3 left!

0

27

Toro 110-8817

BRACKET-PUMP, FUEL

$27.99

$

Usually ships in 3-6 days

0

28

Toro 110-8806

PUMP-FUEL
(Superseded to 144-4020)

$224.99

$

In Stock, Qty 6

0

29

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 15

0

30

Toro 108-3280

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

31

Toro 108-5922

BRACKET-SUPPORT, THROTTLE

$21.99

$

Usually ships in 3-6 days

0

32

Toro 108-5928

SWIVEL-STOP, CABLE

$17.99

$

Usually ships in 3-6 days

0

33

Toro 108-6337

CABLE-THROTTLE

$33.99

$

In Stock, only 2 left!

0

34

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

35

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

36

Toro 117-1701

SCREW-HWHTF

$6.99

$

Usually ships in 3-6 days

0

37

Toro 108-9730

LEVER-CONTROL

$44.99

$

In Stock, Qty 7

0

38

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

39

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

40

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

41

Toro 233-42

KNOB

$14.99

$

In Stock, Qty 5

0

42

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0
