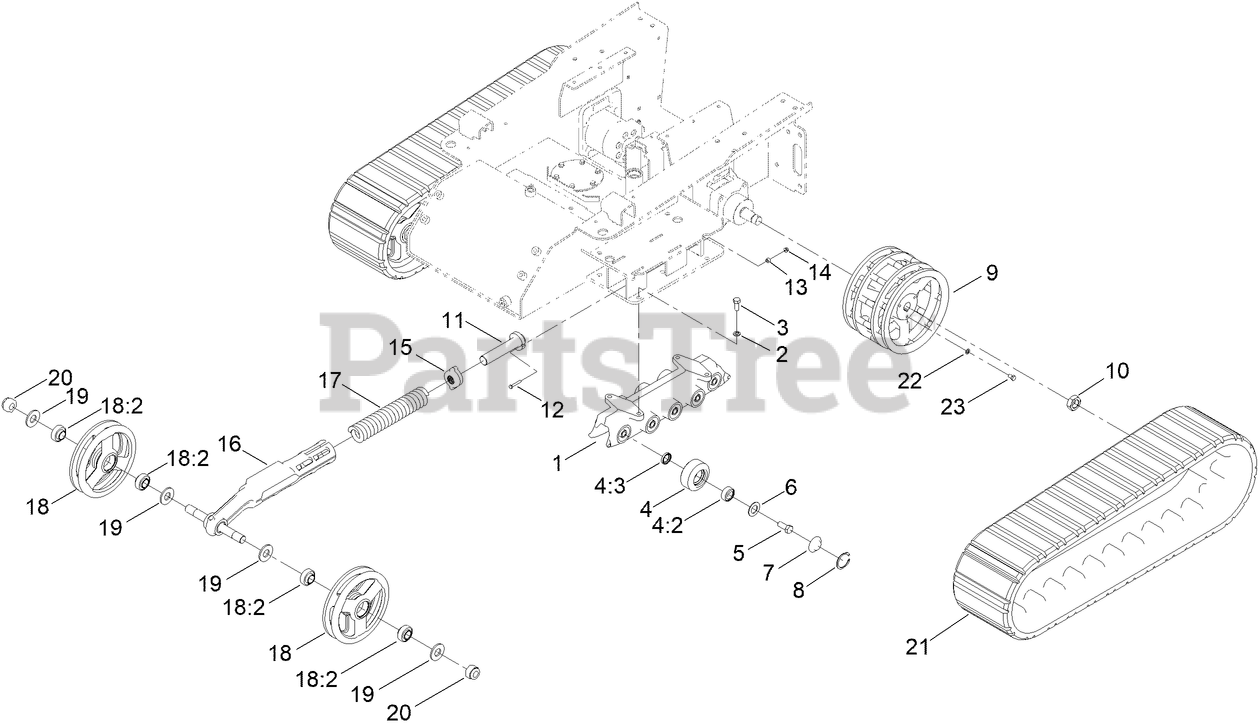

22324 (TX 525) - Toro Dingo Wide Track Compact Utility Loader (SN: 407960000 - 409359999) Track and Traction Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

Track and Traction Assembly Parts Diagram

  • Title

1

Toro 117-1308-0P

GUIDE-TRACK, TX WIDE

$864.99

$

In Stock, only 2 left!

0

2

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

3

Toro 325-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 138-0782

ROAD WHEEL ASM

$101.99

$

In Stock, only 3 left!

0

4:2

Toro 120-5378

BEARING-BALL

$17.99

$

In Stock, Qty 14

0

4:3

Toro 253-118

SEAL-OIL

$20.99

$

In Stock, Qty 20+

0

5

Toro 327-4

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Toro 106-7585

GASKET-BOGIE

$2.49

$

In Stock, Qty 20+

0

7

Toro 106-7557

CAP-WHEEL, BEARING

$5.99

$

Usually ships in 3-6 days

0

8

Toro 106-7595

RING-SNAP, INTERNAL

$5.99

$

Usually ships in 3-6 days

0

9

Toro 115-0721-03

WHEEL-DRIVE

$1716.99

$

Usually ships in 3-6 days

0

10

Toro 107-9319

NUT-HEX

$46.99

$

In Stock, only 2 left!

0

11

Toro 98-9846

BOLT-TENSIONER

$469.99

$

Usually ships in 3-6 days

0

12

Toro 321-37

SCREW-HH

$12.99

$

In Stock, only 2 left!

0

13

Toro 98-4799

SPACER

$8.49

$

In Stock, Qty 20+

0

14

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 17

0

15

Toro 108-4664

BLOCK-TENSIONER

$141.99

$

In Stock, only 2 left!

0

16

Toro 115-0717-03

ARM-TENSIONER

$688.99

$

Usually ships in 3-6 days

0

17

Toro 95-3624

SPRING-COMPRESSION

$197.99

$

In Stock, only 1 left!

0

18

Toro 138-0783

TENSIONER WHEEL ASM

$572.99

$

Usually ships in 3-6 days

0

18:2

Toro 104-6129

BEARING-BALL

$151.99

$

In Stock, only 2 left!

0

19

Toro 115-0722

WASHER-PLAIN

$7.99

$

In Stock, Qty 8

0

20

Toro 104-2024

NUT-HEX, NI

$22.99

$

In Stock, only 2 left!

0

21

Toro 136-5848

TRACK

$1356.99

$

Usually ships in 3-6 days

0

22

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

23

Toro 323-34

SCREW-HH

$6.99

$

In Stock, only 2 left!

0
