22327 HD (TX 1000) - Toro Dingo Compact Utility Loader (SN: 400000000 - 400499999) Track Assembly, Lug-Driven Parts Diagram

Dingo Compact Utility Loader

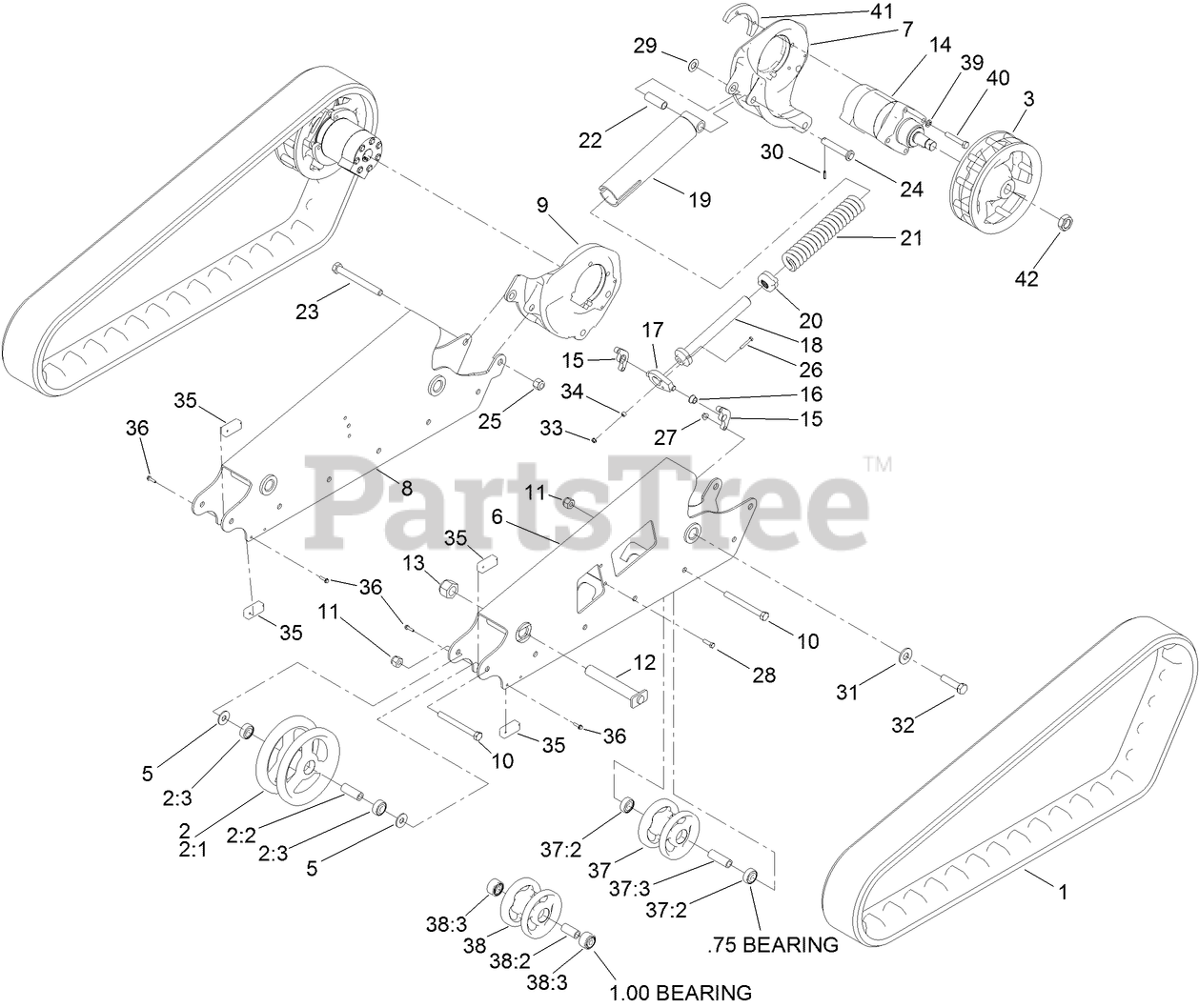

Track Assembly, Lug-Driven Parts Diagram

  • Title

1

Toro 121-4592

See Supercession: 136-5846
(Superseded to 136-5846)

$1373.99

$

Usually ships in 3-6 days

0

2

Toro 104-5745

TENSIONER WHEEL ASM

$802.99

$

In Stock, only 1 left!

0

2:1

Toro 104-5747-03

WHEEL-TENSIONER
(Superseded to 104-5745)

$802.99

$

In Stock, only 1 left!

0

2:2

Toro 98-9835

SPACER-WHEEL, TENSIONER

$18.99

$

In Stock, only 2 left!

0

2:3

Toro 120-5378

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

3

Toro 133-0215-03

WHEEL-DRIVE

$826.99

$

Usually ships in 3-6 days

0

5

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 15

0

6

Toro 125-0420-01

MOUNT-NARROW WHEEL, LH

$1517.99

$

Usually ships in 3-6 days

0

7

Toro 127-9593-03

MOUNT-WHEEL, LH

$

$

Not available

8

Toro 125-0440-01

MOUNT-NARROW WHEEL, RH

$1517.99

$

Usually ships in 3-6 days

0

9

Toro 127-9594-03

MOUNT-WHEEL, RH

$758.99

$

Usually ships in 3-6 days

0

10

Toro 327-17

SCREW-HH

$13.99

$

In Stock, only 3 left!

0

11

Toro 3296-24

NUT-HEX

$5.49

$

In Stock, only 2 left!

0

12

Toro 130-0967

PIN-TRACK

$87.99

$

Usually ships in 3-6 days

0

13

Toro 125-0399

NUT-HH

$22.99

$

In Stock, only 2 left!

0

14

Toro 130-7729

MOTOR-HYD
(Superseded to 138-0778)

$2231.99

$

Usually ships in 3-6 days

0

15

Toro 127-9566-03

PLATE-MOUNT, PIVOT
(Superseded to 127-9566)

$43.99

$

In Stock, only 1 left!

0

16

Toro 65-8770

BUSHING-BELLCRANK

$6.99

$

In Stock, only 3 left!

0

17

Toro 127-9616

TENSIONER-PIVOT JOINT
(Superseded to 132-8620)

$91.99

$

In Stock, only 2 left!

0

18

Toro 127-9563

BOLT-TENSIONER

$277.99

$

Usually ships in 3-6 days

0

19

Toro 127-9559-03

PIVOT-TENSIONER

$241.99

$

Usually ships in 3-6 days

0

20

Toro 108-4664

BLOCK-TENSIONER

$145.99

$

In Stock, only 1 left!

0

21

Toro 95-3624

SPRING-COMPRESSION

$203.99

$

In Stock, only 2 left!

0

22

Toro 127-9565

SPACER-PIVOT

$16.99

$

Usually ships in 3-6 days

0

23

Toro 328-23

SCREW-HH

$16.99

$

Usually ships in 3-6 days

0

24

Toro 130-1057

PIN-TENSIONER

$30.99

$

Usually ships in 3-6 days

0

25

Toro 120-7252

NUT-LOCK

$3.49

$

Usually ships in 3-6 days

0

26

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

29

Toro 3256-39

WASHER-FLAT

$1.99

$

In Stock, only 1 left!

0

30

Toro 32121-24

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

31

Toro 99-2659

WASHER

$12.99

$

Usually ships in 3-6 days

0

32

Toro 328-25

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

33

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

34

Toro 98-4799

SPACER

$8.49

$

In Stock, Qty 9

0

35

Toro 131-9241

BLOCK-TRACK

$71.99

$

Usually ships in 3-6 days

0

36

Toro 120-4654

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

37

Toro 138-5231

WHEEL ASM

$378.99

$

Usually ships in 3-6 days

0

37:2

Toro 138-0547

BEARING-BALL

$20.99

$

In Stock, only 4 left!

0

37:3

Toro 130-7564

SPACER-WHEEL

$16.99

$

In Stock, only 2 left!

0

38

Toro 138-1368

WHEEL ASM
(Superseded to 138-5231)

$378.99

$

Usually ships in 3-6 days

0

38:2

Toro 138-1367

SPACER-WHEEL, ROAD

$

$

Currently unavailable

38:3

Toro 138-1369

BEARING-BALL
(Superseded to 138-5231)

$378.99

$

Usually ships in 3-6 days

0

39

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 11

0

40

Toro 115-4845

SCREW-HH, TAP

$5.49

$

In Stock, only 4 left!

0

41

Toro 127-9567-03

PLATE-MOUNTING

$85.99

$

Usually ships in 3-6 days

0

42

Toro 107-9319

NUT-HEX

$48.99

$

In Stock, only 2 left!

0
