22328 (TX 1000) - Toro Dingo Wide Track Compact Utility Loader (SN: 401321135 - 401999999) TRACK, DRIVE WHEEL AND TENSIONER ASSEMBLY Parts Diagram

Dingo Wide Track Compact Utility Loader

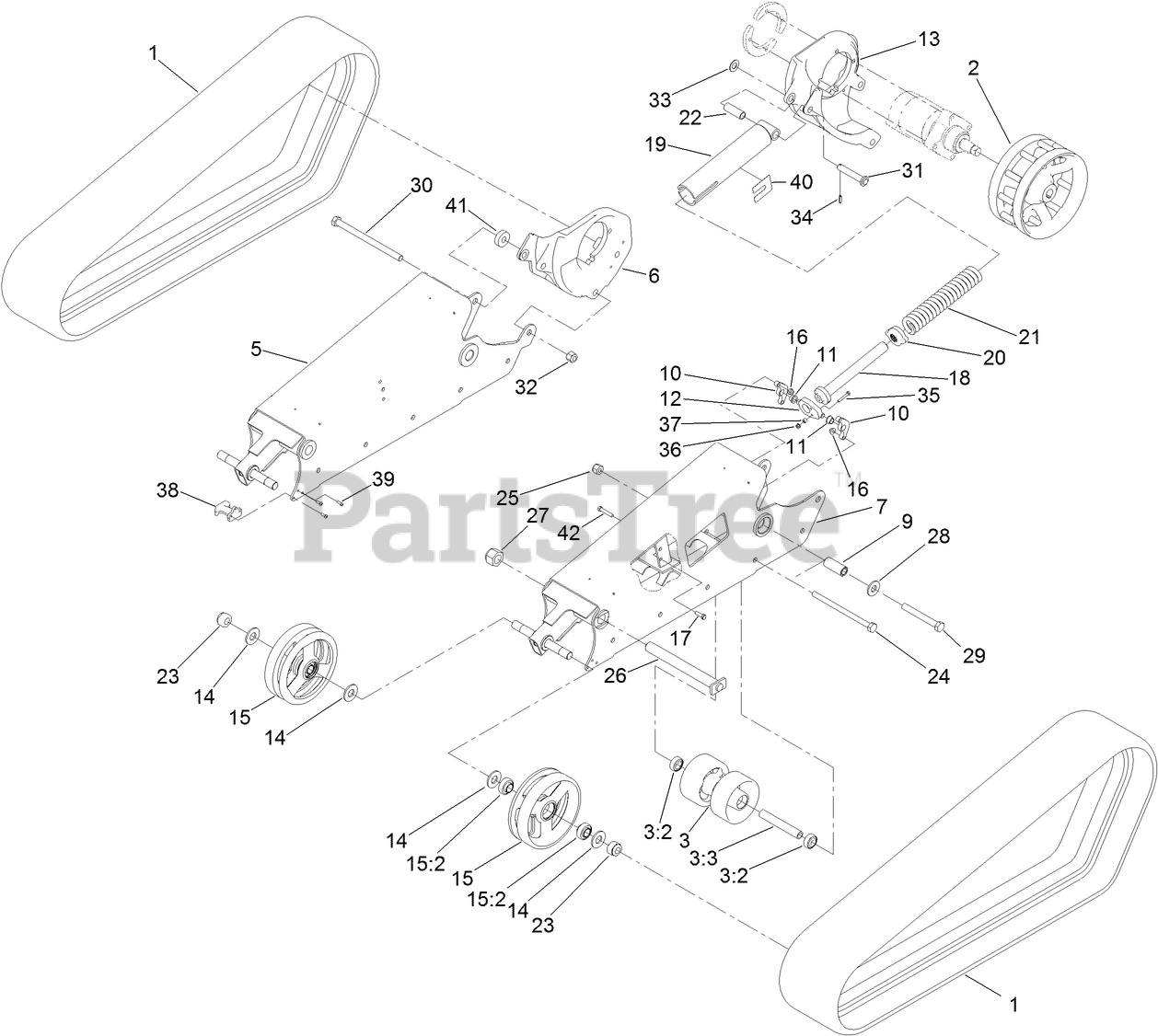

TRACK, DRIVE WHEEL AND TENSIONER ASSEMBLY Parts Diagram

  • Title

1

Toro 121-4591

TRACK-WIDE
(Superseded to 136-5845)

$1647.99

$

Usually ships in 3-6 days

0

2

Toro 130-2793-03

WHEEL-DRIVE
(Superseded to 144-7352)

$803.99

$

Usually ships in 3-6 days

0

3

Toro 133-8589

WHEEL ASM
(Superseded to 138-1417)

$597.99

$

In Stock, only 1 left!

0

3:2

Toro 120-5378

BEARING-BALL

$17.99

$

In Stock, Qty 20+

0

3:3

Toro 133-8588

SPACER-WHEEL, ROAD

$

$

Currently unavailable

5

Toro 133-8592-01

RH TRACK GUIDE ASM

$2767.99

$

Usually ships in 3-6 days

0

6

Toro 127-9596-03

MOUNT-MOTOR, RH

$1041.99

$

Usually ships in 3-6 days

0

7

Toro 132-8609-01

LH TRACK GUIDE ASM

$2767.99

$

Usually ships in 3-6 days

0

9

Toro 130-1069

SPACER

$35.99

$

Usually ships in 3-6 days

0

10

Toro 127-9566-03

PLATE-MOUNT, PIVOT
(Superseded to 127-9566)

$43.99

$

In Stock, only 1 left!

0

11

Toro 65-8770

BUSHING-BELLCRANK

$6.99

$

In Stock, only 3 left!

0

12

Toro 132-8620

PLATE-PIVOT

$91.99

$

In Stock, only 2 left!

0

13

Toro 127-9595-03

MOUNT-MOTOR, LH

$1032.99

$

Usually ships in 3-6 days

0

14

Toro 115-0722

WASHER-PLAIN

$7.99

$

In Stock, only 4 left!

0

15

Toro 133-8626

TENSIONER-WHEEL

$614.99

$

Usually ships in 3-6 days

0

15:2

Toro 104-6129

Bearing-Ball

$152.99

$

In Stock, only 2 left!

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

18

Toro 127-9563

BOLT-TENSIONER

$277.99

$

Usually ships in 3-6 days

0

19

Toro 127-9559-03

PIVOT-TENSIONER

$241.99

$

Usually ships in 3-6 days

0

20

Toro 108-4664

BLOCK-TENSIONER

$145.99

$

In Stock, only 1 left!

0

21

Toro 95-3624

SPRING-COMPRESSION

$203.99

$

In Stock, only 2 left!

0

22

Toro 127-9565

SPACER-PIVOT

$16.99

$

Usually ships in 3-6 days

0

23

Toro 104-2024

NUT-HEX, NI

$22.99

$

In Stock, only 2 left!

0

24

Toro 133-8579

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

25

Toro 3296-24

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

26

Toro 133-8577

PIN-TRACK

$91.99

$

Usually ships in 3-6 days

0

27

Toro 125-0399

NUT-HH

$22.99

$

In Stock, only 2 left!

0

28

Toro 99-2659

WASHER

$12.99

$

Usually ships in 3-6 days

0

29

Toro AU426-1296

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

30

Toro 133-8580

SCREW-HH

$29.99

$

Usually ships in 3-6 days

0

31

Toro 130-1057

PIN-TENSIONER

$30.99

$

Usually ships in 3-6 days

0

32

Toro 3296-51

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

33

Toro 3256-39

WASHER-FLAT

$1.99

$

In Stock, only 1 left!

0

34

Toro 32121-24

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

35

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

37

Toro 98-4799

SPACER

$8.49

$

In Stock, Qty 9

0

38

Toro 133-8581

TRACK-GUIDE

$57.99

$

Usually ships in 3-6 days

0

39

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 8

0

40

Toro 136-5750

DECAL-INDICATOR, TENSIONER

$8.49

$

Usually ships in 3-6 days

0

41

Toro 133-8574

SPACER-WHEEL, MOUNT

$17.99

$

Usually ships in 3-6 days

0

42

Toro 3211-9

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0
