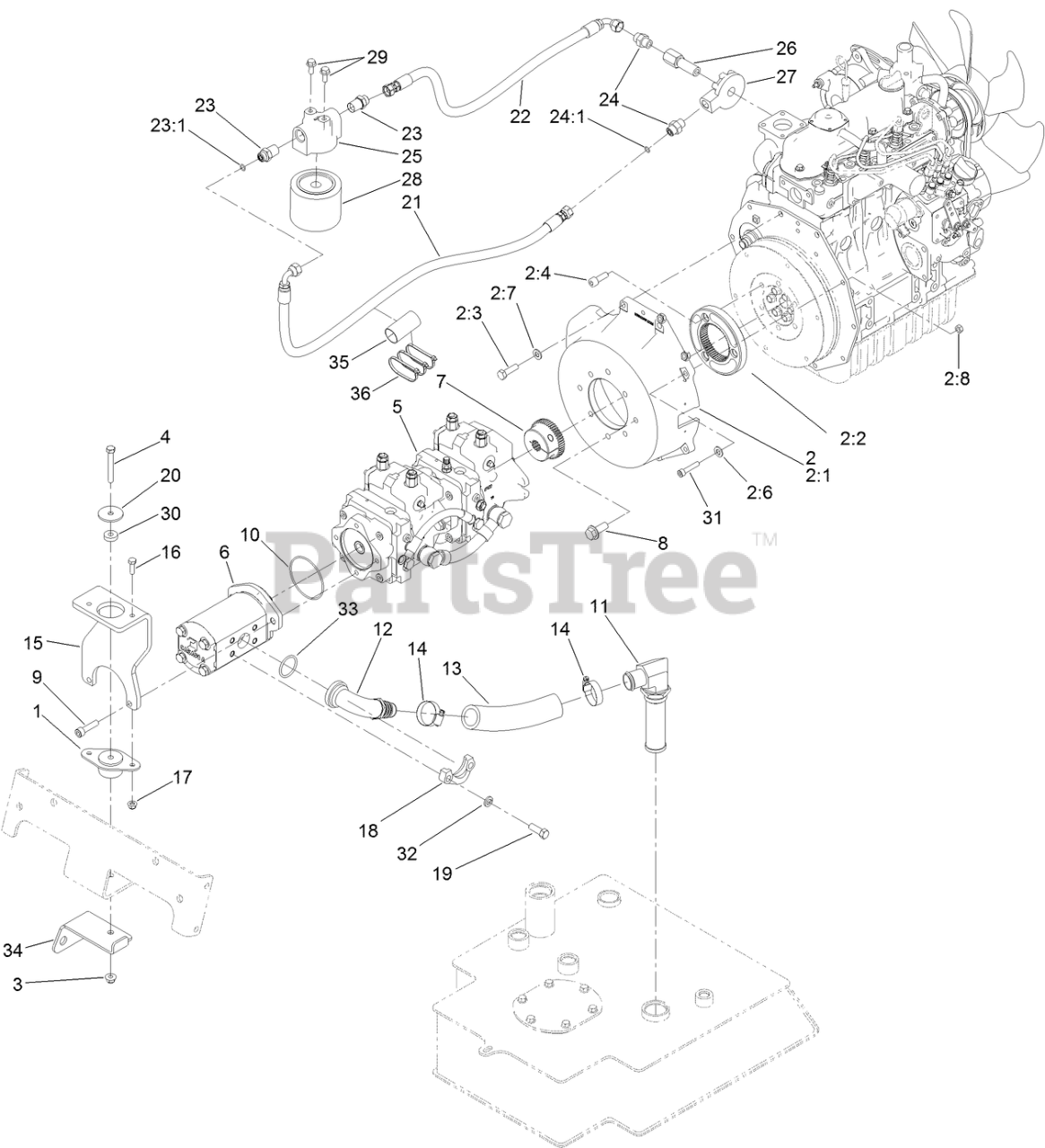

22328 (TX 1000) - Toro Dingo Wide Track Compact Utility Loader (SN: 405800000 - 406724947) Engine Mount and Muffler Assembly 2 Parts Diagram

Dingo Wide Track Compact Utility Loader

Engine Mount and Muffler Assembly 2 Parts Diagram

  • Title

1

Toro 121-9076

MOUNT-ENGINE

$48.99

$

In Stock, only 3 left!

0

2

Toro 130-7728

MOUNT-PUMP
(Superseded to 138-0822)

$859.99

$

Usually ships in 3-6 days

0

2:1

Toro 130-7724

HOUSING-PUMP MOUNT

$729.99

$

Usually ships in 3-6 days

0

2:2

Toro 125-1179

FLANGE-COUPLER

$146.99

$

In Stock, only 1 left!

0

2:3

Toro 56-2140

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

2:4

Toro 108-1420

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

2:6

Toro 115-7370

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

2:7

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

2:8

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 17

0

5

Toro 138-0767

PUMP-TANDEM

$9582.99

$

Usually ships in 3-6 days

0

6

Toro 130-7731

PUMP-GEAR

$1725.99

$

Usually ships in 3-6 days

0

7

Toro 130-7725

HUB-PUMP

$164.99

$

In Stock, only 3 left!

0

8

Toro 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0

9

Toro 09718

SCREW-SH

$

$

Currently unavailable

10

Toro 237-161

O-RING

$9.49

$

In Stock, Qty 8

0

11

Toro 130-7582

STRAINER-SUCTION
(Superseded to 145-0622)

$170.99

$

Usually ships in 3-6 days

0

12

Toro 112-7374

FITTING

$246.99

$

Usually ships in 3-6 days

0

13

Toro 130-7561

HOSE-SUCTION

$49.99

$

Usually ships in 3-6 days

0

14

Toro 2412-111

CLAMP

$5.49

$

Usually ships in 3-6 days

0

15

Toro 138-0231-03

BRACKET-SUPPORT, PUMP

$81.99

$

Usually ships in 3-6 days

0

16

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 4 left!

0

18

Toro 136-5794

FLANGE

$23.99

$

Usually ships in 3-6 days

0

19

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 63-7400

WASHER-REBOUND

$3.49

$

In Stock, only 4 left!

0

21

Toro 139-0793

HYD HOSE ASM

$78.99

$

Usually ships in 3-6 days

0

22

Toro 139-0794

HYD HOSE ASM

$73.99

$

Usually ships in 3-6 days

0

23

Toro 136-5838

FITTING-HYD

$76.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 2 left!

0

24

Toro 130-7716

FITTING-HYD

$15.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 2 left!

0

25

Toro 130-7588

BASE-FILTER

$191.99

$

Usually ships in 3-6 days

0

26

Toro 130-7587

PIPE-JOINT

$51.99

$

Usually ships in 3-6 days

0

27

Toro 130-7586

BASE-FILTER

$204.99

$

Usually ships in 3-6 days

0

28

Toro 104-5169

FILTER-OIL

$19.99

$

In Stock, only 3 left!

0

29

Toro 33104-020

SCREW-HHF

$3.99

$

In Stock, only 4 left!

0

30

Toro 62-6660

SPACER

$0.99

$

In Stock, Qty 8

0

31

Toro 131-0197

SCREW-HSH

$3.99

$

Usually ships in 3-6 days

0

32

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

33

Toro 115-5420

O-RING

$15.99

$

Usually ships in 3-6 days

0

34

Toro 138-0790-0P

BRACKET-BULKHEAD

$21.99

$

Usually ships in 3-6 days

0

35

Toro AU112950

PROTECTOR-HOSE

$31.99

$

Usually ships in 3-6 days

0

36

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0
