22328 (TX 1000) - Toro Dingo Wide Track Compact Utility Loader (SN: 409985647 - 410499999) Platform Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

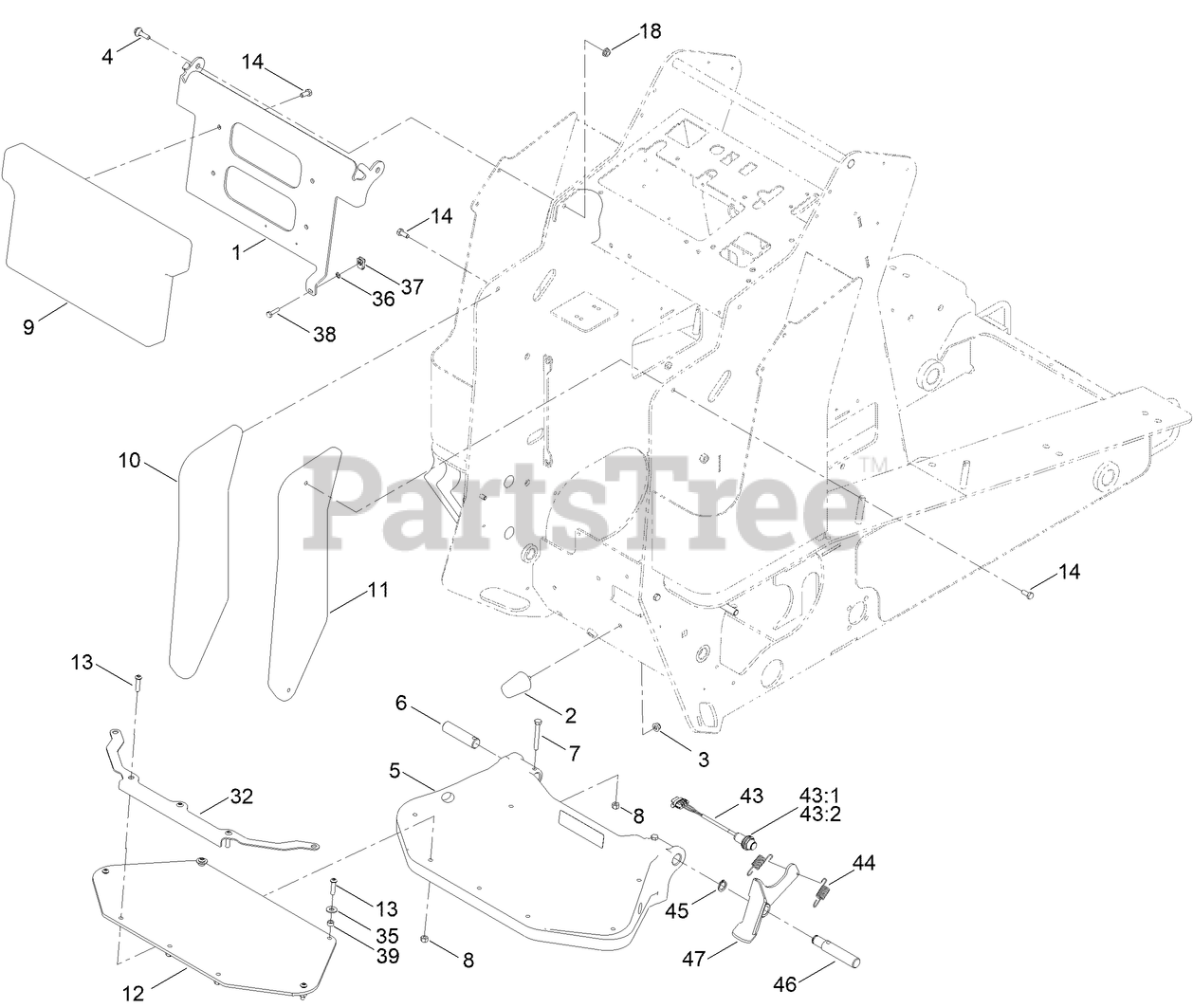

Platform Assembly Parts Diagram

  • Title

1

Toro 132-6026-03

HINGE-PAD

$142.99

$

Usually ships in 3-6 days

0

2

Toro 110-5070

BUMPER

$13.99

$

In Stock, only 2 left!

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 108-3744

SCREW-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

5

Toro 131-9301

PLATFORM

$597.99

$

Usually ships in 3-6 days

0

6

Toro 125-3749

PIN-PIVOT

$32.99

$

Usually ships in 3-6 days

0

7

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 130-1042

CUSHION-PAD

$285.99

$

In Stock, only 1 left!

0

10

Toro 130-1043

CUSHION-PAD

$168.99

$

Usually ships in 3-6 days

0

11

Toro 130-1044

CUSHION-PAD

$168.99

$

In Stock, only 1 left!

0

12

Toro 130-1054

PAD-FOOT

$89.99

$

Usually ships in 3-6 days

0

13

Toro 109-4872

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 130-5313-03

PLATE-CLAMP
(Superseded to 144-7371-03)

$31.99

$

Usually ships in 3-6 days

0

35

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0

37

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

38

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 85-9120

SPACER-PIVOT, TILT

$5.49

$

Usually ships in 3-6 days

0

43

Toro 115-5300

PROXIMITY SWITCH ASM

$148.99

$

In Stock, only 4 left!

0

43:1

Toro 117-3207

NUT-HEX

$56.99

$

Usually ships in 3-6 days

0

43:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$10.99

$

Usually ships in 3-6 days

0

44

Toro 137-6189

SPRING-EXTENSION

$3.49

$

In Stock, only 1 left!

0

45

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

46

Toro 144-0754

PIN-PLATFORM

$23.99

$

Usually ships in 3-6 days

0

47

Toro 145-3759-03

PEDAL ASM

$90.99

$

Usually ships in 3-6 days

0
