22330 (TX 413) - Toro Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005) TRACTION HYDRAULIC ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

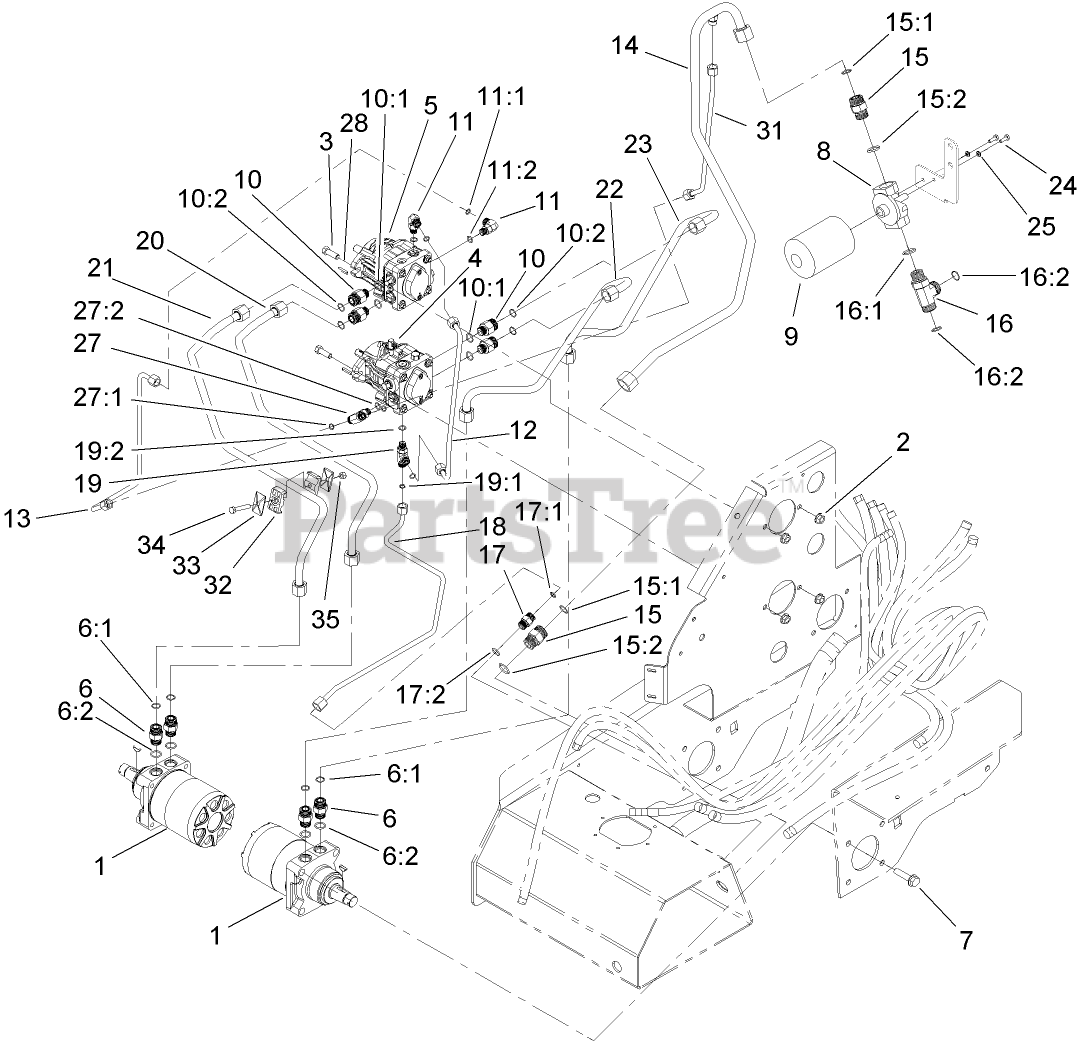

TRACTION HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8470

HYD WHEEL MOTOR ASM

$2933.99

$

Usually ships in 3-6 days

0

2

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

3

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 106-9470

PUMP-HYD

$

$

Not available

5

Toro 106-9471

PUMP-HYD

$2181.99

$

Usually ships in 3-6 days

0

6

Toro 340-7

FITTING-STRAIGHT

$15.99

$

In Stock, Qty 13

0

6:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

6:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

7

Toro 3234-27

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

8

Toro 92-5821

HEAD-FILTER

$211.99

$

Usually ships in 3-6 days

0

9

Toro 54-0110

FILTER-OIL, TRANSMISSION

$16.99

$

In Stock, Qty 11

0

10

Toro 340-155

FITTING-STR

$32.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

10:2

Toro 237-151

O-RING

$2.49

$

Usually ships in 3-6 days

0

11

Toro 340-77

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

11:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

12

Toro 106-9445

HYD TUBE ASM

$

$

Not available

13

Toro 106-9439

HYD TUBE ASM

$

$

Not available

14

Toro 106-9442

HYD TUBE ASM

$

$

Not available

15

Toro 340-9

FITTING-STR

$103.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

15:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

16

Toro 340-148

FITTING-TEE

$286.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

16:2

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

17

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

17:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

17:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

0

18

Toro 106-9440

HYD TUBE ASM

$

$

Not available

19

Toro 340-86

FITTING-TEE

$50.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

19:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

20

Toro 106-9429

HYD TUBE ASM

$181.99

$

Usually ships in 3-6 days

0

21

Toro 106-9428

HYD TUBE ASM

$181.99

$

Usually ships in 3-6 days

0

22

Toro 106-9423

HYD TUBE ASM

$

$

Not available

23

Toro 106-9424

HYD TUBE ASM

$177.99

$

Usually ships in 3-6 days

0

24

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 340-94

ADAPTER

$52.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

27:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

28

Toro 80-6090

KEY-PUMP

$10.99

$

In Stock, only 2 left!

0

31

Toro 106-9441

HYD TUBE ASM

$

$

Not available

32

Toro 56-7971

CLAMP-TUBE

$27.99

$

Usually ships in 3-6 days

0

33

Toro 69-9760

COVERPLATE

$7.99

$

Usually ships in 3-6 days

0

34

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
