223310x24D - Briggs & Stratton 22" Walk-Behind Mower (2005) (Meijer) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

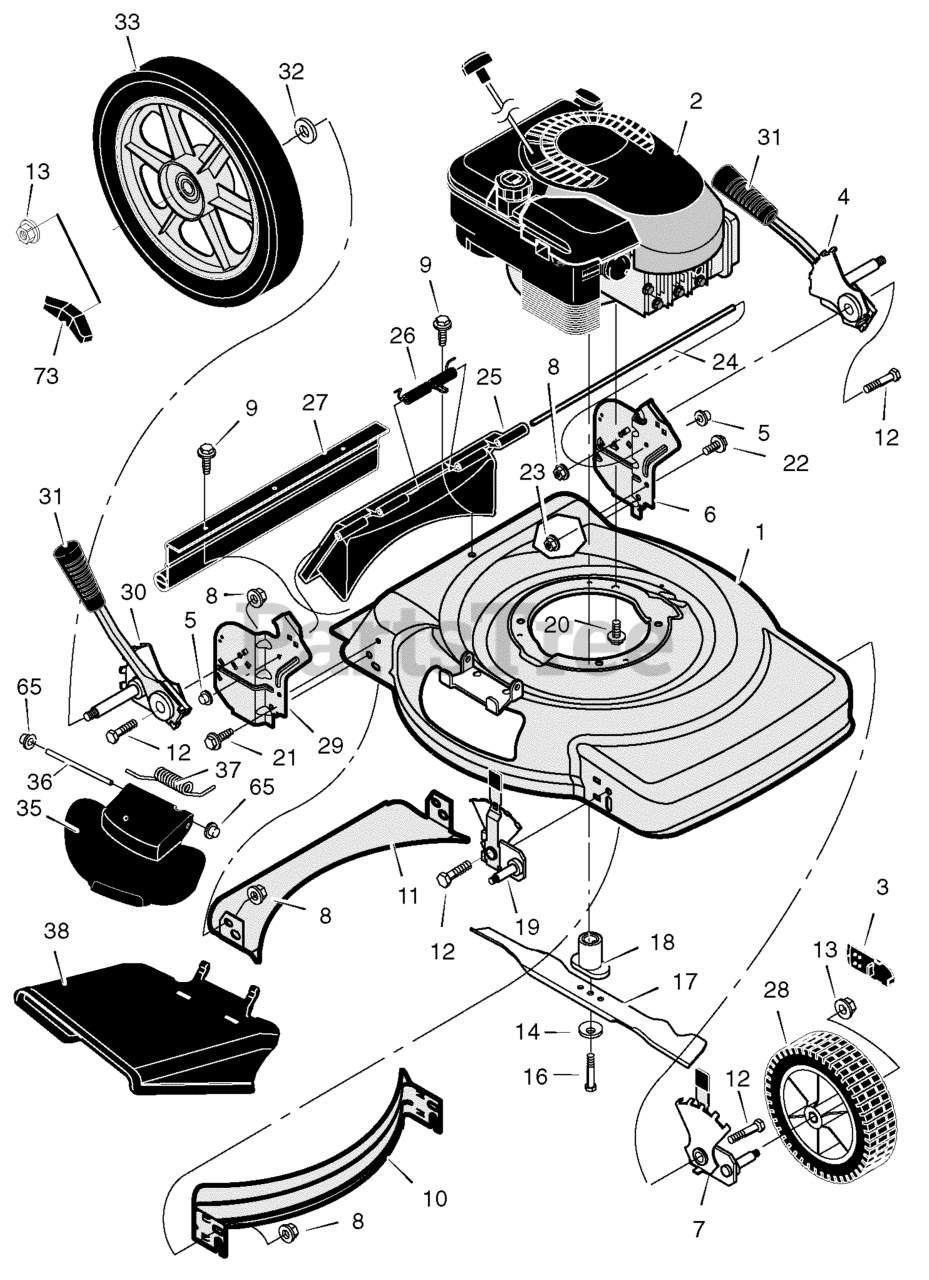

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 7501004

Housing

$

$

Currently unavailable

2

Engine*

$

$

Not available

3

Murray 43615

Cap, Hub (Optional)

$4.49

$

Usually ships in 2-12 days

0

4

Murray 1102169

Adjuster, Left Rear Height

$

$

Currently unavailable

5

Murray 028X49

Push On Cap

$3.99

$

In Stock, Qty 13

0

6

Murray 1102123E700

Bracket, Left Handle

$

$

Currently unavailable

7

Murray 1102105

Adjuster, Left Front Height

$

$

Currently unavailable

8

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 26X245

Screw

$4.49

$

In Stock, Qty 6

0

10

Murray 1102244E700

Baffle, Front

$

$

Currently unavailable

11

Murray 672916E700

Baffle, Rear

$

$

Currently unavailable

12

Murray 01X108

Bolt

$3.49

$

Usually ships in 2-12 days

0

13

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 1101989

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

16

Murray 01X153

Bolt

$4.49

$

Usually ships in 2-12 days

0

17

Murray 1101823E701

Blade

$19.99

$

In Stock, Qty 6

0

18

Murray 1101824

Adapter, Blade

$8.99

$

Usually ships in 2-12 days

0

19

Murray 1102104

Adjuster, Right Front Height

$

$

Currently unavailable

20

Murray 0025X6

Bolt, Engine
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

21

Murray 001X85

Bolt
(Superseded to 001X85MA)

$3.99

$

Usually ships in 2-12 days

0

22

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

23

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X21

Rod, Pivot

Note: (These parts are included with Ref. 25.)

$7.99

$

Usually ships in 2-12 days

0

25

Murray 1101070

Door, Rear (Black)

$

$

Not available

26

Murray 166X44

Spring

Note: (These parts are included with Ref. 25.)

$14.99

$

In Stock, only 3 left!

0

27

Murray 672684

Guard, Rear

$18.99

$

In Stock, only 2 left!

0

28

Murray 71132

Wheel & Tire

$36.99

$

In Stock, only 2 left!

0

29

Murray 1102122E700

Bracket, Right Handle

$

$

Currently unavailable

30

Murray 1102168

Adjuster, Right Rear Height

$

$

Currently unavailable

31

Murray 71297

Grip

$6.49

$

In Stock, only 1 left!

0

32

Murray 017X91 Z

Washer

$

$

Currently unavailable

33

Murray 71132

Wheel, Rear

$36.99

$

In Stock, only 2 left!

0

35

Murray 1101098

Cover, Mulch (Black)

$33.99

$

Usually ships in 2-12 days

0

36

Murray 215X19 Z

Rod, Pivot

$

$

Currently unavailable

37

Murray 166X38

Spring, Torsion

$

$

Not available

38

Murray 1101097

Deflector, Chute (Black)

$39.99

$

In Stock, only 1 left!

0

65

Murray 028X42

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

73

Murray 672449

Knob (Optional)

Note: (Optional)

$5.99

$

In Stock, only 2 left!

0

--

Murray F-050431L

Instruction Book

$

$

Currently unavailable
