223310x83A - Briggs & Stratton 22" Walk-Behind Mower (2004) Handle & Bag Assembly Parts Diagram

22" Walk-Behind Mower

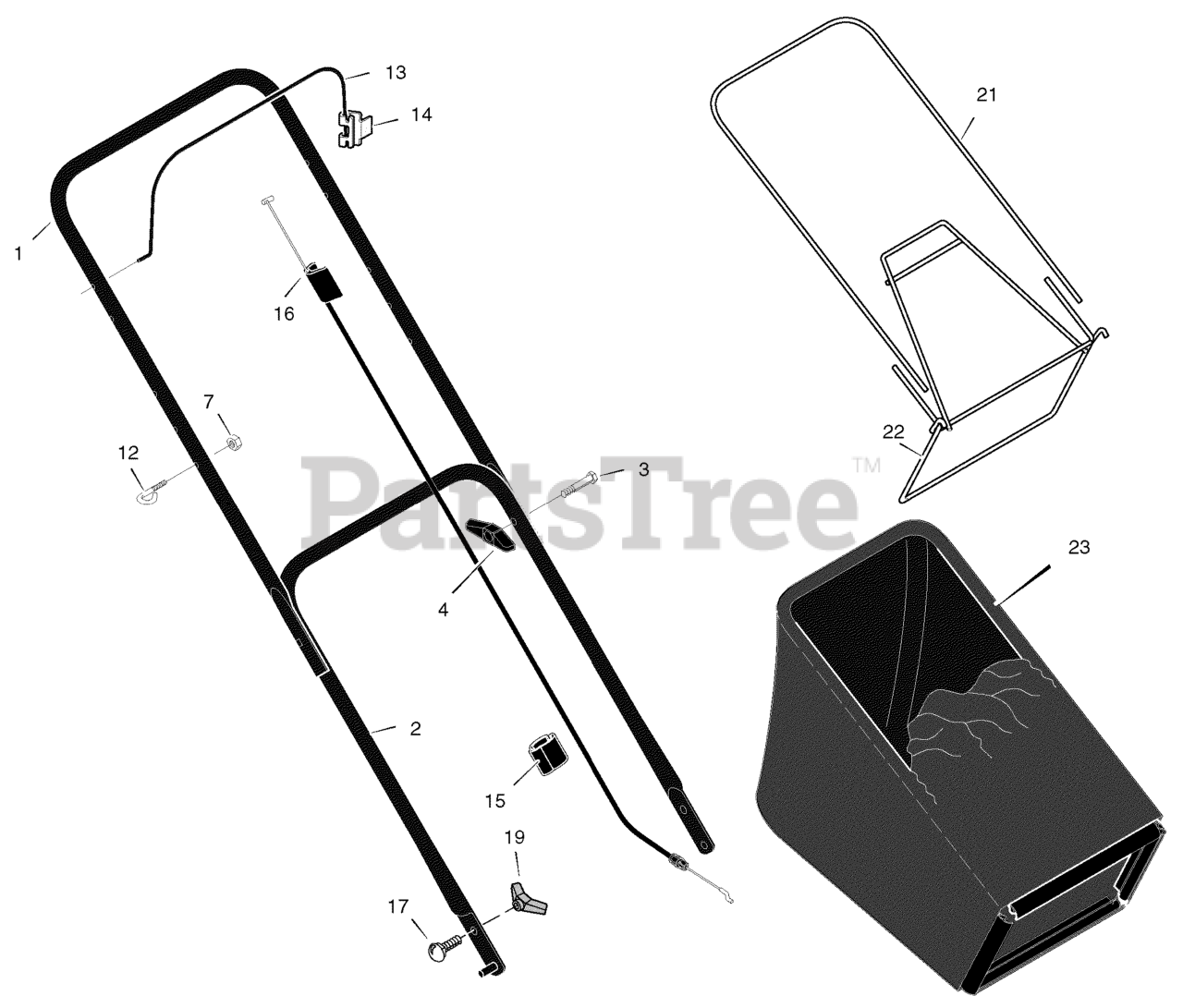

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 1101556E701

Handle, Upper (Black)

$122.99

$

Usually ships in 2-12 days

0

1

Murray 1101556E724

Handle, Upper (Gray)

$

$

Currently unavailable

2

Murray 672906E701

Handle, Lower (Black)

$151.99

$

Usually ships in 2-12 days

0

2

Murray 672906E724

Handle, Lower (Gray)

$

$

Not available

3

Murray 002X77

Bolt

$3.99

$

In Stock, Qty 11

0

4

Murray 71294

Knob, Plastic

$8.49

$

In Stock, only 4 left!

0

7

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

12

Murray 71530

Guide, Rope

$6.49

$

Usually ships in 2-12 days

0

13

Murray 043653E701

Lever, Engine Stop

$36.99

$

Usually ships in 2-12 days

0

14

Murray 1101454

Bracket, Stop Lever

$21.99

$

In Stock, only 2 left!

0

15

Murray 1101353

Clip, Cable

$6.49

$

In Stock, only 1 left!

0

16

Murray 1101363

Engine Stop Cable

$19.99

$

Usually ships in 2-12 days

0

17

Murray 002X81

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

19

Murray 71495

Knob, Plastic

$

$

Not available

21

Murray 1101075

Frame, Top

$

$

Not available

22

Murray 1101074

Frame Assembly

$76.99

$

In Stock, only 1 left!

0

23

Murray 1102019

Bag, Cloth

$200.99

$

Usually ships in 2-12 days

0
