223310x83A - Briggs & Stratton 22" Walk-Behind Mower (2004) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

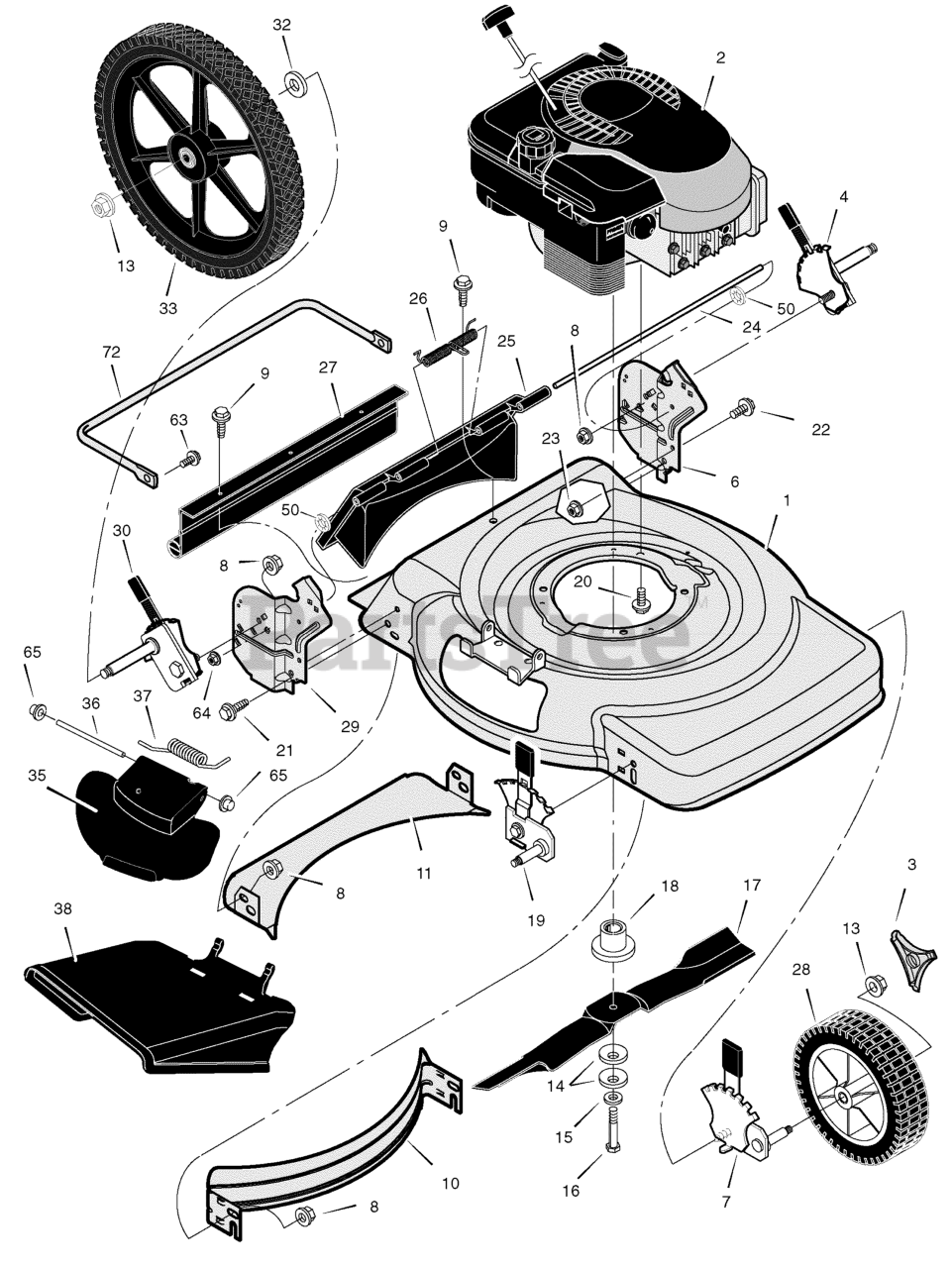

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 7501004

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

3

Murray 672446

Cap, Hub (Gray)

$

$

Not available

4

Murray 672919

Adjuster, Left Rear Height

$19.99

$

Usually ships in 2-12 days

0

6

Murray 1101245E700

Bracket, Left Handle

$

$

Not available

7

Murray 672601

Adjuster, Left Front Height

$87.99

$

Usually ships in 2-12 days

0

8

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 26X245

Screw

$4.49

$

In Stock, Qty 6

0

10

Murray 672915E701

Baffle, Front

Note: (Included with Ref. No. 1)

$74.99

$

Usually ships in 2-12 days

0

11

Murray 672916E701

Baffle, Rear *

$43.99

$

In Stock, only 2 left!

0

13

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 017X137

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

Murray 17X124

Washer

$

$

Not available

16

Murray 01X142

Bolt

$8.49

$

In Stock, Qty 7

0

17

Murray 1101120E701

Blade

$24.99

$

In Stock, only 2 left!

0

18

Murray 71056

Adapter, Blade

$

$

Not available

19

Murray 672600

Adjuster, Right Front Height

$82.99

$

In Stock, only 1 left!

0

20

Murray 0025X6

Bolt, Engine
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

21

Murray 001X85

Bolt
(Superseded to 001X85MA)

$3.99

$

Usually ships in 2-12 days

0

22

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

23

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X21

Rod, Pivot

Note: (Included with Ref. No. 27.)

$7.99

$

Usually ships in 2-12 days

0

25

Murray 1101070

Door, Rear (Black)

$

$

Not available

25

Murray 1101071

Door, Rear (Gray)

$39.99

$

Usually ships in 2-12 days

0

26

Murray 166X44

Spring

Note: (Included with Ref. No. 27.)

$14.99

$

In Stock, only 3 left!

0

27

Murray 672684

Guard, Rear

$18.99

$

In Stock, only 2 left!

0

28

Murray 1101114

Wheel & Tire (Gray)

$39.99

$

In Stock, only 4 left!

0

29

Murray 1101244E700

Bracket, Right Handle

$8.49

$

Usually ships in 2-12 days

0

30

Murray 672918

Adjuster, Right Rear Height

$21.99

$

Usually ships in 2-12 days

0

32

Murray 017X91

Washer
(Superseded to 017X91MA)

$5.49

$

In Stock, only 1 left!

0

33

Murray 672801

Wheel, Rear (Gray)

$101.99

$

Usually ships in 2-12 days

0

35

Murray 1101098

Cover, Mulch (Black)

$33.99

$

In Stock, only 1 left!

0

35

Murray 672920

Cover, Mulch (Gray)

$24.99

$

Usually ships in 2-12 days

0

36

Murray 215X19 Z

Rod, Pivot

Note: (Included with Ref. No. 35)

$

$

Currently unavailable

37

Murray 166X38

Spring, Torsion

Note: (Included with Ref. No. 35)

$

$

Not available

38

Murray 1101097

Deflector, Chute (Black)

$39.99

$

In Stock, only 1 left!

0

38

Murray 672917

Deflector, Chute (Gray)

$35.99

$

In Stock, only 1 left!

0

50

Murray 028X49

Retainer, Push

Note: (Included with Ref. No. 27.)

$3.99

$

In Stock, Qty 13

0

63

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

64

Murray 015X79

Nut

$5.49

$

In Stock, Qty 20+

0

65

Murray 028X42

Push On Cap

Note: (Included with Ref. No. 35)

$3.99

$

Usually ships in 2-12 days

0

72

Murray 1101008E701

Brace

$

$

Not available

--

Murray F-040433L

Instruction Book

$

$

Currently unavailable
