22333 (TX 525) - Toro Dingo Compact Utility Loader (SN: 270000001 - 270000400) (2007) HOOD ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

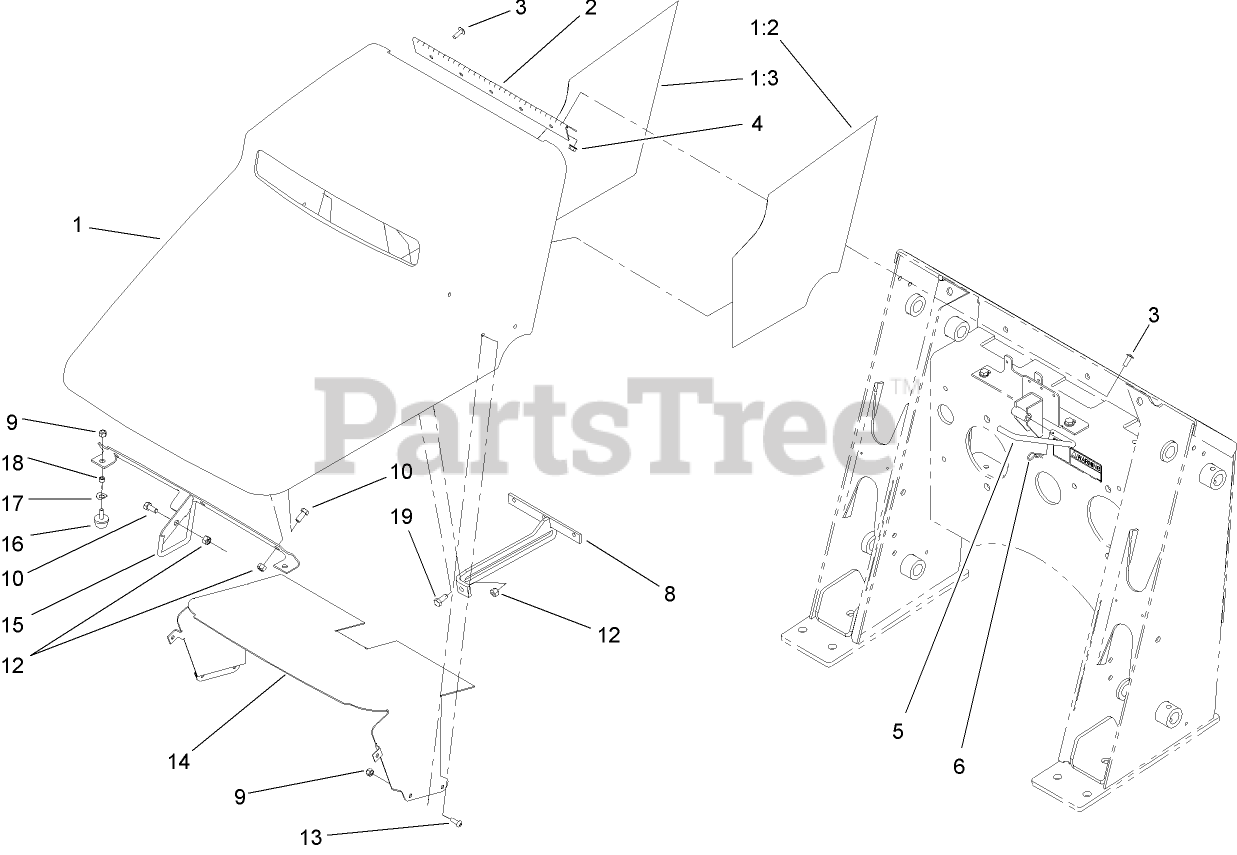

HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 112-2460

HOOD ASM
(Superseded to 119-2194)

$1196.99

$

Usually ships in 3-6 days

0

1:2

Toro 112-2464

FOILTAPE-LH

$75.99

$

Usually ships in 3-6 days

0

1:3

Toro 112-2465

FOILTAPE-RH

$75.99

$

Usually ships in 3-6 days

0

2

Toro 100-1284

HINGE-HOOD

$85.99

$

In Stock, only 2 left!

0

3

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

4

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Toro 108-6357

ROD-SUPPORT, HOOD

$75.99

$

In Stock, only 1 left!

0

6

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

8

Toro 112-2448-03

PROP ROD BRACKET ASM

$95.99

$

Usually ships in 3-6 days

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

14

Toro 108-6286

BAFFLE-HOOD

$239.99

$

Usually ships in 3-6 days

0

15

Toro 108-6287-03

ROD LATCH ASM

$150.99

$

Usually ships in 3-6 days

0

16

Toro 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

17

Toro 3290-301

WASHER-SPRING
(Superseded to 121-4605)

$4.99

$

In Stock, only 1 left!

0

18

Toro 106-9308

SPACER

$6.49

$

Usually ships in 3-6 days

0

19

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
