22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 313000001 - 313999999) (2013) HYDRAULIC VALVE ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

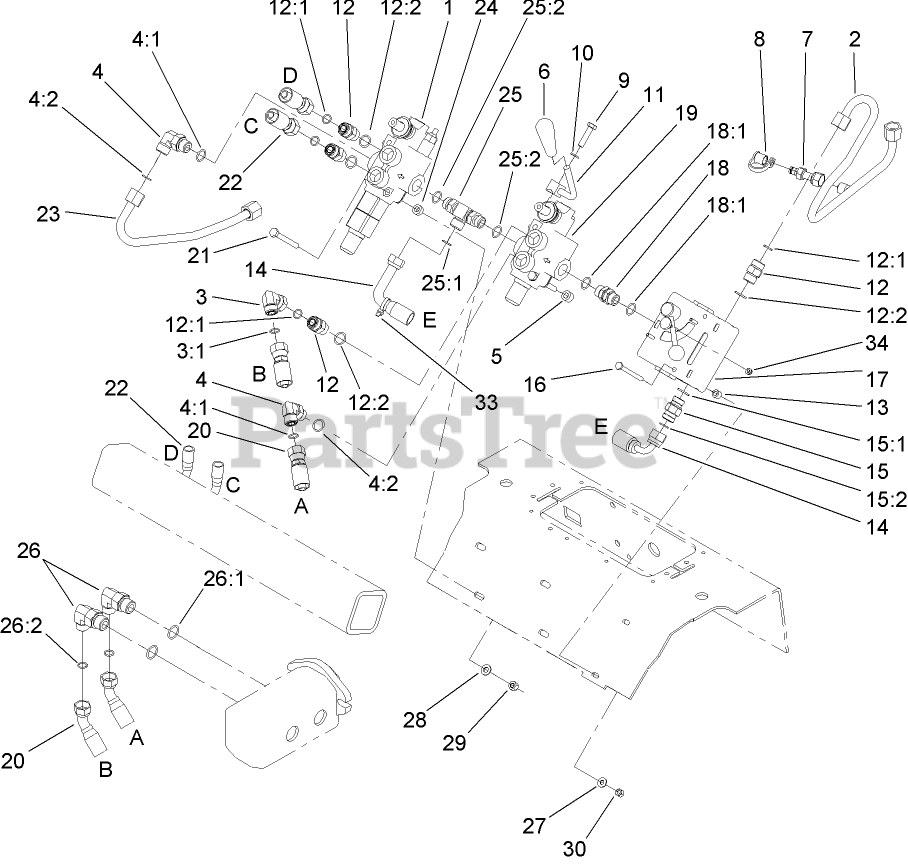

HYDRAULIC VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-3077

VALVE-HYD, AUXILIARY

$1841.99

$

Usually ships in 3-6 days

0

2

Toro 105-7878

TUBE-HYD

$212.99

$

Usually ships in 3-6 days

0

3

Toro 94-6031

FITTING-HYD

$77.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

4

Toro 340-98

FITTING-ELBOW-90 DEG

$32.99

$

In Stock, only 1 left!

0

4:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

4:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

5

Toro 98-4695

SPACER

$7.99

$

Usually ships in 3-6 days

0

6

Toro 98-0152

KNOB-TAPERED

$25.99

$

Usually ships in 3-6 days

0

7

Toro 86-5480

NIPPLE-TEST

$75.99

$

Usually ships in 3-6 days

0

8

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

9

Toro 33114-035

SCREW-HH

$4.99

$

In Stock, only 3 left!

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 108-9709-03

LEVER-CONTROL

$98.99

$

Usually ships in 3-6 days

0

12

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

12:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

13

Toro 98-4799

SPACER

$7.49

$

In Stock, Qty 8

0

14

Toro 100-2245

HOSE-HYD

$236.99

$

Usually ships in 3-6 days

0

15

Toro 98-4735

VALVE-CHECK, HYD

$290.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

15:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

16

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

17

Toro 104-4221

HYD VALVE KIT

$914.99

$

Usually ships in 3-6 days

0

18

Toro 95-3209

FITTING-THREAD, STRAIGHT

$35.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

19

Toro 99-3072

VALVE-SELECTOR, HYD

$997.99

$

Usually ships in 3-6 days

0

20

Toro 100-1730

HOSE-PUMP, HYD

$286.99

$

Usually ships in 3-6 days

0

21

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 19

0

22

Toro 100-8817

HOSE-HYD

$395.99

$

Usually ships in 3-6 days

0

23

Toro 105-7879

TUBE-HYD

$102.99

$

Usually ships in 3-6 days

0

24

Toro 100-2085

SPACER

$21.99

$

Usually ships in 3-6 days

0

25

Toro 98-9079

ADAPTER-TEE, ADJUSTABLE

$245.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

25:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

26

Toro 340-105

FITTING-ELBOW 90

$42.99

$

In Stock, only 2 left!

0

26:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

26:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

34

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0
