22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 314000001 - 314999999) (2014) DYNAMO COMPONENT ASSEMBLY NO. 100-2168 Parts Diagram

Dingo Compact Utility Loader

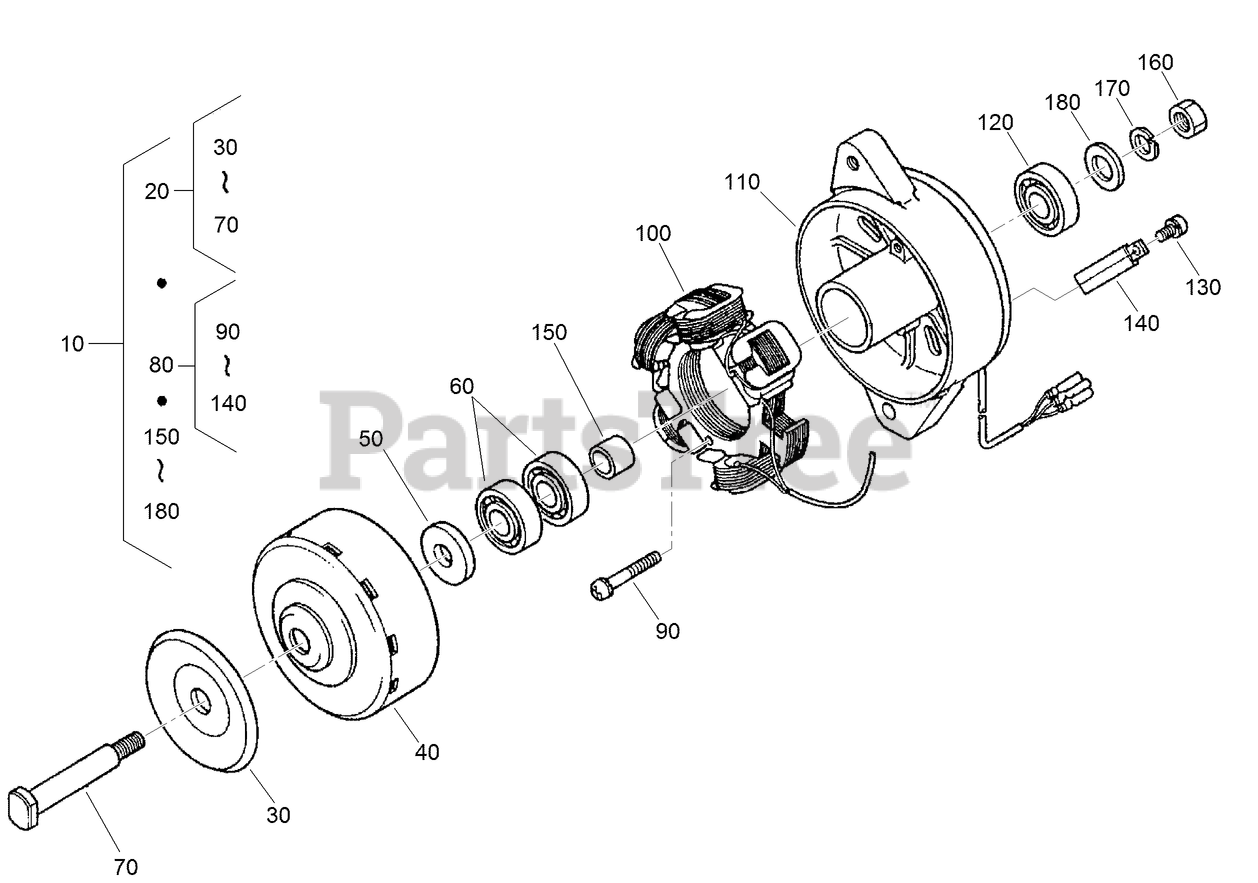

DYNAMO COMPONENT ASSEMBLY NO. 100-2168 Parts Diagram

  • Title

10

Toro 100-2168

DYNAMO ASM

$749.99

$

Usually ships in 3-6 days

0

20

Toro 130-1205

FLYWHEEL ASM

$663.99

$

Usually ships in 3-6 days

0

30

Toro 100-2228

PULLEY

$9.49

$

Usually ships in 3-6 days

0

40

Toro 130-1203

FLYWHEEL

$250.99

$

Usually ships in 3-6 days

0

50

Toro 100-2184

COLLAR

$

$

Not available

60

Toro 100-1756

BEARING-BALL

$22.99

$

Usually ships in 3-6 days

0

70

Toro 130-1207

SHAFT-FAN

$57.99

$

Usually ships in 3-6 days

0

80

Toro 130-1206

STATOR ASM

$274.99

$

Usually ships in 3-6 days

0

90

Toro 100-1848

SCREW-HEAD, ROUND

$

$

Not available

100

Toro 100-1865

STATOR

$293.99

$

Usually ships in 3-6 days

0

110

Toro 130-1204

PLATE

$136.99

$

Usually ships in 3-6 days

0

120

Toro 100-1756

BEARING-BALL

$22.99

$

Usually ships in 3-6 days

0

130

Toro 100-1868

SCREW-HEAD, ROUND

$

$

Not available

140

Toro 130-1191

CLAMP-CORD

$1.99

$

Usually ships in 3-6 days

0

150

Toro 100-1844

COLLAR

$

$

Not available

160

Toro 100-1847

NUT

$

$

Not available

170

Toro 100-1850

WASHER-SPRING

$

$

Not available

180

Toro 100-1849

WASHER-PLAIN

$

$

Not available
