22337 CP (320-D) - Toro Dingo Compact Utility Loader (SN: 315000001 - 315999999) (2015) FRAME ASSEMBLY Parts Diagram

Dingo Compact Utility Loader

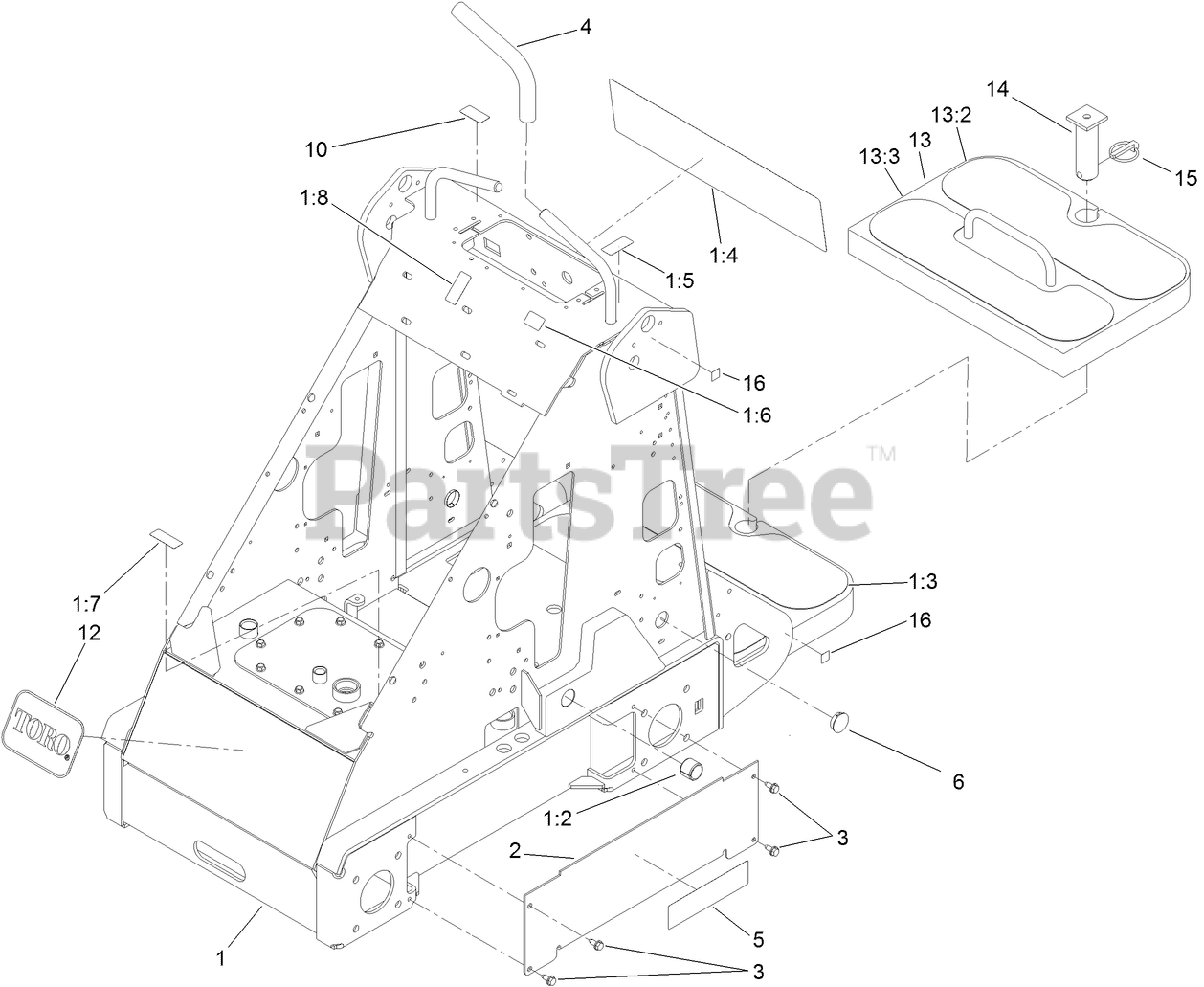

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 114-1753

FRAME ASM

$12481.99

$

Usually ships in 3-6 days

0

1:2

Toro 98-4871

BUSHING-TENSION

$25.99

$

In Stock, only 2 left!

0

1:3

Toro 98-9947

TREAD-FOOT

$37.99

$

Usually ships in 3-6 days

0

1:4

Toro 108-9733

DECAL-CONTROL PANEL, CE

$171.99

$

Usually ships in 3-6 days

0

1:5

Toro 98-8219

DECAL-THROTTLE

$19.99

$

In Stock, only 1 left!

0

1:6

Toro 100-1703

DECAL-LIMITER, SPEED

$33.99

$

Usually ships in 3-6 days

0

1:7

Toro 93-6686

DECAL-OIL, HYD

$9.99

$

Usually ships in 3-6 days

0

1:8

Toro 98-8235

DECAL-SELECTOR

$19.99

$

Usually ships in 3-6 days

0

2

Toro 106-8178-01

COVER-HOSE

$98.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

4

Toro 98-4845

GRIP-CUSHION

$17.99

$

Usually ships in 3-6 days

0

5

Toro 105-8429

Decal

$21.99

$

Usually ships in 3-6 days

0

6

Toro 94-1402

PLUG-HOLE

$2.49

$

Usually ships in 3-6 days

0

10

Toro 98-4387

DECAL-PROTECTION, EAR

$7.99

$

In Stock, Qty 8

0

12

Toro 62-5550

DECAL

$11.99

$

In Stock, only 2 left!

0

13

Toro 112-4947

COUNTERWEIGHT ASM

$2039.99

$

Usually ships in 3-6 days

0

13:2

Toro 98-9947

TREAD-FOOT

$37.99

$

Usually ships in 3-6 days

0

13:3

Toro 112-4948

TREAD

$37.99

$

Usually ships in 3-6 days

0

14

Toro 99-8638

PIN

$335.99

$

Usually ships in 3-6 days

0

15

Toro 99-9978

PIN-LYNCH

$12.99

$

Usually ships in 3-6 days

0

16

Toro 93-9084

DECAL-POINT, LIFT

$9.99

$

Usually ships in 3-6 days

0
