Toro 22342 HA (TX 427) - Toro Dingo Narrow Track Compact Utility Loader (SN: 400000000 - 411759999) Hydraulic Assembly Parts Lookup with Diagrams

1

Toro 104-2831

1 SPOOL VALVE ASM

$1853.99

$

Usually ships in 3-6 days

2

Toro 322-11

SCREW-HH

(Superseded to 120-9738) 

$1.99

$

In Stock, Qty 20+

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

4

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

5

Toro 72-4310

SWITCH-BALL

$109.99

$

Usually ships in 3-6 days

6

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

6:1

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

6:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 3 left!

7

Toro 340-153

FITTING-ELBOW, 90 DEG

$100.99

$

Usually ships in 3-6 days

7:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 3 left!

7:2

Toro 237-151

O-RING

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

8

Toro 104-5707

TUBE-HYD

$138.99

$

Usually ships in 3-6 days

9

Toro 106-9309

TUBE-HYD

$153.99

$

Usually ships in 3-6 days

10

Toro 340-161

FITTING-BULKHEAD

$111.99

$

Usually ships in 3-6 days

10:1

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

10:2

Toro 340-127

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

11

Toro 106-9310

TUBE-HYD

$166.99

$

Usually ships in 3-6 days

12

Toro 106-9311

TUBE-HYD

$163.99

$

Usually ships in 3-6 days

13

Toro 144-7354

2 SPOOL VALVE ASM

$2435.99

$

Usually ships in 3-6 days

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

16

Toro 51-2070

NUT

$0.99

$

Usually ships in 3-6 days

17

Toro 108-4675

SHAFT-HANDLE, LOADER

$86.99

$

Usually ships in 3-6 days

18

Toro 233-21

KNOB

$14.99

$

Usually ships in 3-6 days

19

Toro 340-2

FITTING-STRAIGHT

$13.99

$

In Stock, only 1 left!

19:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 2 left!

19:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

20

Toro 340-71

FITTING-STRAIGHT, BULKHEAD

$23.99

$

Usually ships in 3-6 days

20:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 2 left!

21

Toro 340-68

FITTING-TEE, BULKHEAD

$55.99

$

In Stock, only 2 left!

21:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 2 left!

22

Toro 340-70

NUT-LOCK

$2.99

$

In Stock, only 1 left!

23

Toro 106-9312

TUBE-HYD

$130.99

$

Usually ships in 3-6 days

24

Toro 106-9313

TUBE-HYD

$106.99

$

Usually ships in 3-6 days

25

Toro 106-9314

TUBE-HYD

$121.99

$

In Stock, only 1 left!

26

Toro 106-9315

TUBE-HYD

$97.99

$

Usually ships in 3-6 days

27

Toro 106-9385

TUBE-HYD

$99.99

$

In Stock, only 1 left!

28

Toro 106-9387

HYD TUBE ASM

$177.99

$

Usually ships in 3-6 days

28:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 2 left!

29

Toro 92-5821

HEAD-FILTER

$211.99

$

Usually ships in 3-6 days

30

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

31

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

32

Toro 86-3010

FILTER-OIL

$24.99

$

In Stock, Qty 6

33

Toro 100-4240

FITTING-STR

$21.99

$

Usually ships in 3-6 days

33:1

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

33:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 3 left!

34

Toro 340-131

FITTING-HYD, 90 DEG

$154.99

$

Usually ships in 3-6 days

34:1

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

34:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 3 left!

35

Toro 106-9316

TUBE-HYD

$126.99

$

Usually ships in 3-6 days

36

Toro 106-9317

TUBE-HYD

$121.99

$

Usually ships in 3-6 days

37

Toro 86-5480

NIPPLE-TEST

$75.99

$

Usually ships in 3-6 days

38

Toro 354-79

CAP-DUST

$10.99

$

Usually ships in 3-6 days

39

Toro 33114-035

SCREW-HH

$4.99

$

In Stock, only 1 left!

40

Toro 104-2827

SPACER-HIFLO

$179.99

$

Usually ships in 3-6 days

41

Toro 112-2739

LEVER-AUXILIARY

$49.99

$

Usually ships in 3-6 days

42

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 12

43

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

44

Toro 112-2738

SPRING-TORSION

$11.99

$

Usually ships in 3-6 days

45

Toro 112-2605

GRIP-RUBBER

$7.49

$

Usually ships in 3-6 days

46

Toro 340-14

FITTING-HYD, 45 DEG

$54.99

$

Usually ships in 3-6 days

46:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 12

46:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 8

47

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

Usually ships in 3-6 days

48

Toro 106-9333

HYD TUBE ASM

$228.99

$

Usually ships in 3-6 days

48:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 12

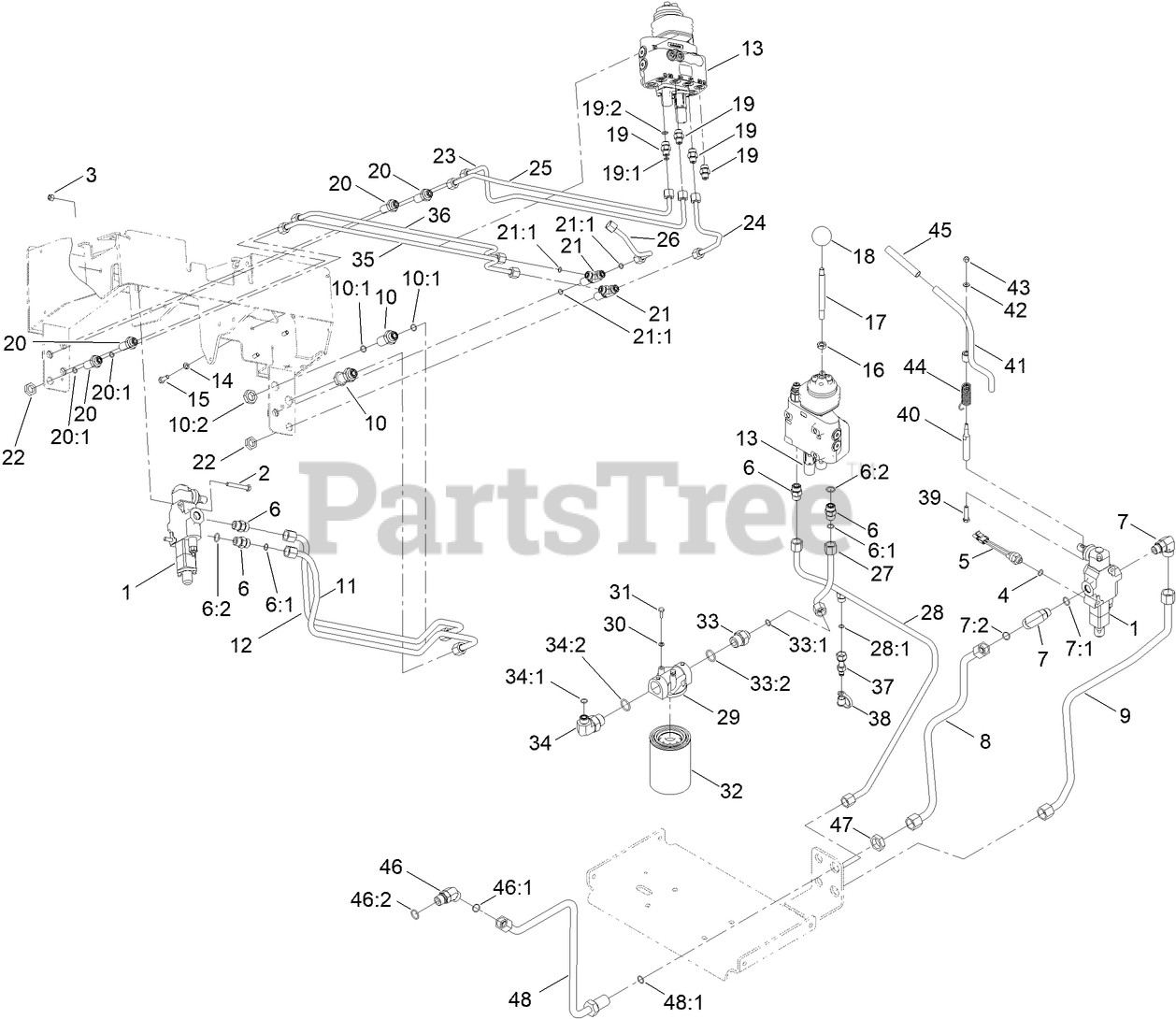

22342 HA (TX 427) - Toro Dingo Narrow Track Compact Utility Loader (SN: 400000000 - 411759999) Hydraulic Assembly Parts Diagram

Hydraulic Assembly Parts Diagram
