Toro 22351 (TX 700) - Toro Dingo Narrow Track Compact Utility Loader (SN: 412900000 - 415279999) Hydraulic Assembly Parts Lookup with Diagrams

1

Toro 233-21

KNOB

$14.99

$

Usually ships in 3-6 days

2

Toro 108-4675

SHAFT-HANDLE, LOADER

$78.99

$

Usually ships in 3-6 days

3

Toro 144-7489-03

RING-BOOT

$78.99

$

Usually ships in 0 days

4

Toro 51-2070

NUT

$0.99

$

Usually ships in 3-6 days

5

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

8

Toro 340-142

FITTING-ELBOW-90

$101.99

$

Usually ships in 3-6 days

8:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

8:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

10

Toro 140-3013

HOSE ASM-HYD

$97.99

$

Usually ships in 3-6 days

11

Toro 340-98

FITTING-ELBOW, 90 DEG

$36.99

$

In Stock, only 2 left!

11:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

11:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

12

Toro 127-0516

CLAMP-R, DOUBLE

$

Currently unavailable 

13

Toro 140-3023

HOSE-RETURN

$122.99

$

Usually ships in 3-6 days

14

Toro 140-2940

TRACTION CONTROL ASM

$1996.99

$

Usually ships in 0 days

15

Toro 140-3014

HOSE-HYD ASM

$167.99

$

Usually ships in 3-6 days

16

Toro 140-3012

HOSE ASM-HYD

$98.99

$

Usually ships in 3-6 days

17

Toro 144-2128

BOOT-CONTROL

$33.99

$

Usually ships in 0 days

18

Toro 2412-111

CLAMP

$5.49

$

Usually ships in 3-6 days

20

Toro 145-3295

HOSE-RETURN

$113.99

$

Usually ships in 0 days

21

Toro 140-3025

HOSE-RETURN

$113.99

$

Usually ships in 3-6 days

22

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

23

Toro 140-3026

HOSE-RETURN

$84.99

$

Usually ships in 3-6 days

24

Toro 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

24:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

24:2

Toro 237-21

O-RING

$0.99

$

In Stock, only 3 left!

25

Toro 140-3015

HOSE ASM-HYD

$64.99

$

Usually ships in 0 days

26

Toro 340-17

FITTING-ELBOW, 90 DEG

$64.99

$

Usually ships in 3-6 days

26:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

26:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

27

Toro 140-3016

HOSE ASM-HYD

$61.99

$

Usually ships in 3-6 days

28

Toro 140-3017

HOSE ASM-HYD

$79.99

$

Usually ships in 3-6 days

29

Toro 140-3018

HOSE ASM-HYD

$79.99

$

Usually ships in 3-6 days

30

Toro 340-101

FITTING-HYD, 45 DEG

$39.99

$

Usually ships in 3-6 days

30:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

30:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

31

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 1 left!

32

Toro 340-140

FITTING-TEE

$69.99

$

Usually ships in 3-6 days

32:1

Toro 237-21

O-RING

$0.99

$

In Stock, only 3 left!

32:2

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

33

Toro 140-3019

HOSE ASM-HYD

$58.99

$

Usually ships in 3-6 days

34

Toro 158-627

SOLENOID VALVE

$331.99

$

Usually ships in 3-6 days

34:1

Toro 217-770

SOLENOID COIL

$89.99

$

Usually ships in 0 days

36

Toro 340-77

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

36:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

36:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

37

Toro 140-3020

HOSE ASM-HYD

$59.99

$

Usually ships in 0 days

38

Toro 140-3021

HOSE ASM-HYD

$43.99

$

Usually ships in 3-6 days

39

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

40

Toro 100-4202

FITTING-90

$123.99

$

Usually ships in 3-6 days

40:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

41

Toro 119-9037

CLAMP-R

$8.49

$

Usually ships in 3-6 days

42

Toro 340-3

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

42:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

42:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

43

Toro 144-4257

LOADER VALVE ASM,

$

Not available 

43:1

Toro 106-7724

JOYSTICK KIT

Note: Not illustrated

$884.99

$

Usually ships in 3-6 days

43:1:1

Toro 98-0668

NUT

Note: Not illustrated

$3.99

$

Usually ships in 3-6 days

43:1:2

Toro 106-7726

PIVOT-JOYSTICK

Note: Not illustrated

$85.99

$

In Stock, only 1 left!

43:1:3

Toro 106-7727

PIN-JOYSTICK

Note: Not illustrated

$186.99

$

Usually ships in 3-6 days

43:1:4

Toro 106-7728

END-ROD

Note: Not illustrated

$157.99

$

Usually ships in 3-6 days

43:1:5

Toro 42-9850

See Supercession: 3253-4

(Superseded to 325-34) 

Note: Not illustrated

$4.49

$

In Stock, only 2 left!

43:1:6

Toro 98-5828

SCREW-HSH

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

43:1:7

Toro 106-7729

BELLOW-RUBBER

Note: Not illustrated

$167.99

$

Usually ships in 3-6 days

43:1:8

Toro 3290-379

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, only 3 left!

43:1:9

Toro 106-7730

JOINT-JOYSTICK

Note: Not illustrated

$197.99

$

Usually ships in 3-6 days

43:1:10

Toro 106-7731

HOLDER-ARTICULATED

Note: Not illustrated

$86.99

$

In Stock, only 1 left!

43:2

Toro 106-7725

SEAL-JOYSTICK

Note: Not illustrated

$34.99

$

Usually ships in 3-6 days

43:3

Toro 106-7738

SEAL-VALVE, SPOOL

Note: Not illustrated

$99.99

$

Usually ships in 3-6 days

43:4

Toro 106-7737

SPOOL-VALVE

(Superseded to 144-7350) 

Note: Not illustrated

$200.99

$

Usually ships in 3-6 days

43:5

Toro 106-7736

SPOOL-VALVE

Note: Not illustrated

$403.99

$

Usually ships in 3-6 days

43:6

Toro 132-6031

VALVE-RELIEF, MAIN

Note: Not illustrated

$425.99

$

Usually ships in 3-6 days

43:7

Toro 353-988

PLUG-HEX

Note: Not illustrated

$15.99

$

Usually ships in 3-6 days

43:7:1

Toro 237-79

O-RING

Note: Not illustrated

$6.49

$

In Stock, only 4 left!

43:8

Toro 106-7734

VALVE-RELIEF

Note: Not illustrated

$807.99

$

Usually ships in 3-6 days

43:9

Toro 106-7719

SEAL-VALVE

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

43:10

Toro 106-7732

VALVE SPRING KIT

Note: Not illustrated

$124.99

$

Usually ships in 3-6 days

43:11

Toro 106-7733

DETENT SPRING KIT

Note: Not illustrated

$714.99

$

Usually ships in 3-6 days

43:12

Toro 132-6032

JOINT-SAE 8

Note: Not illustrated

$210.99

$

Usually ships in 3-6 days

43:13

Toro 132-6033

PLUG

Note: Not illustrated

$33.99

$

Usually ships in 3-6 days

44

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

45

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

46

Toro 140-5738-03

PLATE-HOSE

$

Currently unavailable 

47

Toro 321-18

SCREW-HH

$2.49

$

In Stock, Qty 20+

49

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

50

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

51

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

53

Toro 340-87

FITTING-ELBOW, 45 DEG

$21.99

$

Usually ships in 3-6 days

53:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

53:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

54

Toro 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

55

Toro 145-4333

VALVE-CHECK

$89.99

$

Usually ships in 3-6 days

55:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

55:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

56

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

56:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

56:2

Toro 237-79

O-RING

$6.49

$

In Stock, only 4 left!

57

Toro 145-3260

PLATE, BACKING

$

Currently unavailable 

58

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

59

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

60

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

61

Toro 93-2242

FILTER-OIL

$417.99

$

Usually ships in 3-6 days

61:1

Toro 75-1310

FILTER-HYD

$91.99

$

Usually ships in 3-6 days

62

Toro 145-3293

HOSE ASM-HYD

$97.99

$

Usually ships in 0 days

64

Toro AU112950

PROTECTOR-HOSE

$30.99

$

Usually ships in 3-6 days

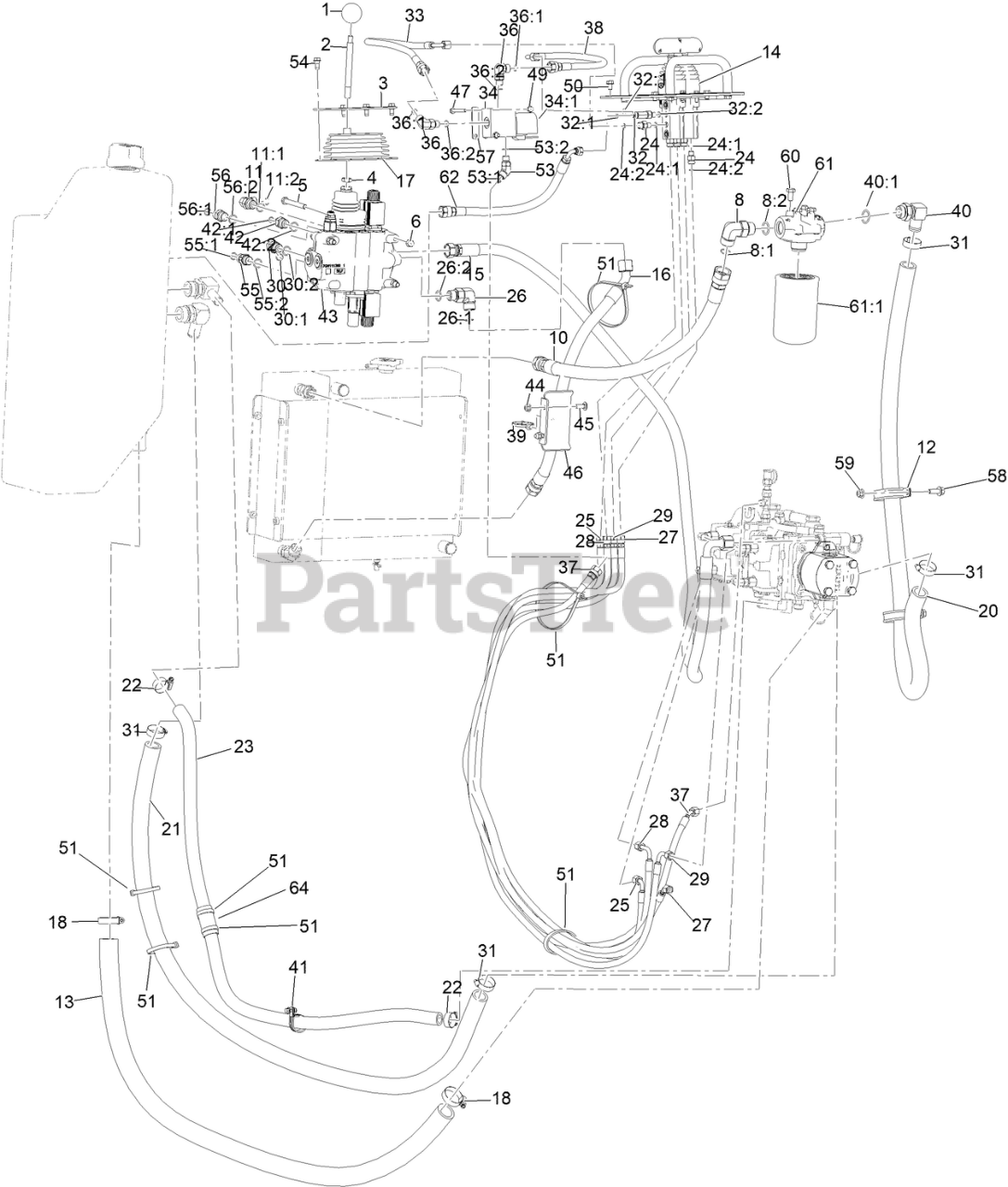

22351 (TX 700) - Toro Dingo Narrow Track Compact Utility Loader (SN: 412900000 - 415279999) Hydraulic Assembly Parts Diagram

Hydraulic Assembly Parts Diagram
