22351 (TX 700) - Toro Dingo Narrow Track Compact Utility Loader (SN: 415280000 - 417199999) Platform Assembly Parts Diagram

Dingo Narrow Track Compact Utility Loader

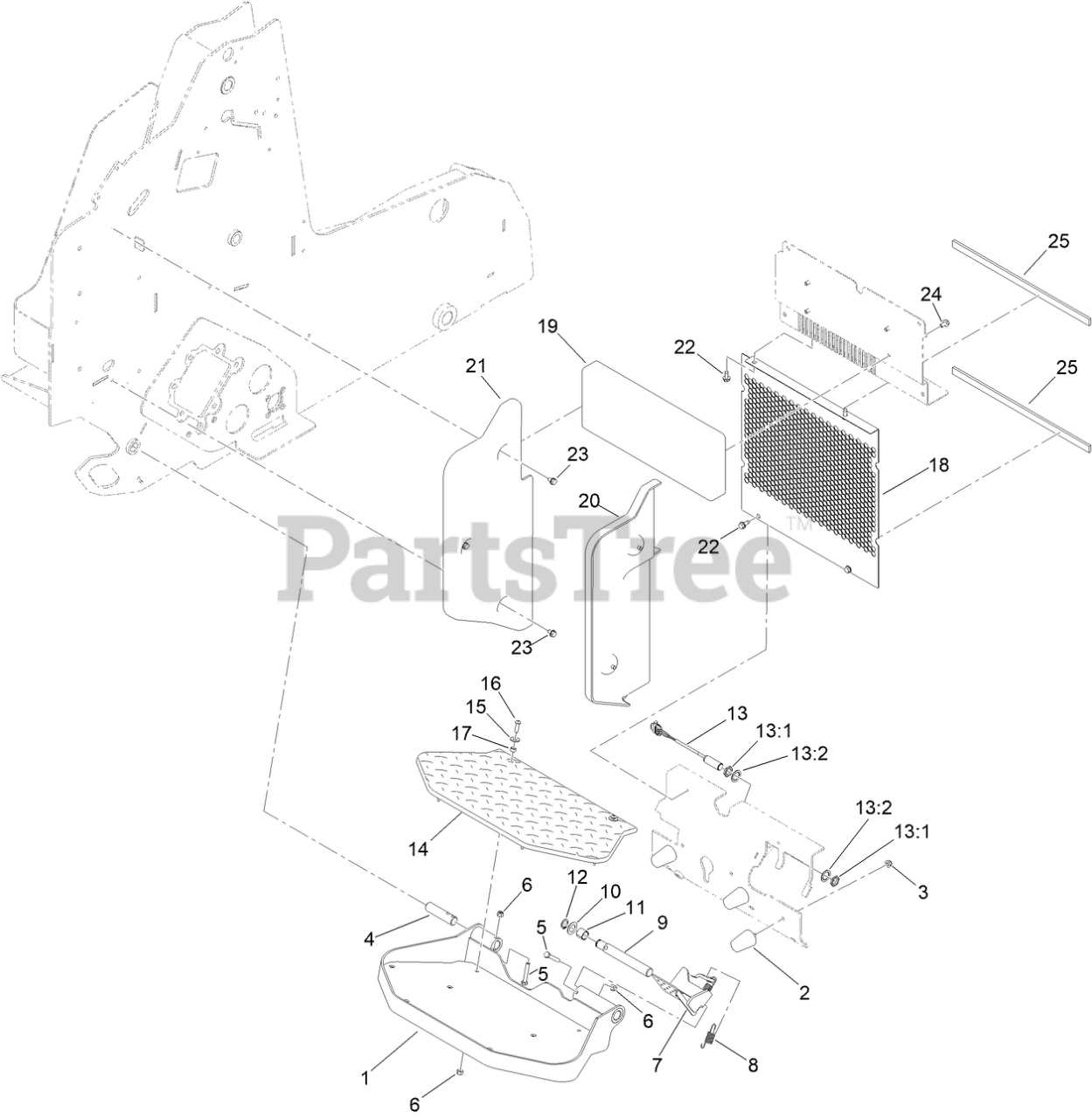

Platform Assembly Parts Diagram

  • Title

1

Toro 144-2124-03

PLATFORM ASM

$718.99

$

Usually ships in 3-6 days

0

2

Toro 110-5070

BUMPER

$15.99

$

In Stock, only 2 left!

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 125-3749

PIN-PIVOT

$35.99

$

Usually ships in 3-6 days

0

5

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 144-2118-03

AUX PEDAL ASM, [BLACK]

$155.99

$

Usually ships in 0 days

0

8

Toro 137-6189

SPRING-EXTENSION

$3.99

$

In Stock, only 2 left!

0

9

Toro 144-2115

PIN-PLATFORM

$58.99

$

Usually ships in 3-6 days

0

10

Toro 9202574

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

11

Toro 94-9609

BUSHING-STRAIGHT

$9.49

$

Usually ships in 3-6 days

0

12

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

13

Toro 115-5300

PROXIMITY SWITCH ASM

$161.99

$

In Stock, Qty 15

0

13:1

Toro 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

13:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$11.99

$

In Stock, only 4 left!

0

14

Toro 144-2116

MAT-PLATFORM

$54.99

$

Usually ships in 3-6 days

0

15

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 109-4872

SCREW-HSBH

$1.99

$

In Stock, only 1 left!

0

17

Toro 85-9120

SPACER-PIVOT, TILT

$5.99

$

Usually ships in 3-6 days

0

18

Toro 140-5781-03

SCREEN-RADIATOR

$225.99

$

Usually ships in 0 days

0

19

Toro 144-6059

CUSHION-PAD

$279.99

$

Usually ships in 3-6 days

0

20

Toro 144-2113

COVER-RIGHT

$136.99

$

Usually ships in 3-6 days

0

21

Toro 144-2114

COVER-LEFT

$136.99

$

Usually ships in 3-6 days

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

23

Toro 700057

SCREW-HWH

$2.49

$

In Stock, Qty 20+

0

24

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

25

Toro 145-3276

PAD-RUBBER

$7.49

$

Usually ships in 0 days

0
