22352 (TX 700) - Toro Dingo Wide Track Compact Utility Loader (SN: 415287954 - 415299999) Flywheel Housing and Oil Sump Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

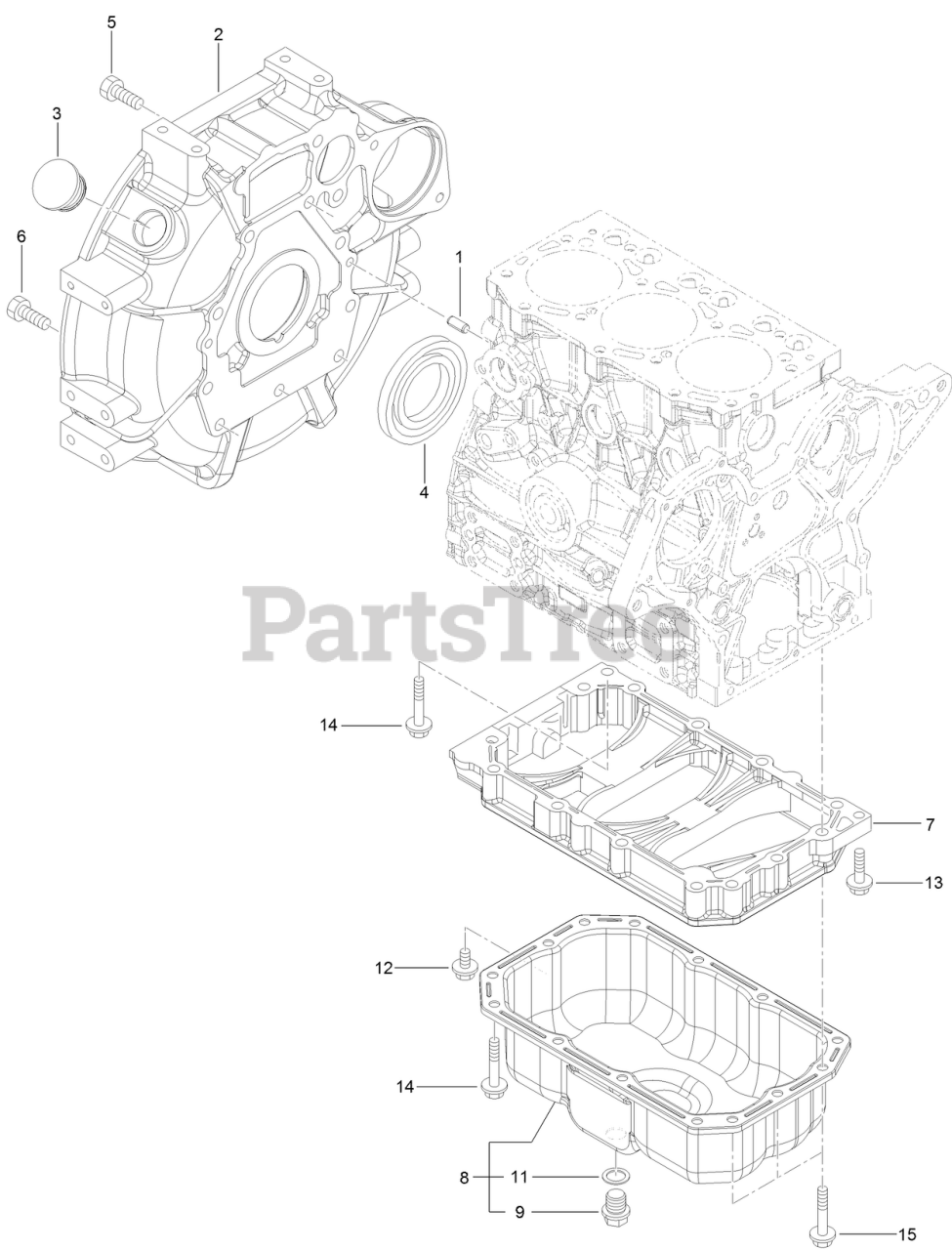

Flywheel Housing and Oil Sump Assembly Parts Diagram

  • Title

1

Toro 125-6995

PIN

$6.99

$

Usually ships in 3-6 days

0

2

Toro 134-1397

HOUSING-FLYWHEEL

$1771.99

$

Usually ships in 3-6 days

0

3

Toro 125-6910

CAP

$16.99

$

Usually ships in 3-6 days

0

4

Toro 135-4064

SEAL-OIL

$67.99

$

Usually ships in 3-6 days

0

5

Toro 125-7226

BOLT

$5.49

$

Usually ships in 3-6 days

0

6

Toro 125-7227

BOLT

$6.49

$

Usually ships in 3-6 days

0

7

Toro 135-4066

SPACER-OIL PAN

$646.99

$

Usually ships in 3-6 days

0

8

Toro 134-1398

OIL PAN ASM

$878.99

$

Usually ships in 3-6 days

0

9

Toro 135-4068

PLUG

$8.49

$

Usually ships in 3-6 days

0

11

Toro 136-8236

WASHER-SEAL

$4.99

$

Usually ships in 3-6 days

0

12

Toro 125-7212

BOLT

$3.49

$

Usually ships in 3-6 days

0

13

Toro 125-7216

BOLT

$4.49

$

Usually ships in 3-6 days

0

14

Toro 125-7219

BOLT

$5.99

$

Usually ships in 3-6 days

0

15

Toro 125-7220

BOLT

$6.49

$

Usually ships in 3-6 days

0
