22352 (TX 700) - Toro Dingo Wide Track Compact Utility Loader (SN: 415300000 - 999999999) Crankshaft and Piston Assembly Parts Diagram

Dingo Wide Track Compact Utility Loader

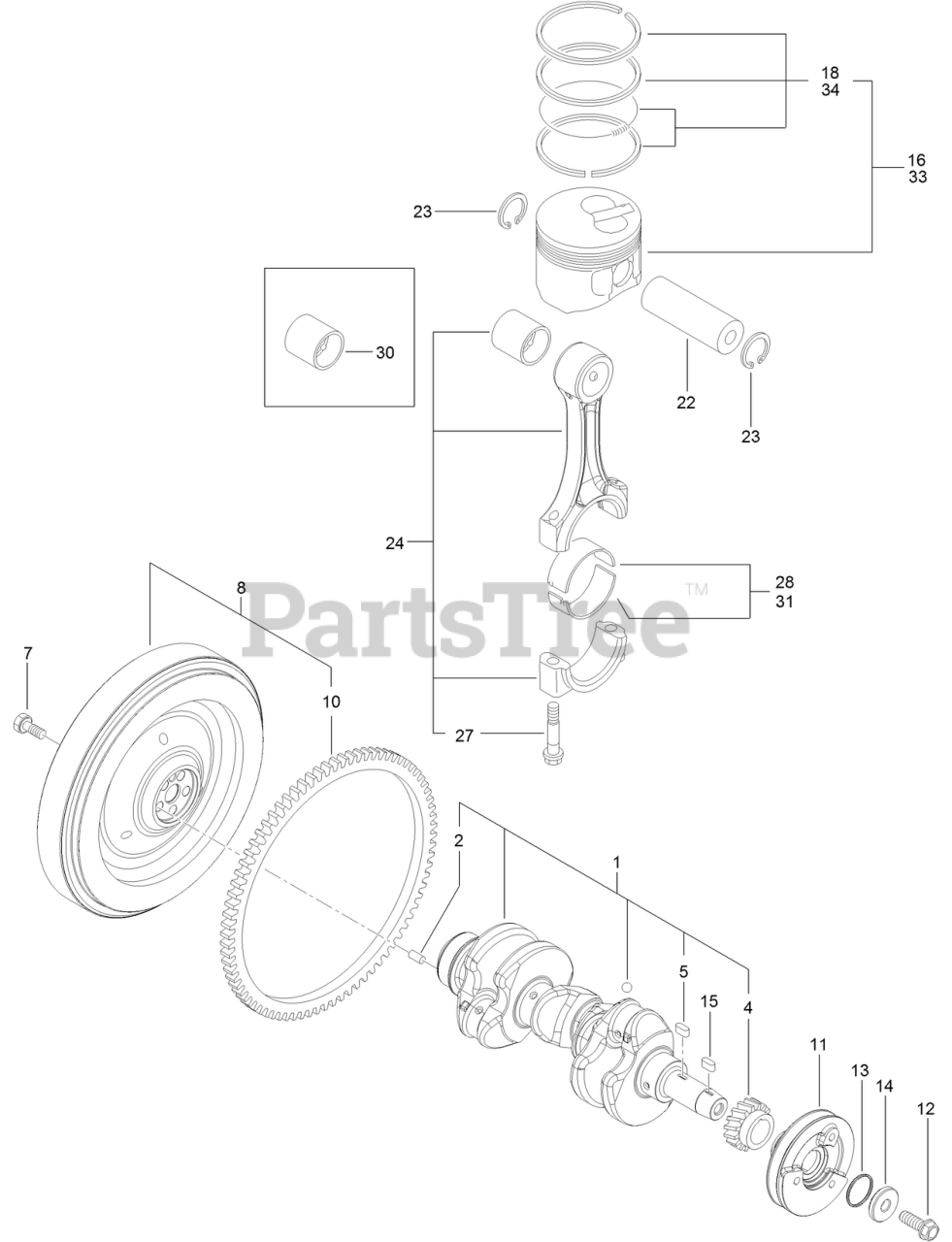

Crankshaft and Piston Assembly Parts Diagram

  • Title

1

Toro 135-4152

CRANKSHAFT ASM

$2845.99

$

Usually ships in 3-6 days

0

2

Toro 125-6995

PIN

$6.99

$

Usually ships in 3-6 days

0

4

Toro 135-4153

GEAR-CRANKSHAFT

$319.99

$

Usually ships in 3-6 days

0

5

Toro 135-4154

KEY

$4.49

$

Usually ships in 3-6 days

0

7

Toro 125-6951

BOLT

$8.99

$

Usually ships in 3-6 days

0

8

Toro 140-7164

FLYWHEEL ASM

$

$

Currently unavailable

10

Toro 125-6943

GEAR

$194.99

$

Usually ships in 3-6 days

0

11

Toro 135-4158

V-PULLEY, CRANKSHAFT 1

$609.99

$

Usually ships in 3-6 days

0

12

Toro 135-4159

BOLT, FLANGE 12X1.25 1

$16.99

$

Usually ships in 3-6 days

0

13

Toro 134-4004

PACKING-WASHER

$

$

Currently unavailable

14

Toro 135-4161

WASHER

$64.99

$

Usually ships in 3-6 days

0

15

Toro 135-4154

KEY

$4.49

$

Usually ships in 3-6 days

0

16

Toro 135-4163

PISTON ASM

$386.99

$

Usually ships in 3-6 days

0

18

Toro 135-4164

RING ASM

$166.99

$

Usually ships in 3-6 days

0

22

Toro 135-4165

PIN-PISTON

$33.99

$

Usually ships in 3-6 days

0

23

Toro 135-4166

RING

$3.49

$

Usually ships in 3-6 days

0

24

Toro 134-4005

CONNECTING ROD ASM

$519.99

$

Usually ships in 0 days

0

27

Toro 135-4168

BOLT-CONNECTING ROD

$17.99

$

Usually ships in 3-6 days

0

28

Toro 135-4169

BEARING-CRANK PIN

$45.99

$

Usually ships in 3-6 days

0

30

Toro 134-4006

BUSHING-PIN, PISTON

$29.99

$

Usually ships in 3-6 days

0

31

Toro 135-4171

BEARING, PIN 0.25

$86.99

$

Usually ships in 3-6 days

0

33

Toro 134-4007

PISTON ASM (0.25 OS)

$

$

Currently unavailable

34

Toro 135-4173

RING ASM

$211.99

$

Usually ships in 3-6 days

0
