22368 - Toro CE Kit for STX-26 Stump Grinder CE Update Assembly Parts Diagram

CE Kit for STX-26 Stump Grinder

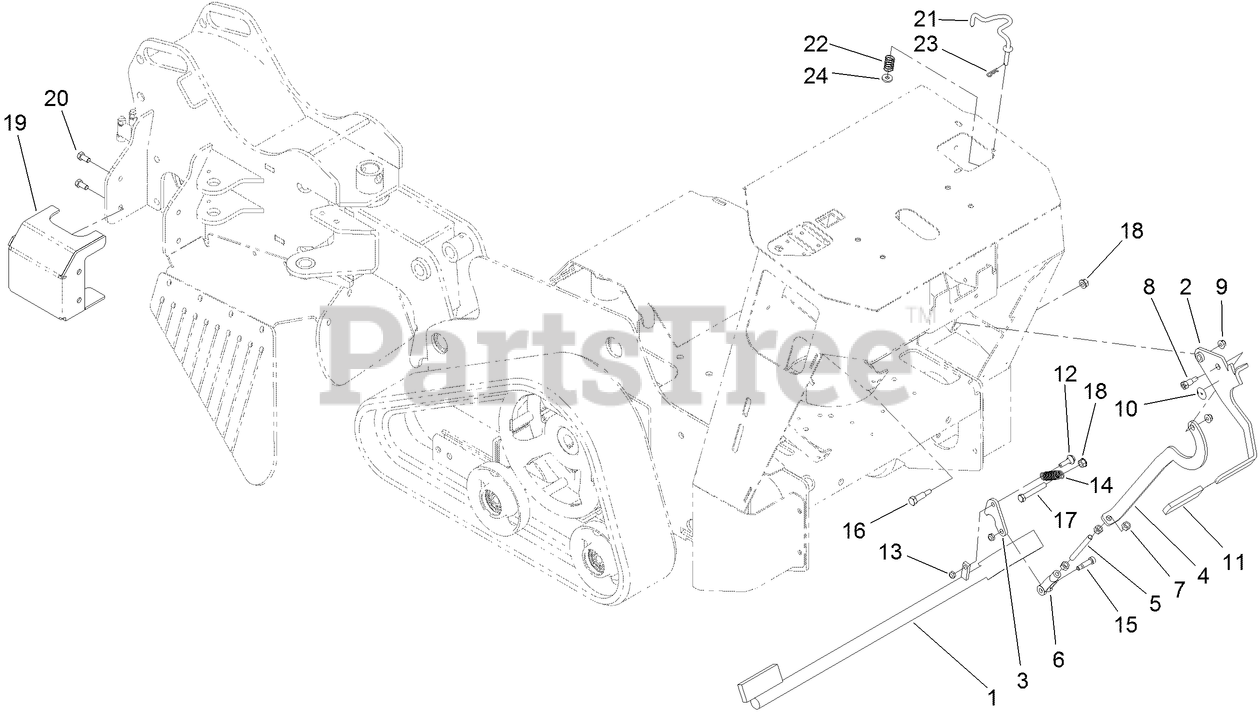

CE Update Assembly Parts Diagram

  • Title

1

Toro 121-6240-03

BRAKE BAR ASM

$

$

Not available

2

Toro 121-6242-03

BRAKE HANDLE ASM

$

$

Not available

3

Toro 114-2975

LINK-MOUNTING

$21.99

$

Usually ships in 3-6 days

0

4

Toro 121-6245-03

PLATE-BRAKE

$53.99

$

Usually ships in 3-6 days

0

5

Toro 121-6243

ROD-THREADED

$37.99

$

Usually ships in 3-6 days

0

6

Toro 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, only 2 left!

0

7

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 13

0

8

Toro 28-0540

BOLT-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 107-8495

DECAL-PARKING BRAKE

$13.99

$

Usually ships in 3-6 days

0

11

Toro 62-9130

GRIP-HANDLE

$9.49

$

Usually ships in 3-6 days

0

12

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 2 left!

0

13

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

14

Toro 67-1450

SPRING-IDLER

$27.99

$

Usually ships in 3-6 days

0

15

Toro 114-8629

BOLT-SHOULDER

$20.99

$

In Stock, only 2 left!

0

16

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, Qty 20+

0

17

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 6

0

18

Toro 32128-40

NUT-FLANGE

$7.99

$

Usually ships in 3-6 days

0

19

Toro 121-6238-01

COVER ASM

$

$

Not available

20

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 12

0

21

Toro 115-4580

ROD-INTERLOCK

$22.99

$

Usually ships in 3-6 days

0

22

Toro 85-6750

SPRING-CONTROL

$11.99

$

Usually ships in 3-6 days

0

23

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

24

Toro 88-7200

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0
