22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 410400000 - 410499999) Hood and Cover Assembly Parts Diagram

Dingo Compact Utility Loader

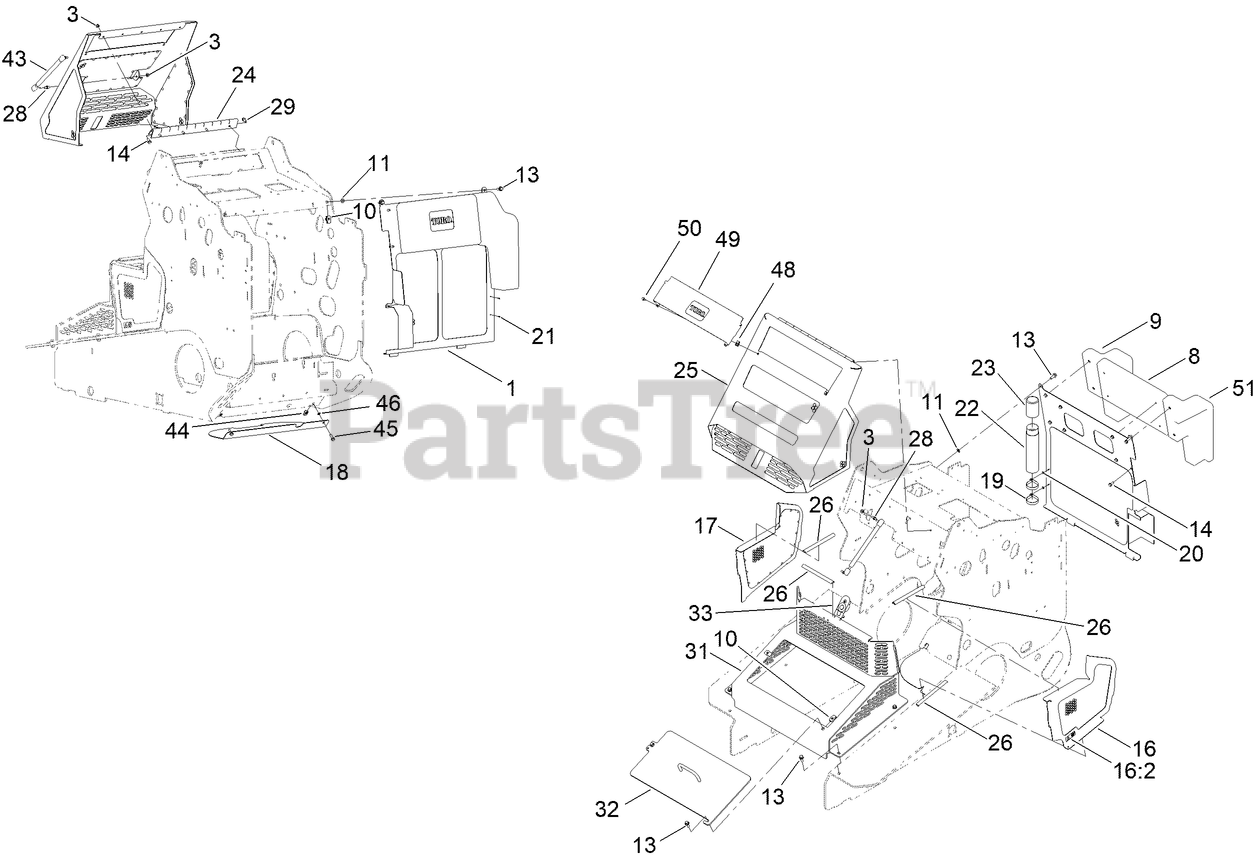

Hood and Cover Assembly Parts Diagram

  • Title

1

Toro 140-6079-03

COVER-REAR [BLACK]

$834.99

$

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 140-4499

CUSHION-PAD

$189.99

$

Usually ships in 3-6 days

0

9

Toro 140-4500

CUSHION-PAD

$180.99

$

Usually ships in 3-6 days

0

10

Toro 105-4886

NUT-TINNERMAN

$2.99

$

In Stock, only 1 left!

0

11

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 12

0

13

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 17

0

14

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

16

Toro 140-6065

COVER

$303.99

$

Usually ships in 3-6 days

0

16:2

Toro 115-2047

DECAL-SURFACE, HOT

$17.99

$

In Stock, only 1 left!

0

17

Toro 144-4379-03

COVER-SIDE, RH [BLACK]

$312.99

$

0

18

Toro 140-4506-01

COVER-BOTTOM

$117.99

$

Usually ships in 3-6 days

0

19

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

20

Toro 3269-10

WASHER-BACK

$0.99

$

In Stock, only 4 left!

0

21

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

22

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

23

Toro 104-7048

CAP-HOUSING

$5.49

$

Usually ships in 3-6 days

0

24

Toro 140-1830

HINGE-HOOD

$75.99

$

Usually ships in 3-6 days

0

25

Toro 140-5940-03

HOOD [BLACK]

$957.99

$

Usually ships in 3-6 days

0

26

Toro 140-5942

SEAL-BULB

$8.99

$

Usually ships in 3-6 days

0

28

Toro 103-5752

STUD-BALL

$7.99

$

Usually ships in 3-6 days

0

29

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

31

Toro 140-5928-03

COVER-FRONT [BLACK]

$1073.99

$

Usually ships in 3-6 days

0

32

Toro 144-0828-03

FRONT COVER ASM, [BLACK]

$649.99

$

0

33

Toro 144-4364

LATCH-COMPRESSION, LOCKING

$83.99

$

Usually ships in 3-6 days

0

43

Toro 117-9652

SPRING-GAS

$

$

Currently unavailable

44

Toro 115-7721

NUT-CLIP, U

$2.49

$

In Stock, only 2 left!

0

45

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

46

Toro 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 3 left!

0

48

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

49

Toro 145-4276

HOOD SCOOP ASM

$174.99

$

Usually ships in 3-6 days

0

50

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 13

0

51

Toro 144-0796

CUSHION-PAD

$213.99

$

Usually ships in 3-6 days

0

99

Toro 505-42

DISCONTINUED

Note: Not illustrated

$

$

Not available
