22370 (TX 1300) - Toro Dingo Compact Utility Loader (SN: 413000000 - 414487157) Platform Assembly Parts Diagram

Dingo Compact Utility Loader

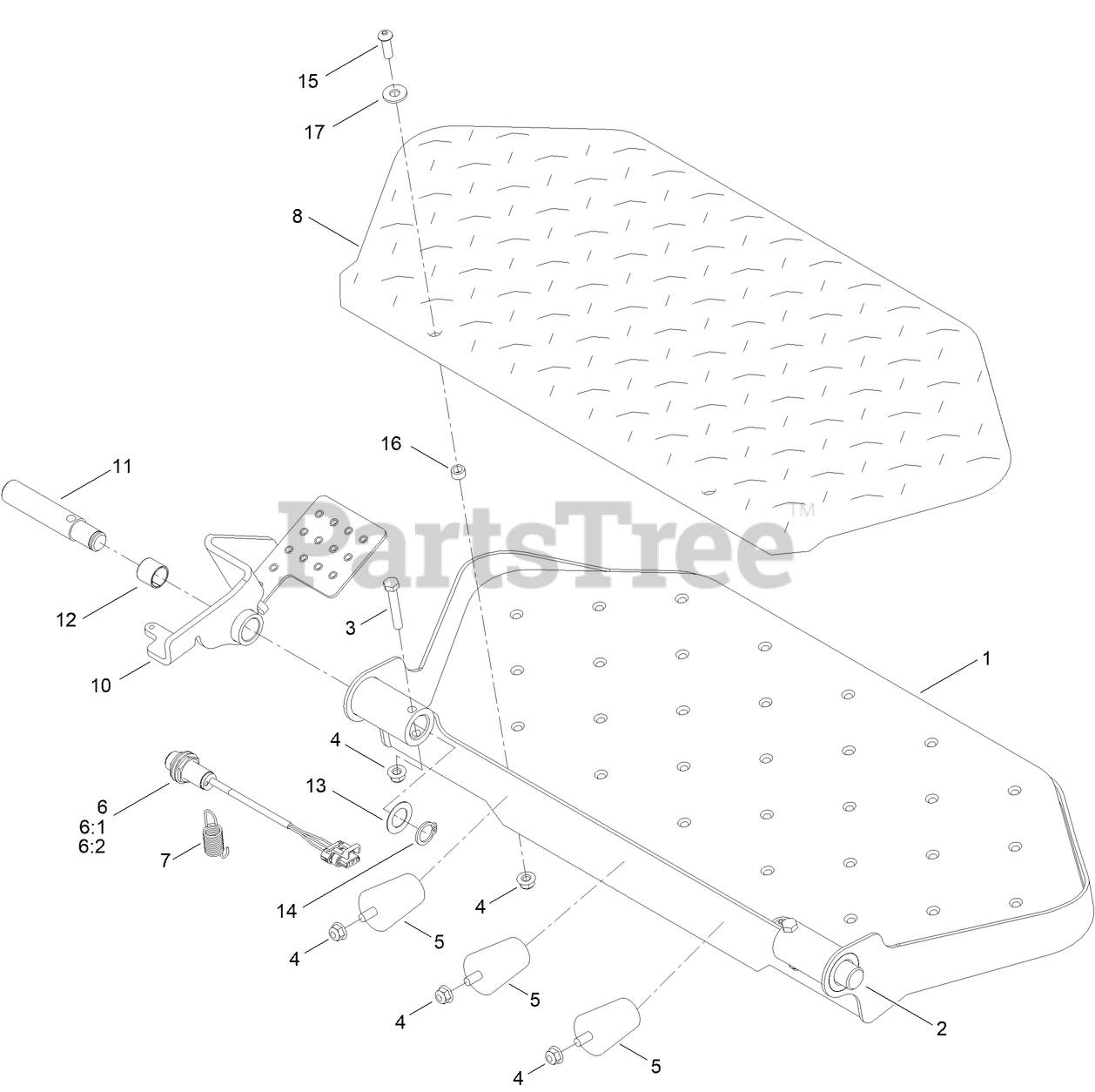

Platform Assembly Parts Diagram

  • Title

1

Toro 138-2420-03

PLATFORM ASM [BLACK]

$606.99

$

Usually ships in 3-6 days

0

2

Toro 125-3749

PIN-PIVOT

$35.99

$

Usually ships in 3-6 days

0

3

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 110-5070

BUMPER

$15.99

$

In Stock, only 2 left!

0

6

Toro 115-5300

PROXIMITY SWITCH ASM

$161.99

$

In Stock, Qty 15

0

6:1

Toro 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

6:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$11.99

$

In Stock, only 4 left!

0

7

Toro 137-6189

SPRING-EXTENSION

$3.99

$

In Stock, only 2 left!

0

8

Toro 144-4256

PAD-PLATFORM

$61.99

$

Usually ships in 3-6 days

0

10

Toro 140-1811-03

FOOT PEDAL ASM, [BLACK]

$140.99

$

Usually ships in 0 days

0

11

Toro 140-1814

PIN-PIVOT

$34.99

$

Usually ships in 3-6 days

0

12

Toro 94-9609

BUSHING-STRAIGHT

$9.49

$

Usually ships in 3-6 days

0

13

Toro 9202574

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

14

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

15

Toro 109-4872

SCREW-HSBH

$1.99

$

In Stock, only 1 left!

0

16

Toro 85-9120

SPACER-PIVOT, TILT

$5.99

$

Usually ships in 3-6 days

0

17

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
