224010x24C - Briggs & Stratton 22" Walk-Behind Mower (2005) (Meijer) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

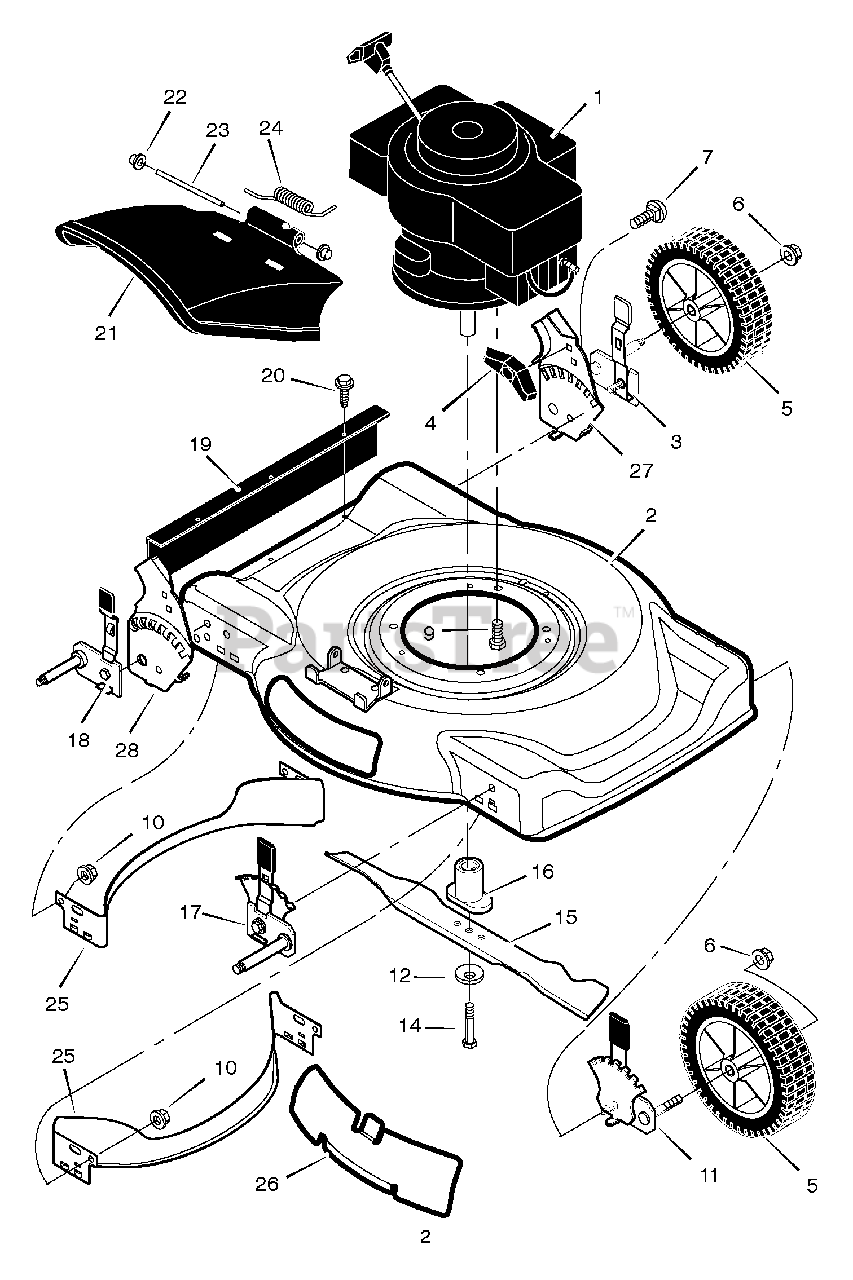

Mower Housing Assembly Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 776022MA

Housing

$

$

Not available

3

Murray 672641MA

Height Adjuster, Left Rear (8" Wheels)

$72.99

$

Usually ships in 2-12 days

0

4

Murray 071495MA

Knob

$4.99

$

In Stock, only 3 left!

0

5

Murray 672060MA

Wheel and Tire *
(Superseded to 336545MA)

$33.99

$

In Stock, only 1 left!

0

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672601MA

Height Adjuster, Left Front (8" Wheels)

$87.99

$

Usually ships in 2-12 days

0

12

Murray 1101989MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

14

Murray 01X142MA

Bolt, Hex

$8.49

$

In Stock, Qty 7

0

15

Murray 1101823E701MA

Blade
(Superseded to 7100851AYP)

$19.99

$

In Stock, Qty 6

0

16

Murray 1101825MA

Adapter, Blade

$11.99

$

In Stock, only 1 left!

0

17

Murray 672600MA

Height Adjuster, Right Front (8" Wheels)

$82.99

$

In Stock, only 1 left!

0

18

Murray 672640MA

Height Adjuster, Right Rear (8" Wheels)

$70.99

$

Usually ships in 2-12 days

0

19

Murray 672738MA

Guard, Rear

$32.99

$

Usually ships in 2-12 days

0

20

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

21

Murray 672421MA

Deflector, Chute

$38.99

$

Usually ships in 2-12 days

0

22

Murray 028X42MA

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

24

Murray 0166X5MA

Spring

$3.99

$

Usually ships in 2-12 days

0

25

Murray 672744E701MA

Baffle

Note: (Optional Accessory)

$49.99

$

Usually ships in 2-12 days

0

26

Murray 672422 Z

Plate, Mulcher

Note: (Optional Accessory)

$

$

Currently unavailable

27

Murray 1101303E245MA

Bracket, Left Handle
(Superseded to 1101303E701MA)

$10.99

$

Usually ships in 2-12 days

0

28

Murray 1101302E245MA

Bracket, Right Handle
(Superseded to 1101302E701MA)

$15.99

$

Usually ships in 2-12 days

0

--

Murray F-050407L

Book, Instruction

$

$

Currently unavailable
