22414 - Toro 48" Hydraulic Blade for Dingo Compact Utility Loader (SN: 099000001 - 099999999) (1999) HYDRAULIC BLADE ASSEMBLY Parts Diagram

48" Hydraulic Blade for Dingo Compact Utility Loader

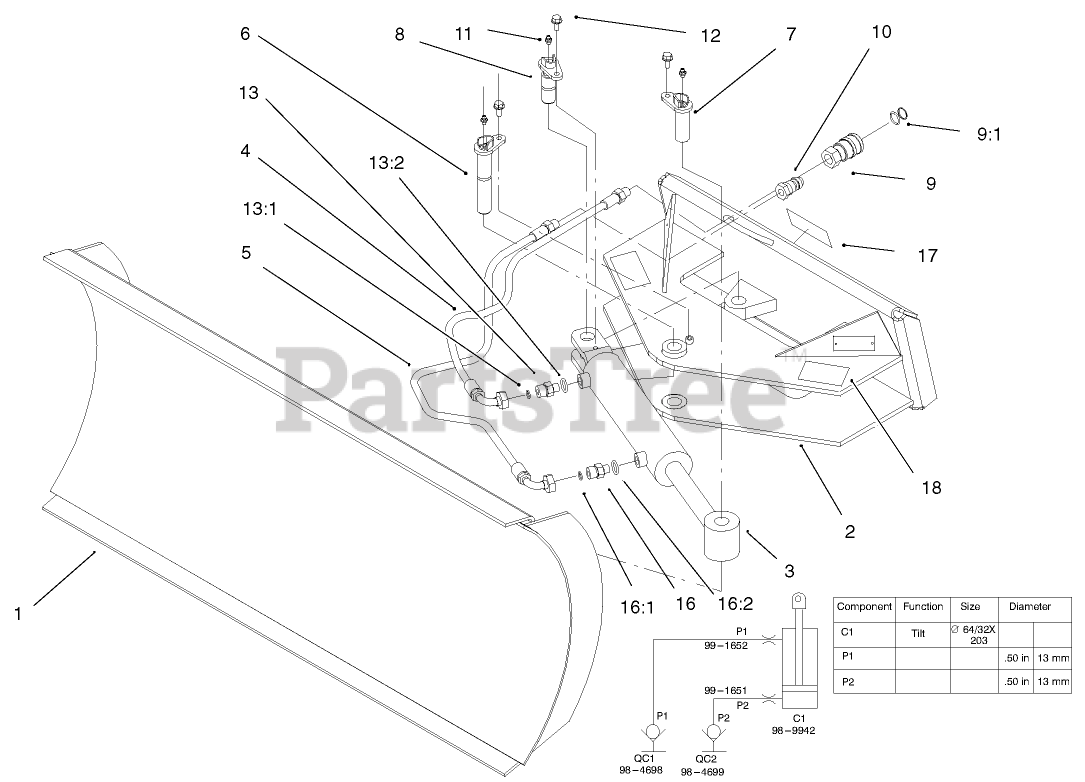

HYDRAULIC BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 98-8240

WA - BLADE
(Superseded to 98-8240-03)

$5747.99

$

Usually ships in 3-6 days

0

2

Toro 99-4306

Blade Pivot (Incl. Ref. #18)

$4832.99

$

Usually ships in 3-6 days

0

3

Toro 98-9942

CYLINDER-HYD

$1668.99

$

Usually ships in 3-6 days

0

Toro 99-1352

KIT-SEAL

$298.99

$

Usually ships in 3-6 days

0

4

Toro 99-1651

HYD HOSE ASM

$388.99

$

Usually ships in 3-6 days

0

5

Toro 99-1652

HYD HOSE ASM

$480.99

$

Usually ships in 3-6 days

0

6

Toro 94-1598

PIN-PIVOT

$366.99

$

Usually ships in 3-6 days

0

7

Toro 94-9797

PIN-PIVOT

$168.99

$

Usually ships in 3-6 days

0

8

Toro 98-4870

PIN-PIVOT
(Superseded to 112-2609)

$105.99

$

In Stock, only 2 left!

0

9

Toro 98-4699

FEMALE-DISCONNECT, QUICK

$149.99

$

In Stock, only 2 left!

0

9:1

Toro 100-4165

SEAL KIT

$

$

Not available

10

Toro 98-4698

MALE-DISCONNECT, QUICK

$64.99

$

In Stock, only 2 left!

0

11

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 19

0

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

13

Toro 340-5

FITTING-STR

$21.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

13:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

16

Toro 99-1650

CONNECTOR-STRAIGHT

$366.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

16:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

17

Toro 98-4683

DECAL-ATTACHMENT, DINGO

$

$

Not available

18

Toro 100-4650

DECAL-WARNING

$25.99

$

Usually ships in 3-6 days

0
