22415 - Toro Rotary Broom for Dingo Compact Utility Loader (SN: 270000001 - 270999999) (2007) HYDRAULIC MOTOR ASSEMBLY NO. 99-6566 Parts Diagram

Rotary Broom for Dingo Compact Utility Loader

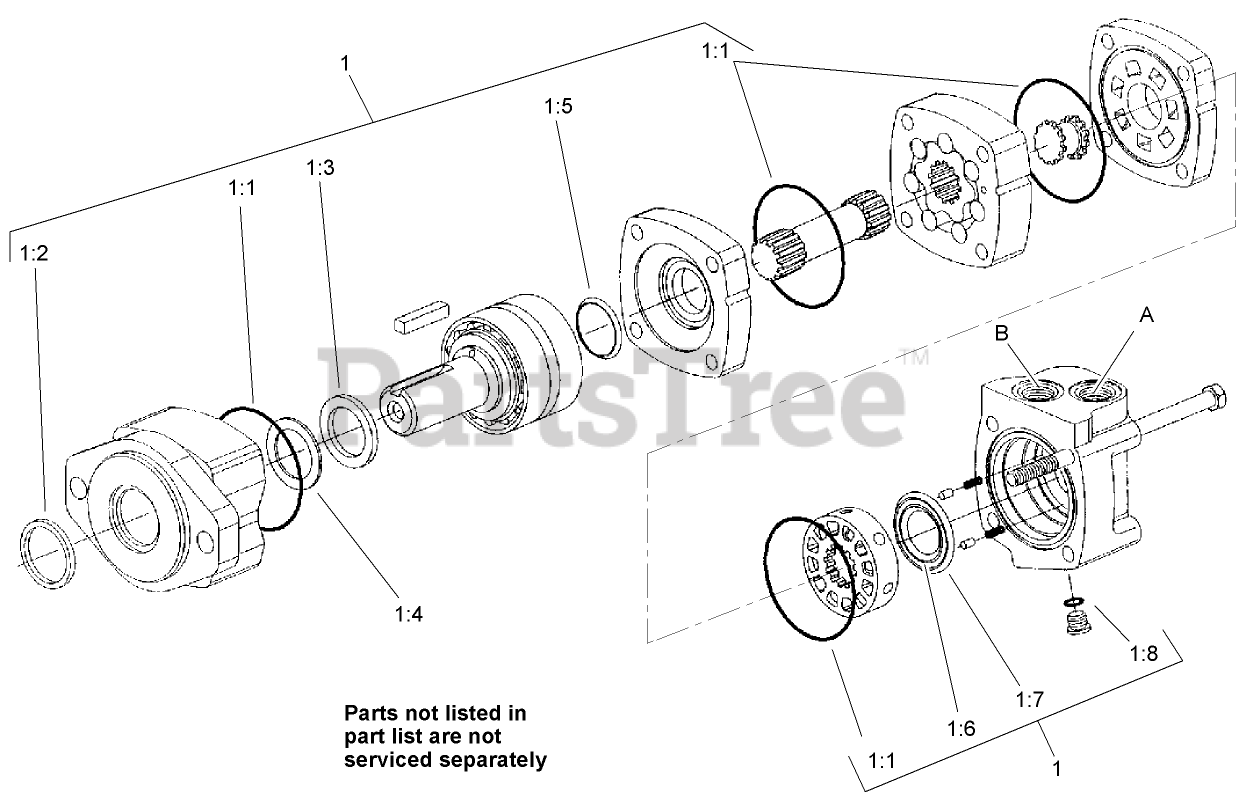

HYDRAULIC MOTOR ASSEMBLY NO. 99-6566 Parts Diagram

  • Title

1

Toro 56-6890

SEAL KIT

$151.99

$

In Stock, only 1 left!

0

1:1

O-Ring

Note: Not serviced separately

$

$

Not available

1:2

Seal-Exclusion, Shaft

Note: Not serviced separately

$

$

Not available

1:3

Seal-Shaft

Note: Not serviced separately

$

$

Not available

1:4

Ring-Back-Up

Note: Not serviced separately

$

$

Not available

1:5

Seal-Face, Shaft

Note: Not serviced separately

$

$

Not available

1:6

Seal-Face, Inner

Note: Not serviced separately

$

$

Not available

1:7

Seal-Face, Outer

Note: Not serviced separately

$

$

Not available

1:8

O-Ring

Note: Not serviced separately

$

$

Not available
