22420 - Toro Bore Drive Head Attachment for Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005)

Bore Drive Head Attachment for Dingo Compact Utility Loader

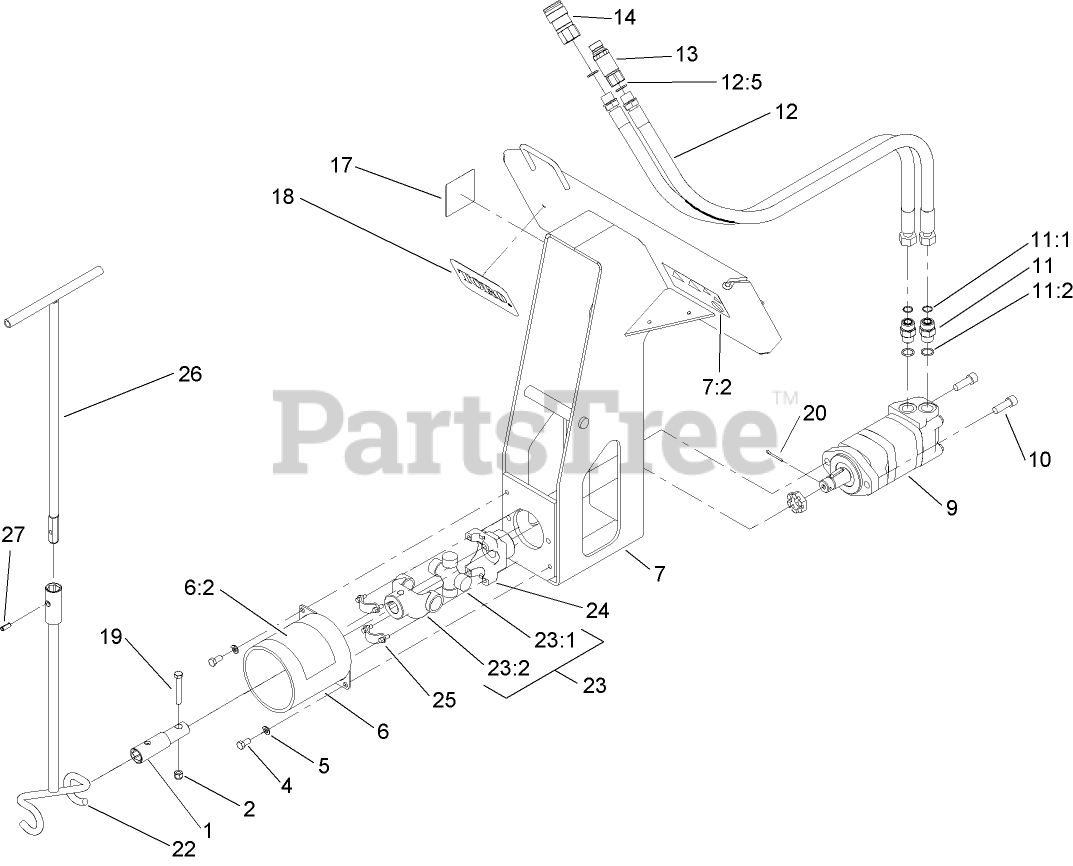

22420 - Toro Bore Drive Head Attachment for Dingo Compact Utility Loader (SN: 250000001 - 250999999) (2005) > Parts Diagrams (2) > BORE DRIVE HEAD ASSEMBLY

  • Title
104-1896

1

Coupler ASM

Part# 104-1896 (Superseded to 115-3897)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $253.53

3296-22

2

NUT-LOCK, NI

Part# 3296-22 (Superseded to 3296-39)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.11

323-4

4

SCREW-HH

Part# 323-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.05

3253-5

5

WASHER-LOCK

Part# 3253-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.35

104-1895

6

Shield ASM

Part# 104-1895

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $266.34

99-9945

6:2

DECAL-WARNING

Part# 99-9945

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $43.02

104-1894

7

Bore Frame ASM

Part# 104-1894

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1544.29

99-9945

7:2

DECAL-WARNING

Part# 99-9945

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $43.02

98-8280

9

MOTOR-HYDRAULIC

Part# 98-8280

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4691.69

3274-4

10

SCREW-HSH

Part# 3274-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.82

340-7

11

FITTING-STRAIGHT

Part# 340-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.89

237-65

11:1

O-RING

Part# 237-65

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.05

237-80

11:2

O-RING

Part# 237-80

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.75

104-1932

12

HOSE ASM

Part# 104-1932

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $288.48

237-80

12:5

O-RING

Part# 237-80

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.75

100-4701

13

NIPPLE-CONNECT, PRESSURE

Part# 100-4701

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $199.40

100-6120

13:1

SEAL KIT (Not illustrated)

Part# 100-6120

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $74.24

104-6134

14

COUPLER-FACE, FLUSH

Part# 104-6134

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $188.48

105-8396

14:1

SEAL KIT (Not illustrated)

Part# 105-8396 (Superseded to 106-7692)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $169.73

98-3269

17

DECAL

Part# 98-3269

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $26.83

93-7340

18

DECAL

Part# 93-7340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.07

323-47

19

SCREW-HH

Part# 323-47

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.95

3272-15

20

PIN-COTTER

Part# 3272-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.81

104-5988-03

22

TOOL-GUIDE, ROD

Part# 104-5988-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $252.07

104-5989

23

YOKE ASM

Part# 104-5989 (Superseded to 121-4560)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $284.50

99-4300

23:1

U-JOINT

Part# 99-4300

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $93.55

104-6105

23:2

YOKE-U-JOINT

Part# 104-6105 (Superseded to 121-4560)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $284.50

104-5917

24

YOKE-U-BOLT

Part# 104-5917

OEM Warranty Repair Part for Toro

Not available

104-5995

25

Bearing Strap Kit

Part# 104-5995

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.11

106-7740-03

26

HANDLE-TOOL, GUIDE

Part# 106-7740-03

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $262.32

32121-41

27

PIN-ROLL

Part# 32121-41

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.08
