22420 - Toro Bore Drive Head Attachment for Dingo Compact Utility Loader (SN: 404320000 - 999999999) Hydraulic Motor Assembly No. 98-8280 Parts Diagram

Bore Drive Head Attachment for Dingo Compact Utility Loader

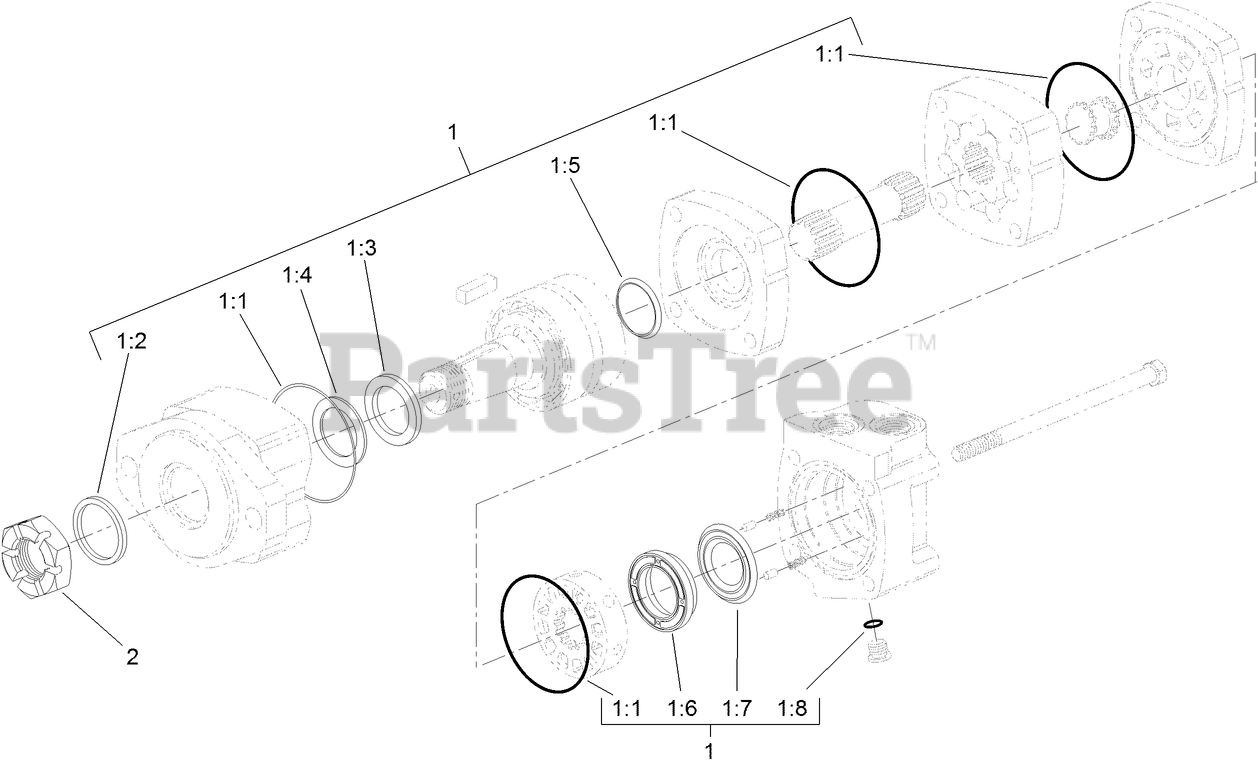

Hydraulic Motor Assembly No. 98-8280 Parts Diagram

  • Title

1

Toro 56-6890

SEAL KIT

$136.99

$

In Stock, only 1 left!

0

1:1

SEAL

Note: Not serviced separately

$

$

Not available

1:2

EXCLUSION SEAL

Note: Not serviced separately

$

$

Not available

1:3

Outer Face Seal

Note: Not serviced separately

$

$

Not available

1:4

Inner Face Seal

Note: Not serviced separately

$

$

Not available

1:5

Shaft Face Seal

Note: Not serviced separately

$

$

Not available

1:6

SHAFT SEAL

Note: Not serviced separately

$

$

Not available

1:7

Back-Up Washer

Note: Not serviced separately

$

$

Not available

1:8

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

2

Toro 99-3139

NUT

$16.99

$

Usually ships in 3-6 days

0
