22429 - Toro Stump Grinder for Dingo Compact Utility Loader (SN: 312000001 - 312999999) (2012) SHIELD AND GUARD ASSEMBLY Parts Diagram

Stump Grinder for Dingo Compact Utility Loader

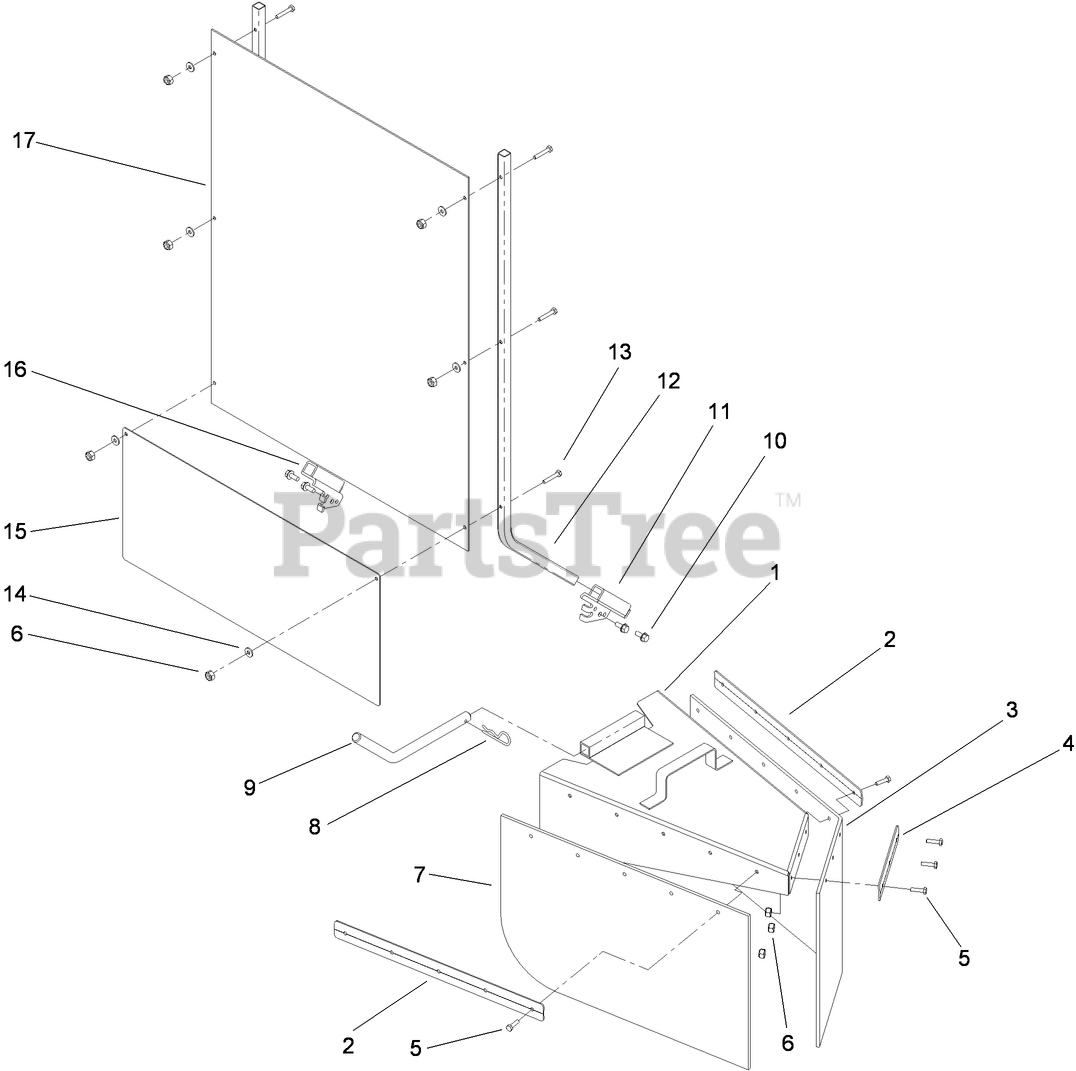

SHIELD AND GUARD ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2012-03

CHIPPER GUARD ASM

$948.99

$

Usually ships in 3-6 days

0

2

Toro 104-2019-03

CLAMP-SKIRT

$46.99

$

Usually ships in 3-6 days

0

3

Toro 104-2022

GUARD-SKIRT, REAR

$299.99

$

Usually ships in 3-6 days

0

4

Toro 104-2021-03

CLAMP-SKIRT

$36.99

$

Usually ships in 3-6 days

0

5

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 10

0

6

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

7

Toro 104-2023

GUARD-SKIRT, FRONT

$230.99

$

Usually ships in 3-6 days

0

8

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, Qty 7

0

9

Toro 104-2018

PIN-HINGE

$150.99

$

Usually ships in 3-6 days

0

10

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 104-5817-03

BRACKET-SUPPORT, LH

$98.99

$

Usually ships in 3-6 days

0

12

Toro 104-5815-03

SUPPORT-SHIELD

$136.99

$

Usually ships in 3-6 days

0

13

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

14

Toro 3256-78

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

15

Toro 104-5820

SKIRT-PROTECTOR

$237.99

$

Usually ships in 3-6 days

0

16

Toro 104-5818-03

BRACKET-SUPPORT, RH

$98.99

$

Usually ships in 3-6 days

0

17

Toro 104-5827

SHIELD-LEXAN

$721.99

$

Usually ships in 3-6 days

0
