22429 - Toro Stump Grinder for Dingo Compact Utility Loader (SN: 314000001 - 314999999) (2014) HYDRAULIC MOTOR AND BRAKE ASSEMBLY Parts Diagram

Stump Grinder for Dingo Compact Utility Loader

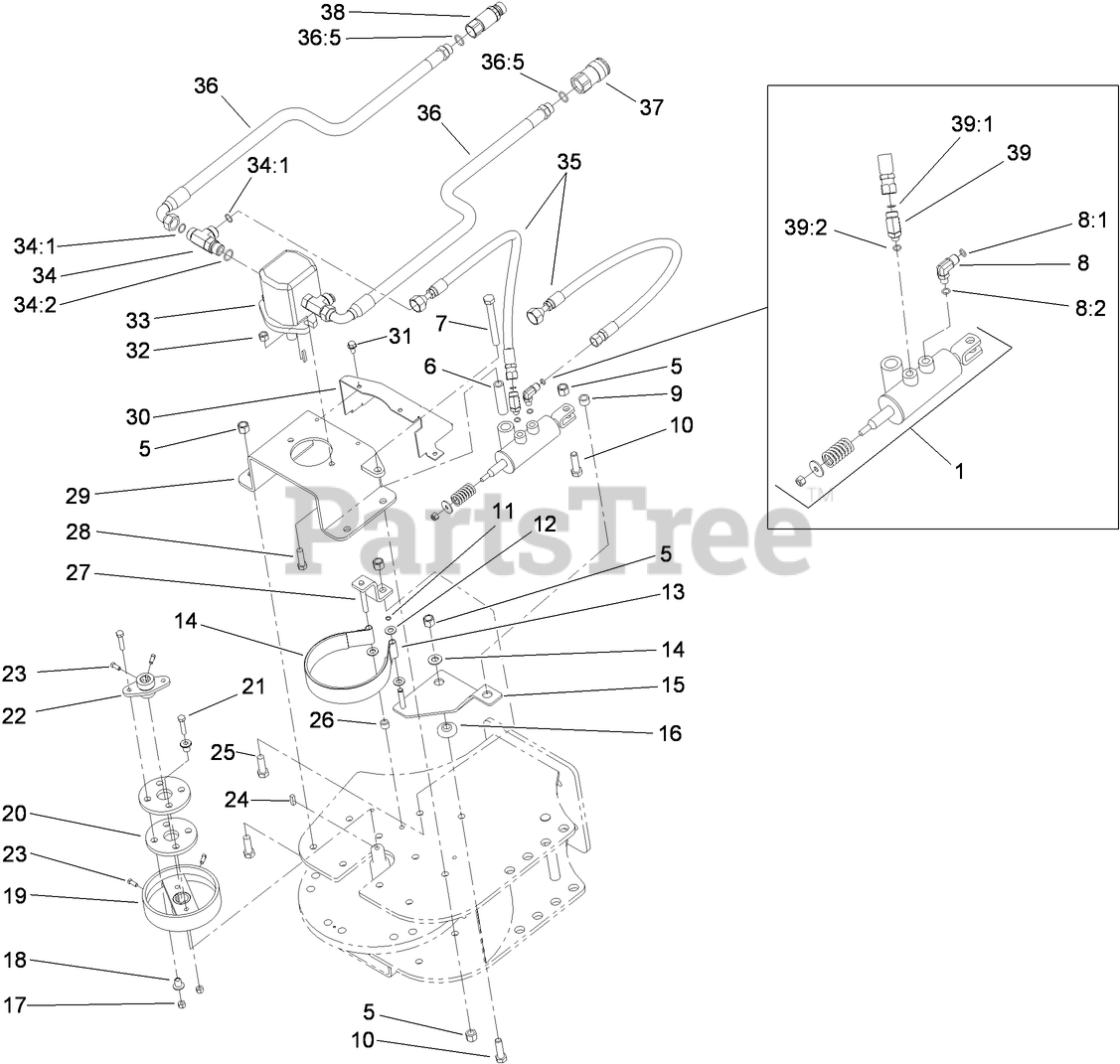

HYDRAULIC MOTOR AND BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-6094

CYLINDER ASM

$1081.99

$

Usually ships in 3-6 days

0

5

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 104-5801

SPACER-CYLINDER

$

$

Not available

7

Toro 325-19

SCREW-HH

$8.99

$

In Stock, only 2 left!

0

8

Toro 340-97

FITTING-ELBOW 90

$46.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

8:2

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

9

Toro 104-5825

SPACER-CLEVIS

$39.99

$

Usually ships in 3-6 days

0

10

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

11

Toro 32120-46

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 104-2038

BRAKE BAND ASM

$182.99

$

Usually ships in 3-6 days

0

14

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 104-2042-03

BRAKE BRACKET ASM

$268.99

$

Usually ships in 3-6 days

0

16

Toro 104-1991

SPACER-BRAKE

$125.99

$

Usually ships in 3-6 days

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 71-4411

SPACER

$3.49

$

In Stock, only 3 left!

0

19

Toro 104-2037

Drum-Brake

$588.99

$

Usually ships in 3-6 days

0

20

Toro 44-2230

COUPLING-RUBBER
(Superseded to 115-4523)

$59.99

$

In Stock, Qty 20+

0

21

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 104-5830

HUB/SPACER ASM

$459.99

$

Usually ships in 3-6 days

0

23

Toro 3241-5

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

24

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 7

0

25

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

26

Toro 52-2480

SPACER-WHEEL

$6.99

$

In Stock, Qty 13

0

27

Toro 104-5800-03

BRAKE ROD ASM

$207.99

$

Usually ships in 3-6 days

0

28

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

29

Toro 104-5806-03

MOTOR MOUNT ASM

$744.99

$

Usually ships in 3-6 days

0

30

Toro 104-5836-03

COVER-BRAKE

$154.99

$

Usually ships in 3-6 days

0

31

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

32

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

33

Toro 104-2010

MOTOR-HYD

$2634.99

$

Usually ships in 3-6 days

0

34

Toro 340-22

FITTING-TEE

$115.99

$

Usually ships in 3-6 days

0

34:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

34:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

35

Toro 104-5835

HYDRAULIC HOSE ASM

$254.99

$

Usually ships in 3-6 days

0

36

Toro 104-2034

HOSE-HYDRAULIC

$568.99

$

Usually ships in 3-6 days

0

36:5

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

37

Toro 104-6134

COUPLER-FACE, FLUSH

$283.99

$

Usually ships in 3-6 days

0

38

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$299.99

$

Usually ships in 3-6 days

0

38:1

Toro 100-6120

SEAL KIT

Note: Not illustrated

$114.99

$

Usually ships in 3-6 days

0

39

Toro 340-54

ELBOW-45 DEG

$70.99

$

Usually ships in 3-6 days

0

39:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

39:2

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0
