22436x8A - Murray 22" Walk-Behind Mower (1998) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

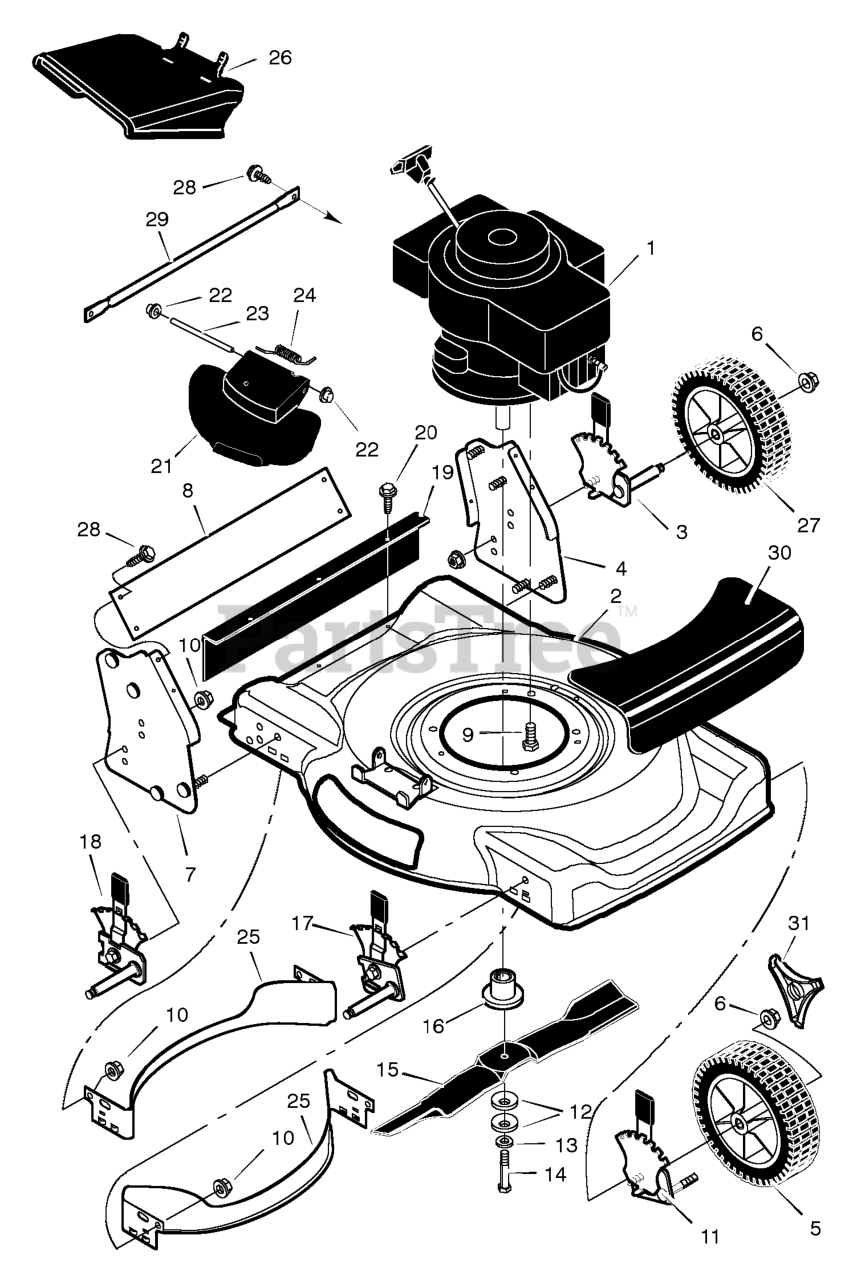

Mower Housing Assembly Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 776022MA

Housing

$

$

Not available

3

Murray 672679

Height Adjuster, Left Rear

$11.99

$

Usually ships in 2-12 days

0

4

Murray 672675E122

Bracket, Left Handle

$17.99

$

Usually ships in 2-12 days

0

5

Murray 672437

Wheel and Tire, Front

$8.99

$

Usually ships in 2-12 days

0

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 672675E122

Bracket, Left Handle

$17.99

$

Usually ships in 2-12 days

0

8

Murray 672660E122

Brace, Handle Bracket

$11.99

$

Usually ships in 2-12 days

0

9

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672677

Height Adjuster, Left Front

$11.99

$

Usually ships in 2-12 days

0

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X142MA

Bolt, Hex

$8.49

$

In Stock, Qty 7

0

15

Murray 672573E701MA

Blade

$

$

Not available

16

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 672676

Height Adjuster, Right Front

$

$

Currently unavailable

18

Murray 672678

Height Adjuster, Right Rear

$11.99

$

Usually ships in 2-12 days

0

19

Murray 672684

Guard, Rear

$18.99

$

In Stock, only 2 left!

0

20

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

21

Murray 672618

Cover, Mulcher

$6.49

$

Usually ships in 2-12 days

0

22

Murray 028X42MA

Push- On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X19 Z

Pin, Pivot

$

$

Currently unavailable

24

Murray 166X38MA

Spring

$4.99

$

In Stock, only 2 left!

0

25

Murray 672332E701

Baffle

$

$

Currently unavailable

26

Murray 672619

Deflector, Chute

$

$

Currently unavailable

27

Murray 672434

Wheel and Tire, Rear

$14.99

$

Usually ships in 2-12 days

0

28

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

29

Murray 672504E701

Brace

$

$

Currently unavailable

30

Murray 672333

Cover, Front

$

$

Currently unavailable

31

Murray 672446

Cap, Hub

$

$

Not available

--

Murray F-98520

Book, Instruction

$

$

Currently unavailable
