22447 - Toro Trencher Head for Dingo Compact Utility Loader (SN: 200000001 - 200000500) (2000)

Trencher Head for Dingo Compact Utility Loader

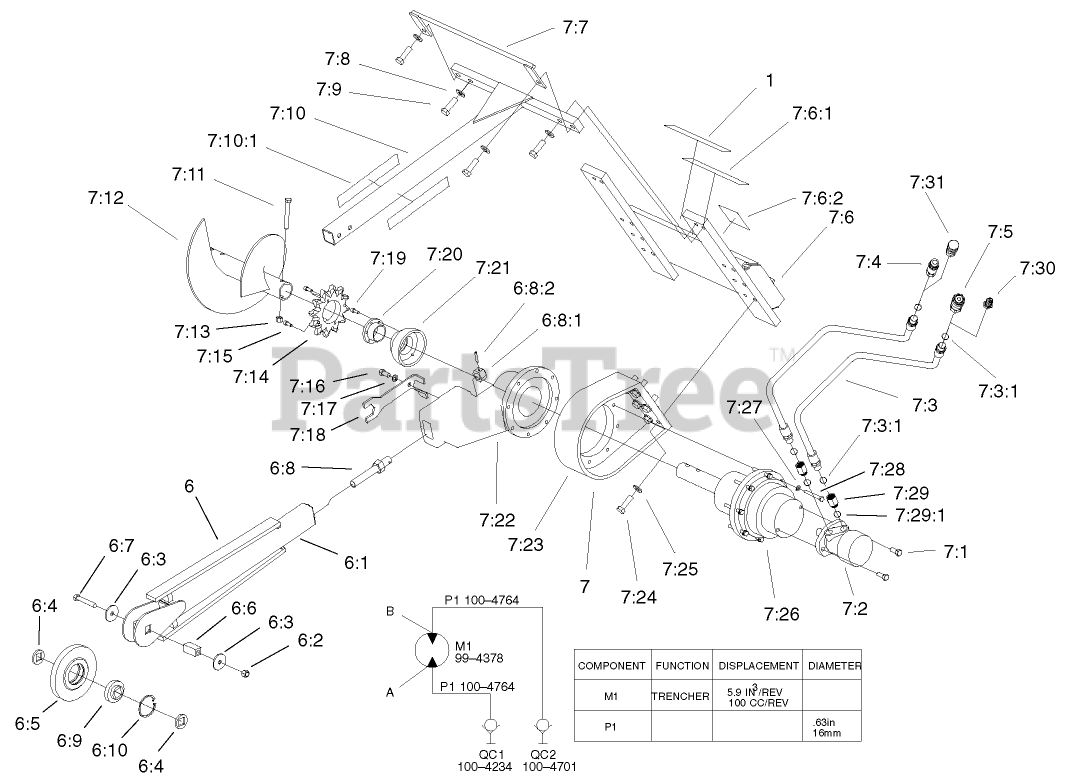

22447 - Toro Trencher Head for Dingo Compact Utility Loader (SN: 200000001 - 200000500) (2000) > Parts Diagrams (1) > TRENCHER ASSEMBLY

  • Title
98-4683

1

DECAL-ATTACHMENT, DINGO

Part# 98-4683

OEM Warranty Repair Part for Toro

Not available

104-1997

6

TRENCHER BOOM ASM

Part# 104-1997

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1211.98

104-1998

6:1

Boom ASM

Part# 104-1998 (Superseded to 104-1998-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $659.40

99-4371

6:2

NUT-LOCK

Part# 99-4371

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.63

104-1992

6:3

WASHER-ROLLER

Part# 104-1992

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $41.32

104-1993

6:4

SPACER-ROLLER

Part# 104-1993

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $56.21

104-1996

6:5

ROLLER-NOSE

Part# 104-1996

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $331.48

104-1994

6:6

PIN-ROLLER

Part# 104-1994

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $66.13

326-3

6:7

SCREW-HH

Part# 326-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.97

99-4324

6:8

ADJ SCREW ASM

Part# 99-4324 (Superseded to 100-7291)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $119.50

99-4372

6:8:1

NUT-HEX

Part# 99-4372

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.34

32121-15

6:8:2

PIN-ROLL

Part# 32121-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.16

104-1995

6:9

BEARING

Part# 104-1995

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $227.97

99-4373

6:10

RING-INT

Part# 99-4373 (Superseded to 104-1945)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $15.24

7

Trencher Head ASM

Part#

Not available

325-29

7:1

SCREW-HH, LH

Part# 325-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.19

99-4378

7:2

MOTOR-HYD(OPTIONAL), 100CC-1 INCH SHAFT

Part# 99-4378

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3108.79

100-4764

7:3

HOSE-HYDRAULIC

Part# 100-4764

OEM Warranty Repair Part for Toro

Not available

237-80

7:3:1

O-RING

Part# 237-80

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.75

100-4701

7:4

NIPPLE-CONNECT, PRESSURE

Part# 100-4701

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $199.40

100-4234

7:5

COUPLER-FACE, FLUSH

Part# 100-4234 (Superseded to 104-6134)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $188.48

99-4322

7:6

Frame ASM

Part# 99-4322 (Superseded to 104-5853)

OEM Warranty Repair Part for Toro

Not available

99-9952

7:6:1

DECAL-DANGER

Part# 99-9952

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.63

99-9953

7:6:2

DECAL-DANGER

Part# 99-9953

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $32.45

99-4331

7:7

HOSE GUIDE ASM

Part# 99-4331 (Superseded to 99-4331-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $91.68

3256-27

7:8

WASHER-FLAT

Part# 3256-27

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.92

327-26

7:9

SCREW-HH

Part# 327-26

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.32

99-4326

7:10

SAFETY RAIL ASM

Part# 99-4326

OEM Warranty Repair Part for Toro

Not available

99-9952

7:10:1

DECAL-DANGER

Part# 99-9952

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.63

99-4333

7:12

AUGER

Part# 99-4333 (Superseded to 104-1916-03)

OEM Warranty Repair Part for Toro

Not available

3296-23

7:13

NUT-LOCK, NI

Part# 3296-23

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.79

100-1699

7:14

SAND SPROCKET-12T

Part# 100-1699

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $427.77

3274-18

7:15

SCREW-HSH

Part# 3274-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $6.67

325-4

7:16

SCREW-HH

Part# 325-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.04

3253-7

7:17

WASHER-LOCK

Part# 3253-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.79

99-4323

7:18

SPANNER

Part# 99-4323

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $163.58

92-5697

7:19

SCREW-HSH

Part# 92-5697

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.36

99-4334

7:20

LOCK-TAPER

Part# 99-4334

OEM Warranty Repair Part for Toro

Not available

99-4367

7:21

PROTECTOR-SEAL

Part# 99-4367

OEM Warranty Repair Part for Toro

Not available

99-4321

7:22

MOUNT-BOOM

Part# 99-4321

OEM Warranty Repair Part for Toro

Not available

99-4320

7:23

MOUNT-DRIVE, PLANETARY

Part# 99-4320

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1192.87

327-26

7:24

SCREW-HH

Part# 327-26

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.32

3256-27

7:25

WASHER-FLAT

Part# 3256-27

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.92

99-4358

7:26

GEARBOX ASM

Part# 99-4358

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7402.29

3253-5

7:27

WASHER-LOCK

Part# 3253-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.35

323-14

7:28

SCREW-HH

Part# 323-14

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.99

100-4763

7:29

ADAPTER-CONVERSION

Part# 100-4763

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $115.00

99-4368

7:29:1

O-RING

Part# 99-4368

OEM Warranty Repair Part for Toro

Not available

100-4702

7:30

DISCONNECT-QUICK, MALE

Part# 100-4702

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $68.53

100-4703

7:31

DISCONNECT-QUICK, FEMALE

Part# 100-4703

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $122.40

325-35

7:11

SCREW-HH

Part# 325-35

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.28

99-4375

7:26:1

SEAL-OIL

Part# 99-4375

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available

99-4374

7:26:2

O-RING

Part# 99-4374

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.98

99-4377

7:26:3

SET-GEAR, GEARBOX

Part# 99-4377

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2811.27

99-4376

7:2:1

KIT-SEAL, MOTOR

Part# 99-4376

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $454.71

100-4165

7:31:1

SEAL KIT

Part# 100-4165

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available

100-6120

7:4:1

SEAL KIT

Part# 100-6120

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $74.24

100-6119

7:5:1

KIT-SEAL

Part# 100-6119

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $76.07
