22464 - Toro Crumber Kit for Dingo Compact Utility Loader CRUMBER ASSEMBLY Parts Diagram

Crumber Kit for Dingo Compact Utility Loader

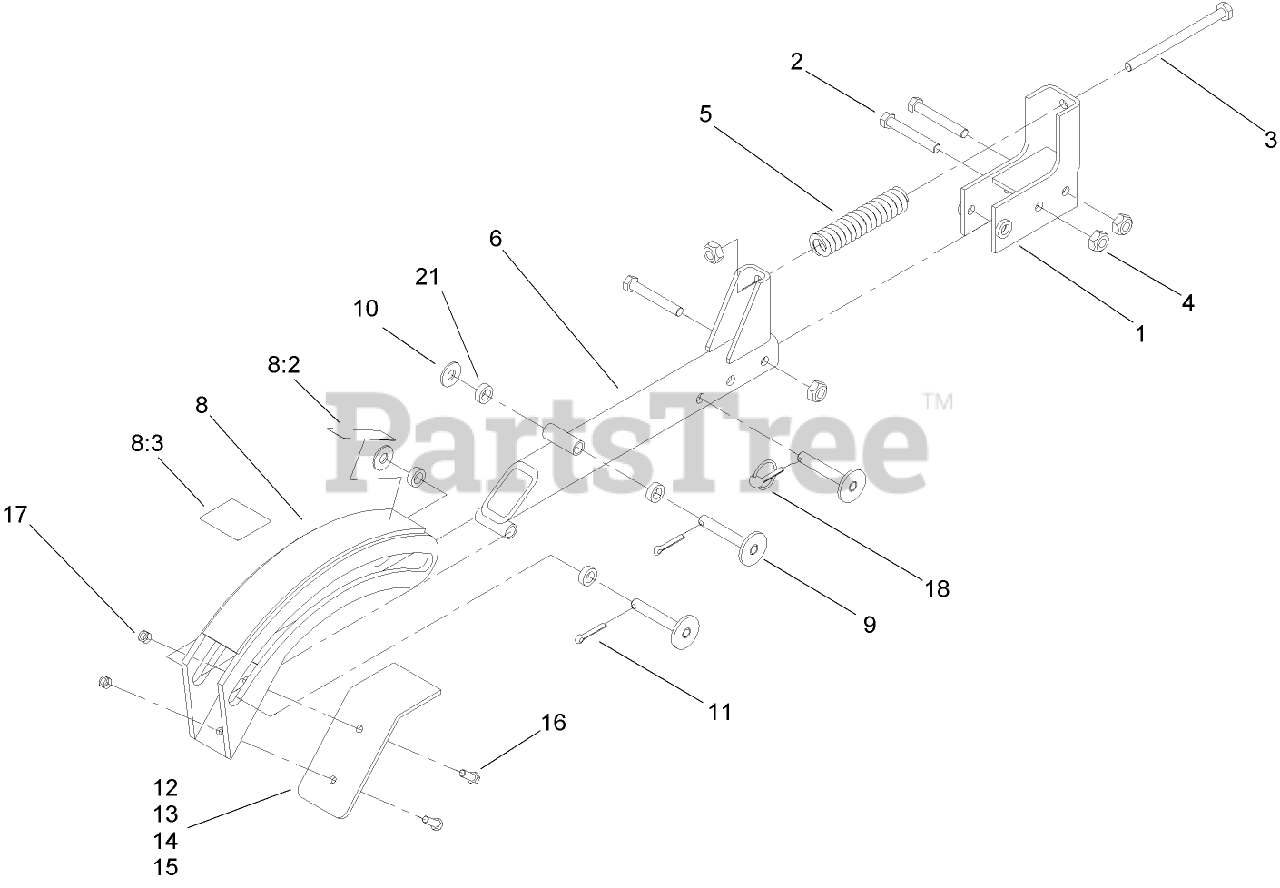

CRUMBER ASSEMBLY Parts Diagram

  • Title

1

Toro 104-0628-03

BRACKET SPRING ASM

$

$

Not available

2

Toro 325-14

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

3

Toro 325-37

SCREW-HH

$7.49

$

In Stock, Qty 20+

0

4

Toro 32146-13

NUT-HEX

$4.99

$

In Stock, only 4 left!

0

5

Toro 86-2560-03

Spring-Comp

$73.99

$

Usually ships in 3-6 days

0

6

Toro 100-6268-03

CRUMBER SUPPORT ASM

$

$

Not available

8

Toro 100-0600

CRUMBER SLIDE ASM
(Superseded to 117-8856)

$406.99

$

Usually ships in 3-6 days

0

8:2

Toro 100-4650

DECAL-WARNING

$28.99

$

Usually ships in 3-6 days

0

8:3

Toro 108-1287

DECAL-WARNING

$19.99

$

Usually ships in 3-6 days

0

9

Toro 100-6271-03

PIN ASM

$59.99

$

Usually ships in 3-6 days

0

10

Toro 104-5942

WASHER-FLAT
(Superseded to 104-8419)

$3.49

$

Usually ships in 3-6 days

0

11

Toro 3272-30

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

12

Toro 100-6251-03

PLATE-4 inch

$

$

Not available

13

Toro 100-6275-03

PLATE-6 inch

$

$

Not available

14

Toro 100-6336-03

PLATE-8 inch

$

$

Not available

15

Toro 100-6335-03

PLATE-12 inch

$

$

Not available

16

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, only 3 left!

0

18

Toro 283-72

PIN-LYNCH

$13.99

$

Usually ships in 3-6 days

0

21

Toro 100-6273

BUSHING

$59.99

$

Usually ships in 3-6 days

0
