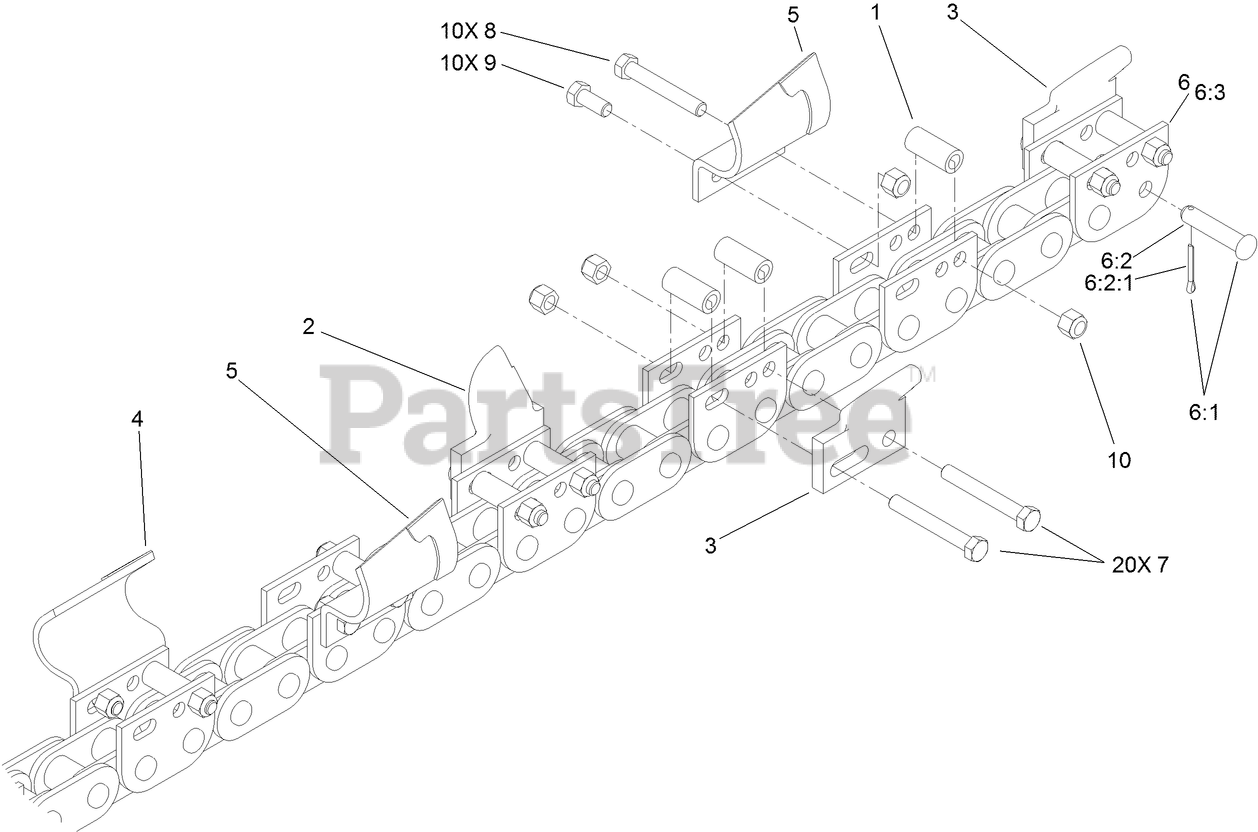

22493 - Toro 48" x 4" Combination Chain 48 Inch x 4 Inch Combination Chain Assembly Parts Diagram

48" x 4" Combination Chain

48 Inch x 4 Inch Combination Chain Assembly Parts Diagram

  • Title

1

Toro 98-8222

SPACER-TUBE

$10.99

$

Usually ships in 3-6 days

0

2

Toro 99-5922

TOOTH- ROCK, LH

$74.99

$

Usually ships in 3-6 days

0

3

Toro 99-5923

TOOTH-ROCK, RH

$74.99

$

Usually ships in 3-6 days

0

4

Toro 99-5924

TOOTH-SOIL, LH

$34.99

$

Usually ships in 3-6 days

0

5

Toro 99-5925

TOOTH-SOIL, RH

$34.99

$

Usually ships in 3-6 days

0

6

Toro 117-1301

CHAIN-BARE, 20 STATION

$1379.99

$

In Stock, only 1 left!

0

6:1

Toro 104-5855

PIN-CONNECTING

$56.99

$

Usually ships in 3-6 days

0

6:2

Toro 121-4453

PIN-CONNECTING (61MM)

$19.99

$

In Stock, only 1 left!

0

6:2:1

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 7

0

6:3

Toro 115-4039

LINK REPAIR KIT

$132.99

$

Usually ships in 3-6 days

0

7

Toro 104-5937

SCREW-HH

$5.49

$

In Stock, Qty 7

0

8

Toro 3211-42

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

9

Toro 104-5939

See Supercession: 3211-40
(Superseded to 3211-40)

$4.49

$

In Stock, Qty 5

0

10

Toro AU232-4616

NUT-HEX

$0.99

$

In Stock, Qty 8

0
