225 H 60 - Husqvarna Hedge Trimmer (1998-01) Cutter Assembly Parts Diagram

Hedge Trimmer

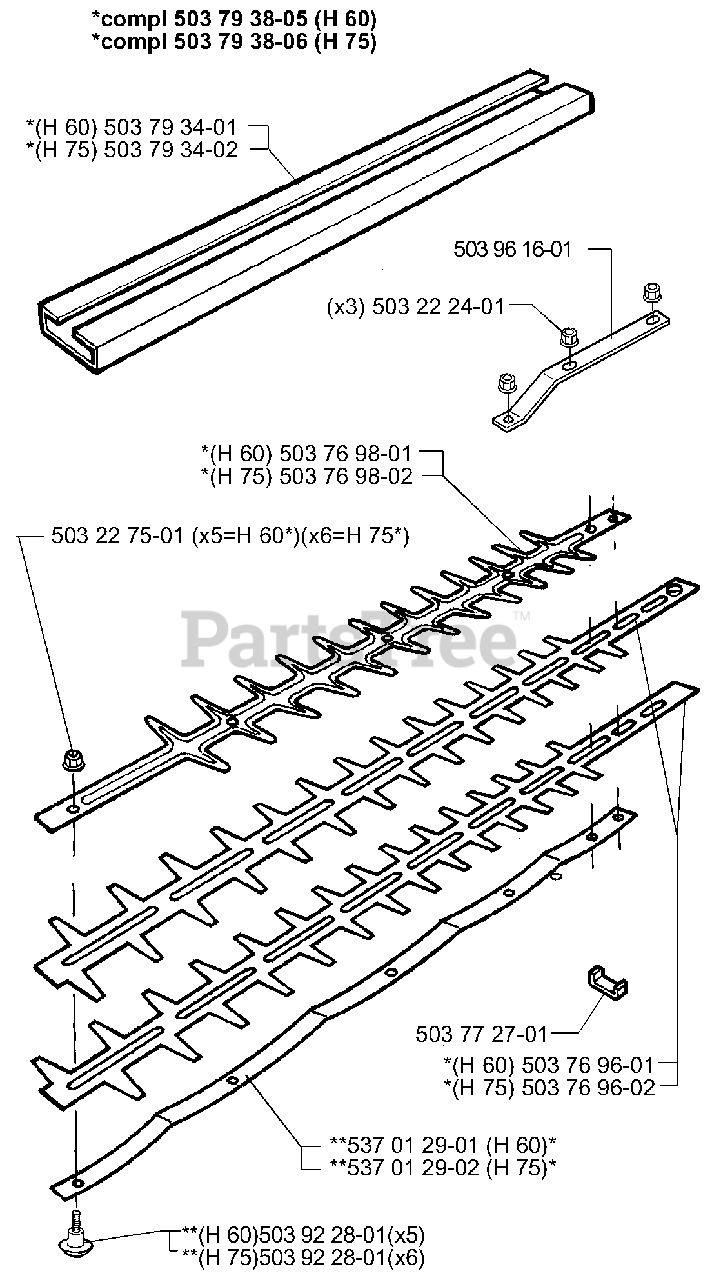

Cutter Assembly Parts Diagram

  • Title

503793805

Husqvarna 503793805

CUTTER ASSY/60CM
(Superseded to 537029603)

Note: (New Part)

$

$

Not available

503793806

Husqvarna 503793806

CUTTER ASSEMBLY
(Superseded to 537029604)

Note: (New Part)

$

$

Not available

503793401

Husqvarna 503793401

BLADE PROTECTOR
(Superseded to 537110805)

$

$

Not available

503793402

Husqvarna 503793402

BLADE PROTECTOR
(Superseded to 537110804)

$

$

Not available

503961601

Husqvarna 503961601

BRACKET

Note: (New Part)

$

$

Not available

503222401

Husqvarna 503222401

NUT

$2.49

$

In Stock, Qty 5

0

503769801

Husqvarna 503769801

GUIDE BAR
(Superseded to 537029301)

$

$

Not available

503769802

Husqvarna 503769802

GUIDE BAR
(Superseded to 537029302)

$

$

Not available

503227501

Husqvarna 503227501

NUT
(Superseded to 503220008)

Note: (New Part)

$5.99

$

In Stock, only 3 left!

0

503922801

Husqvarna 503922801

SHOULDER BOLT

Note: (New Part)

$

$

Not available

503922801

Husqvarna 503922801

SHOULDER BOLT

$

$

Not available

537012901

Husqvarna 537012901

GUIDE24
(Superseded to 503850003)

Note: (New Part)

$

$

Not available

537012902

Husqvarna 537012902

GUIDE/30"
(Superseded to 503850004)

Note: (New Part)

$

$

Not available

503772701

Husqvarna 503772701

Block

$

$

Not available

503769601

Husqvarna 503769601

CUTTER BLADE
(Superseded to 537029503)

$

$

Not available

503769602

Husqvarna 503769602

CUTTER BLADE
(Superseded to 537029504)

$

$

Not available
