225 H 60 - Husqvarna Hedge Trimmer (SN: 19970500001 - 19980900000) CARBURETOR & AIR FILTER Parts Diagram

Hedge Trimmer

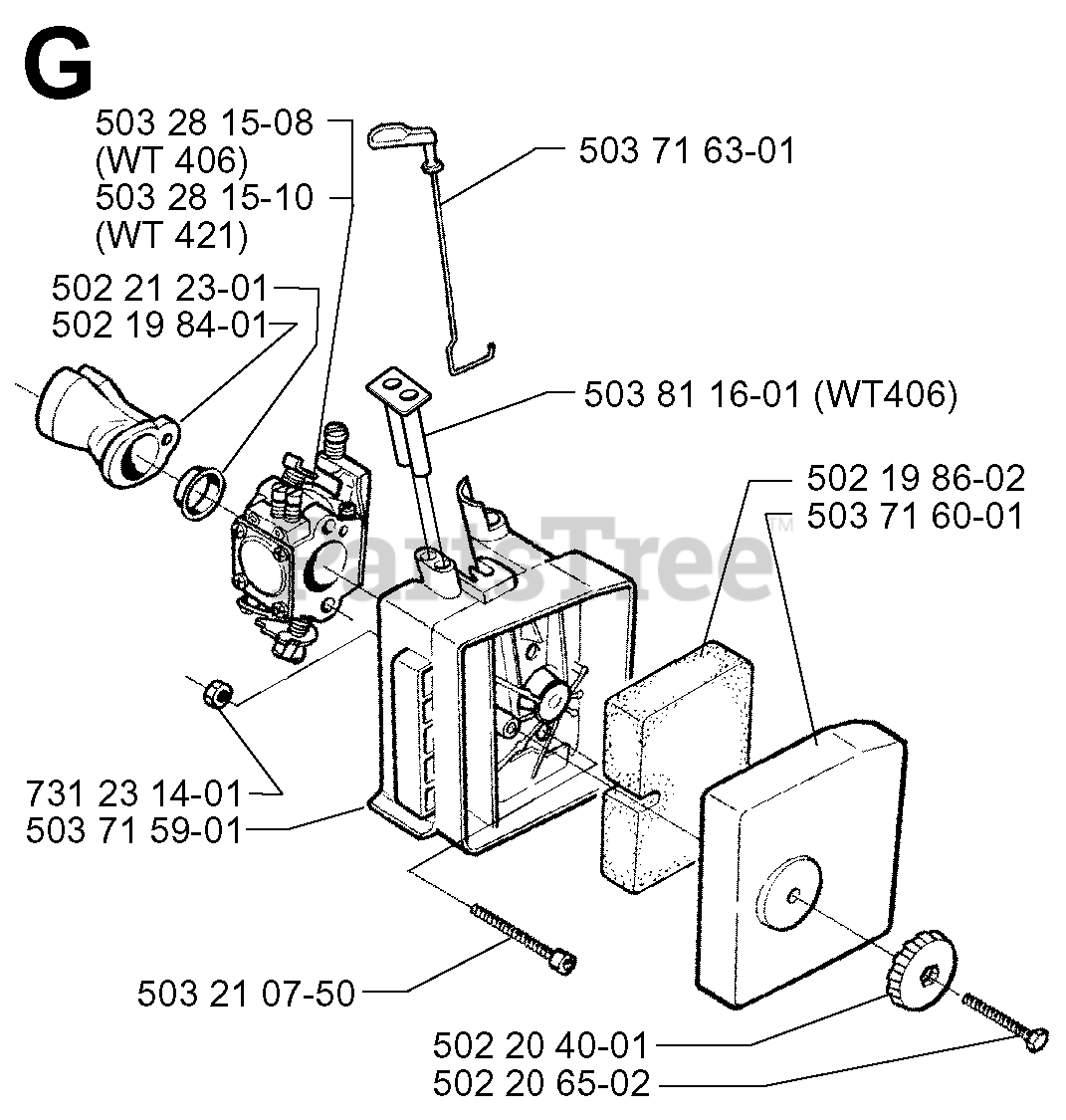

CARBURETOR & AIR FILTER Parts Diagram

  • Title

502 20 65-02

Husqvarna 502206502

SCREW 28MM THREAD LENGTH

$6.99

$

In Stock, Qty 8

0

503 71 60-01

Husqvarna 503716001

AIR FILTER COVER

$

$

Not available

503 81 16-01

Husqvarna 503811601

GUIDE SLEEVE

Note: WT406

$

$

Not available

502 20 40-01

Husqvarna 502204001

KNOB

$5.99

$

In Stock, Qty 20+

0

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

503 71 59-01

Husqvarna 503715901

HOLDER
(Superseded to 537024901)

$

$

Not available

502 19 84-01

Husqvarna 502198401

INDUCTION PIPE

$22.99

$

In Stock, only 4 left!

0

502 19 86-02

Husqvarna 502198602

AIR FILTER

$6.99

$

In Stock, only 2 left!

0

502 21 23-01

Husqvarna 502212301

GUIDE

$3.49

$

Usually ships in 3-10 days

0

503 71 63-01

Husqvarna 503716301

CHOKE CONTROL

$9.49

$

Usually ships in 3-10 days

0

503 28 15-10

Husqvarna 503281510

CARBURETOR WT-421 WALBRO
(Superseded to 503281516)

Note: WT 421

$

$

Not available

503 28 15-08

Husqvarna 503281508

CARBURETOR
(Superseded to 503281516)

Note: WT 406

$

$

Not available

503 21 07-50

Husqvarna 503210750

SCREW

$3.49

$

In Stock, only 1 left!

0
