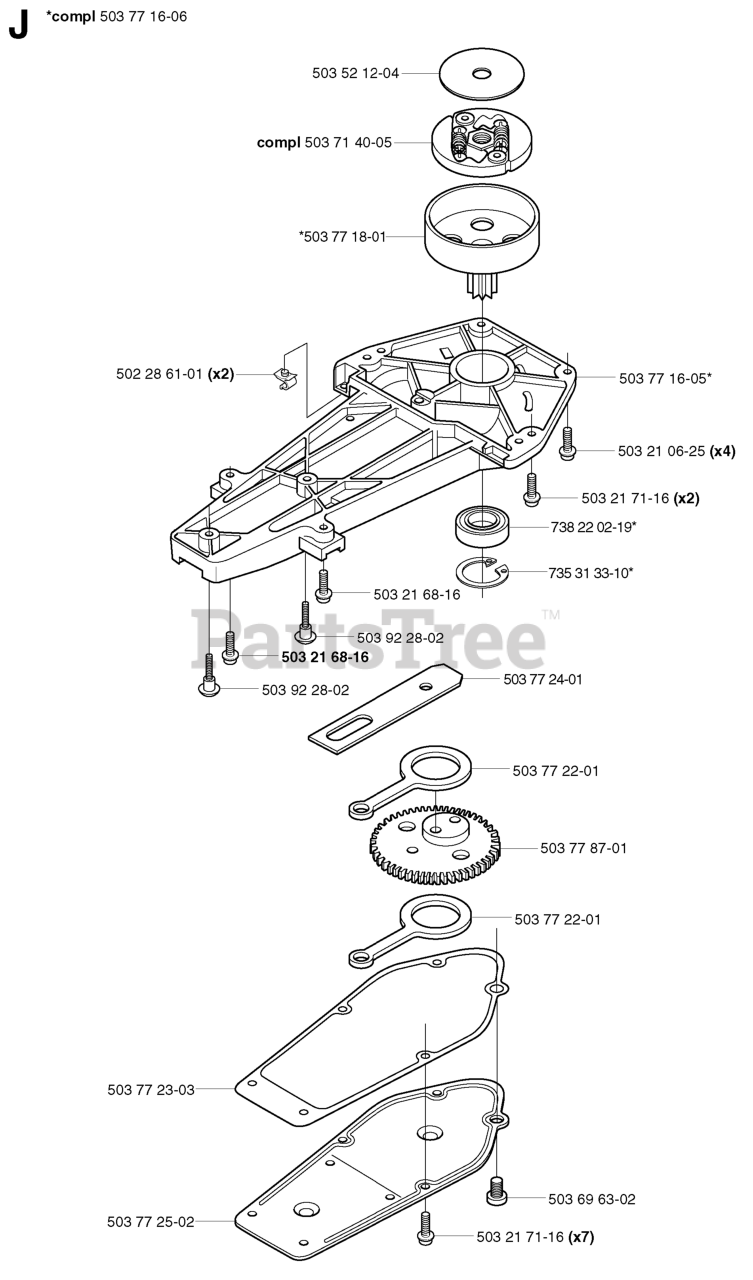

225 H 60 - Husqvarna Hedge Trimmer (SN: 20022200001 & Above) GEAR HOUSING Parts Diagram

Hedge Trimmer

GEAR HOUSING Parts Diagram

  • Title

503 21 68-16

Husqvarna 503216816

SCREW

$4.99

$

In Stock, only 2 left!

0

503 77 16-06

Husqvarna 503771606

TOP HOUSING COMP

$

$

Not available

503 21 71-16

Husqvarna 503217116

SCREW
(Superseded to 586444901)

$5.99

$

In Stock, Qty 7

0

503 21 71-16

Husqvarna 503217116

SCREW
(Superseded to 586444901)

$5.99

$

In Stock, Qty 7

0

503 77 22-01

Husqvarna 503772201

CONNECTING ROD

$13.99

$

Usually ships in 3-10 days

0

735 31 33-10

Husqvarna 735313310

RETAINING RING SGH 35

$5.99

$

Usually ships in 3-10 days

0

503 77 87-01

Husqvarna 503778701

GEAR

$

$

Not available

503 69 63-02

Husqvarna 503696302

SCREW

$3.49

$

Usually ships in 3-10 days

0

503 77 25-02

Husqvarna 503772502

GEAR COVER

$

$

Not available

503 77 18-01

Husqvarna 503771801

CLUTCH HOUSING

$

$

Not available

503 77 16-05

Husqvarna 503771605

TOP HOUSING

$

$

Not available

503 77 23-03

Husqvarna 503772303

GASKET

$5.76

$

Usually ships in 3-10 days

0

738 22 02-19

Husqvarna 738220219

BALL BEARING 6202-2RS1

$37.99

$

Usually ships in 3-10 days

0

503 71 40-05

Husqvarna 503714005

CLUTCH

$

$

Not available

503 92 28-02

Husqvarna 503922802

RP SHOULDER BOLT
(Superseded to 503922803)

$6.49

$

In Stock, only 2 left!

0

503 52 12-04

Husqvarna 503521204

WASHER

$7.99

$

Usually ships in 3-10 days

0

503 77 24-01

Husqvarna 503772401

PLATE

$7.99

$

Usually ships in 3-10 days

0

502 28 61-01

Husqvarna 502286101

CLAMP

$6.99

$

Usually ships in 3-10 days

0

503 21 06-25

Husqvarna 503210625

SCREW
(Superseded to 503214925)

$6.49

$

In Stock, Qty 8

0
