225 RD - Husqvarna String Trimmer (SN: 19942300001 - 19951000000) CARBURETOR DETAILS Parts Diagram

String Trimmer

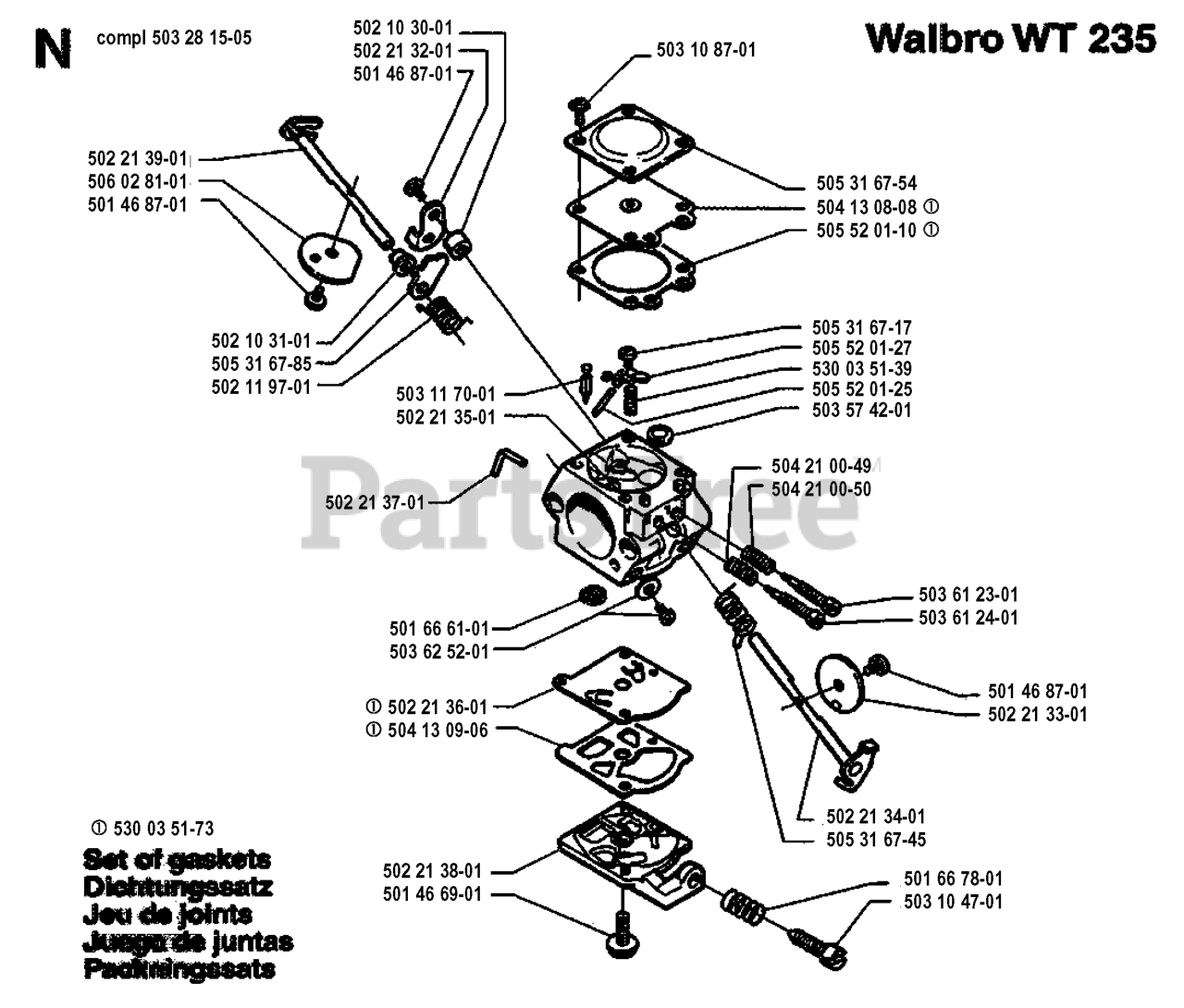

CARBURETOR DETAILS Parts Diagram

  • Title

503 11 70-01

Husqvarna 503117001

VALVE/INLET.

$35.99

$

In Stock, Qty 6

0

501 46 87-01

Husqvarna 501468701

SCREW

$7.99

$

In Stock, Qty 14

0

503 57 42-01

Husqvarna 503574201

WELCH PLUG

$9.99

$

In Stock, only 2 left!

0

505 52 01-10

Husqvarna 505520110

GASKET, METERING SIDE

Note: 530 03 51-73 SET OF GASKETS

$

$

Not available

502 21 38-01

Husqvarna 502213801

Cover, Fuel

$

$

Not available

530 03 51-39

Husqvarna 530035139

SPRING, MOTOR LEVER
(Superseded to 530035188)

$4.99

$

In Stock, Qty 9

0

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$7.49

$

Usually ships in 3-10 days

0

504 13 08-08

Husqvarna 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

Note: 530 03 51-73 SET OF GASKETS

$56.99

$

In Stock, Qty 9

0

502 21 37-01

Husqvarna 502213701

FUEL LINE FITTING

$

$

Not available

503 61 24-01

Husqvarna 503612401

HI SPEED NEEDLE

$

$

Not available

502 21 39-01

Husqvarna 502213901

CHOKE SHAFT

$

$

Not available

505 52 01-27

Husqvarna 505520127

LEVER

$

$

Not available

505 31 67-17

Husqvarna 505316717

SCREW
(Superseded to 502105501)

$

$

Not available

502 21 34-01

Husqvarna 502213401

SHAFT ASSY, THROTTLE

$

$

Not available

502 21 36-01

Husqvarna 502213601

DIAPHRAGM, FUEL PUMP
(Superseded to 504130807)

Note: 530 03 51-73 SET OF GASKETS

$37.99

$

In Stock, Qty 18

0

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$3.49

$

In Stock, only 3 left!

0

504 21 00-50

Husqvarna 504210050

SPRING/COMPRESSION
(Superseded to 530035293)

$

$

Not available

503 10 47-01

Husqvarna 503104701

SCREW

$10.99

$

In Stock, only 1 left!

0

503 62 52-01

Husqvarna 503625201

SCREW

$

$

Not available

503 28 15-05

Husqvarna 503281505

CARBURETOR
(Superseded to 577133001)

$95.99

$

In Stock, only 1 left!

0

505 31 67-85

Husqvarna 505316785

$

$

Currently unavailable

501 66 78-01

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$

$

Not available

502 21 35-01

Husqvarna 502213501

Plug

$

$

Not available

502 21 33-01

Husqvarna 502213301

Throttle Flap

$

$

Not available

502 21 32-01

Husqvarna 502213201

LEVER, THROTTLE

$

$

Not available

506 02 81-01

Husqvarna 506028101

FLAP

$

$

Not available

505 31 67-45

Husqvarna 505316745

SPRING

$

$

Not available

501 66 61-01

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 20+

0

501 46 69-01

Husqvarna 501466901

SCREW

$8.49

$

Usually ships in 3-10 days

0

502 10 30-01

Husqvarna 502103001

SPACER

$14.99

$

Usually ships in 3-10 days

0

504 13 09-06

Husqvarna 504130906

GASKET

Note: 530 03 51-73 SET OF GASKETS

$13.99

$

In Stock, only 2 left!

0

503 61 23-01

Husqvarna 503612301

Lo-Speed Needle

$

$

Not available

504 21 00-49

Husqvarna 504210049

SPRING, H-NEEDLE

$17.99

$

In Stock, only 4 left!

0

502 10 31-01

Husqvarna 502103101

BUSHING

$10.99

$

Usually ships in 3-10 days

0

505 31 67-54

Husqvarna 505316754

DIAPHRAGM COVER

$5.99

$

Usually ships in 3-10 days

0

502 11 97-01

Husqvarna 502119701

SPRING

$1.49

$

In Stock, only 1 left!

0
