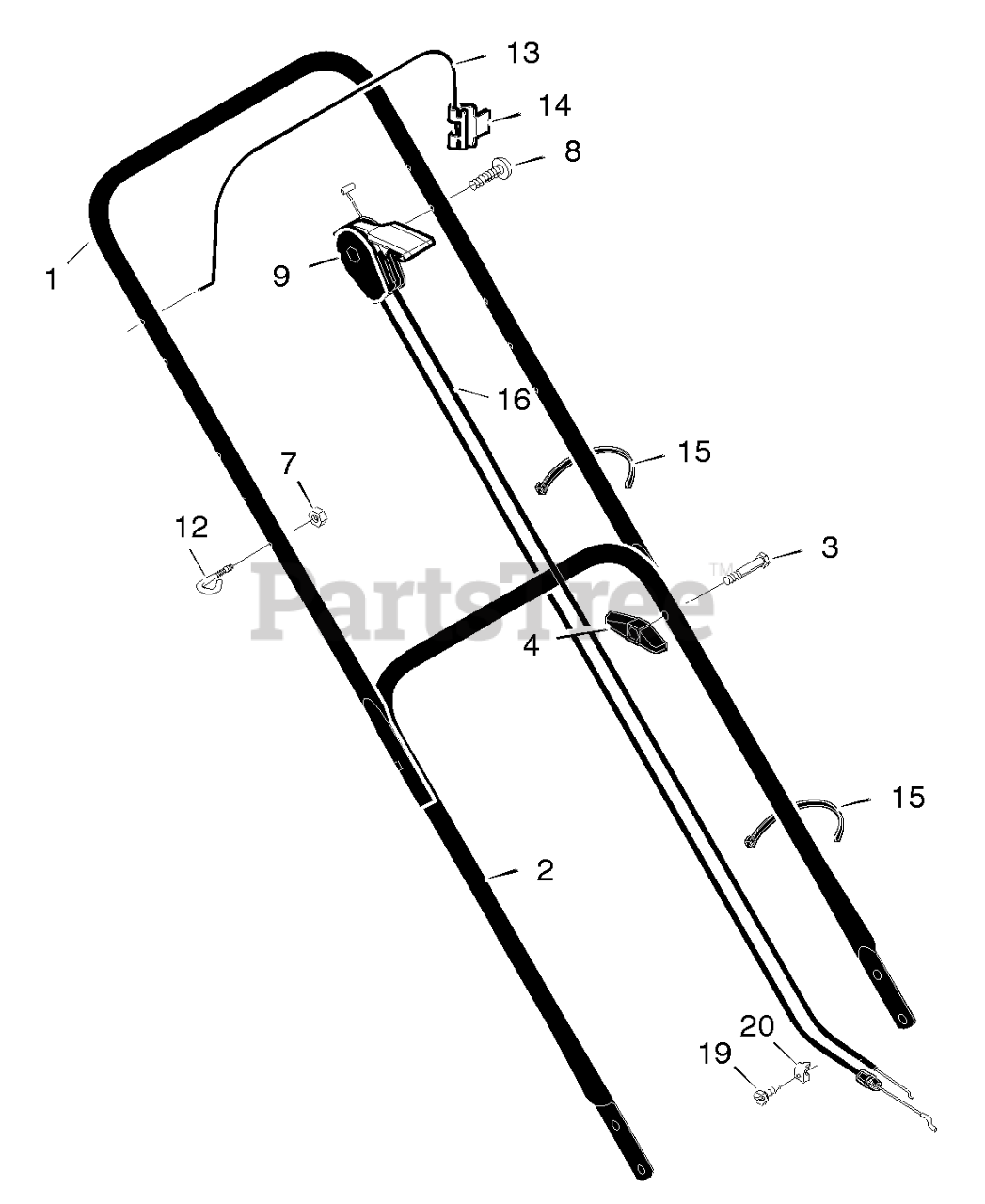

22506x92A - Murray 22" Walk-Behind Mower (1998) Handle Assembly Parts Diagram

22" Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Murray 672666E701MA

Handle, Upper (Black)

$142.99

$

Usually ships in 2-12 days

0

2

Murray 071137E701MA

Handle, Lower (Black)

$139.99

$

Usually ships in 2-12 days

0

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, Qty 7

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

8

Murray 025X14MA

Screw

$3.99

$

Usually ships in 2-12 days

0

9

Murray 672650MA

Throttle Control

$36.99

$

Usually ships in 2-12 days

0

12

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

13

Murray 043653E701MA

Engine Stop Lever

$34.99

$

Usually ships in 2-12 days

0

14

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

15

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

16

Murray 672566MA

Engine Stop Cable

$34.99

$

In Stock, only 1 left!

0

19

Murray 26X268MA

Screw

$3.99

$

Usually ships in 2-12 days

0

20

Murray 042294

Clamp

$

$

Not available
