225130x48A - Briggs & Stratton 22" Walk-Behind Mower (2004) (Mills) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

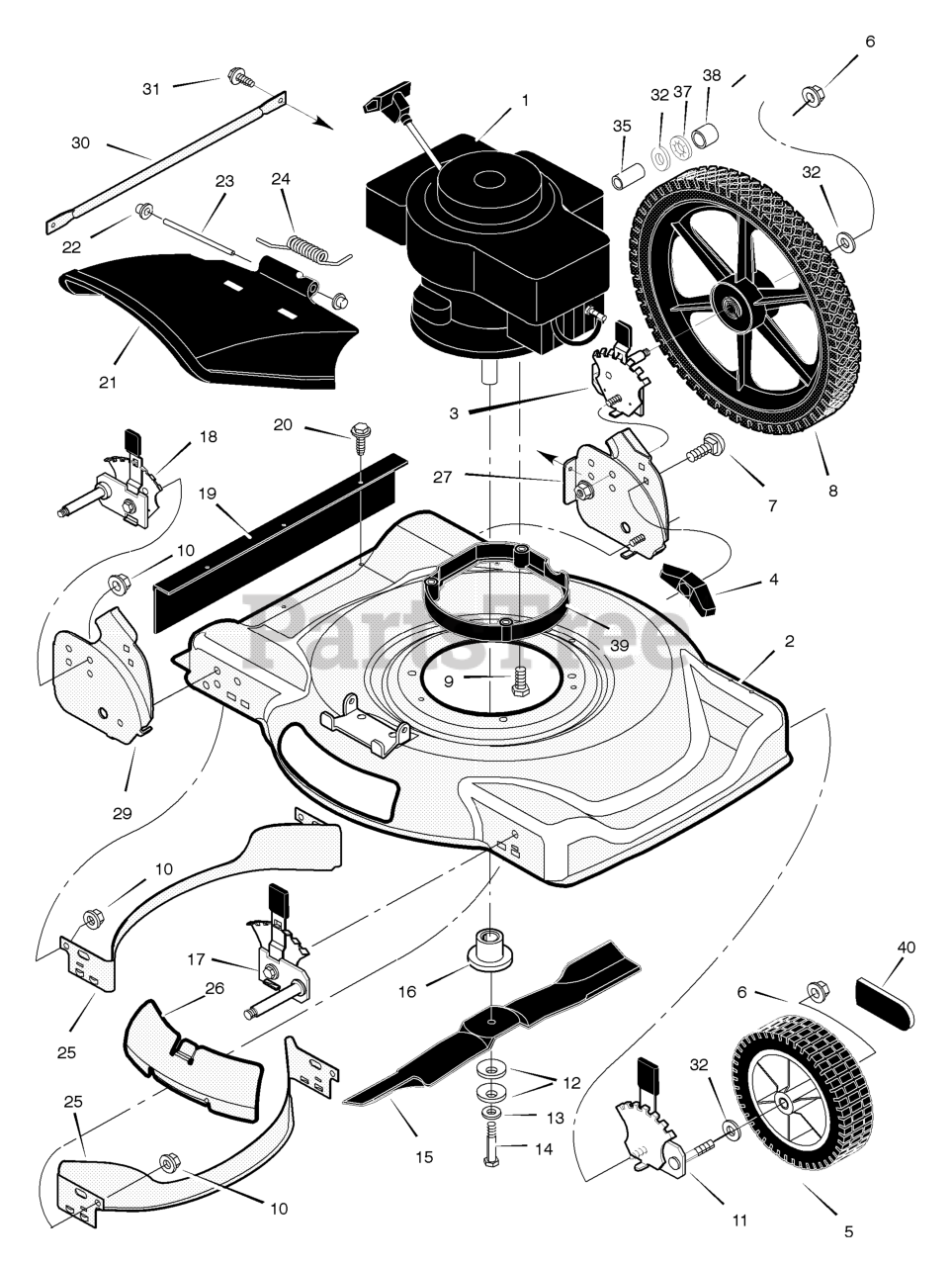

Mower Housing Assembly Parts Diagram

  • Title

3

Engine

$

$

Not available

2

Murray 776024MA

Housing

$270.99

$

Usually ships in 2-12 days

0

3

Murray 1101683

Height Adjuster, Left Rear

$14.99

$

Usually ships in 2-12 days

0

4

Murray 071495MA

Knob

$4.99

$

In Stock, only 3 left!

0

5

Murray 071132MA

Wheel and Tire, Front

$36.99

$

In Stock, only 2 left!

0

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

8

Murray 071841MA

Wheel and Tire, Rear
(Superseded to 672074MA)

$

$

Not available

9

Murray 025X11MA

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672601MA

Height Adjuster, Left Front

$87.99

$

Usually ships in 2-12 days

0

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X153MA

Bolt, Hex

$4.49

$

Usually ships in 2-12 days

0

15

Murray 1101120E701MA

Blade, Mulcher

$24.99

$

In Stock, only 2 left!

0

16

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 672600MA

Height Adjuster, Right Front

$82.99

$

In Stock, only 1 left!

0

18

Murray 1101682

Height Adjuster, Right Rear

$14.99

$

Usually ships in 2-12 days

0

19

Murray 672738MA

Guard, Rear

$32.99

$

Usually ships in 2-12 days

0

20

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

21

Murray 672421MA

Deflector, Chute

$38.99

$

Usually ships in 2-12 days

0

22

Murray 028X42MA

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

24

Murray 0166X5MA

Spring

$3.99

$

Usually ships in 2-12 days

0

25

Murray 672744E701MA

Baffle

$49.99

$

Usually ships in 2-12 days

0

26

Murray 672422 Z

Plate, Mulcher

$

$

Currently unavailable

27

Murray 1101305E700

Bracket, Left Handle

$

$

Currently unavailable

29

Murray 1101304E700

Bracket, Right Handle

$

$

Currently unavailable

30

Murray 672728E700

Brace

$5.99

$

Usually ships in 2-12 days

0

31

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

32

Murray 017X91 Z

Washer

$

$

Currently unavailable

34

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

35

Murray 672727

Tube

$20.99

$

Usually ships in 2-12 days

0

36

Murray 17X102MA

Washer
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

37

Murray 028X81

Nut, Speed

$3.49

$

Usually ships in 2-12 days

0

38

Murray 750570

Cap

$3.49

$

Usually ships in 2-12 days

0

39

Murray 672671MA

Base, Engine

$16.99

$

Usually ships in 2-12 days

0

40

Murray 043615MA

Cap, Hub

$4.49

$

Usually ships in 2-12 days

0

--

Murray F-040419L

Book, Instruction

$

$

Currently unavailable
