22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 400000000 - 405539999) LH Track Assembly Parts Diagram

Dingo Compact Utility Loader

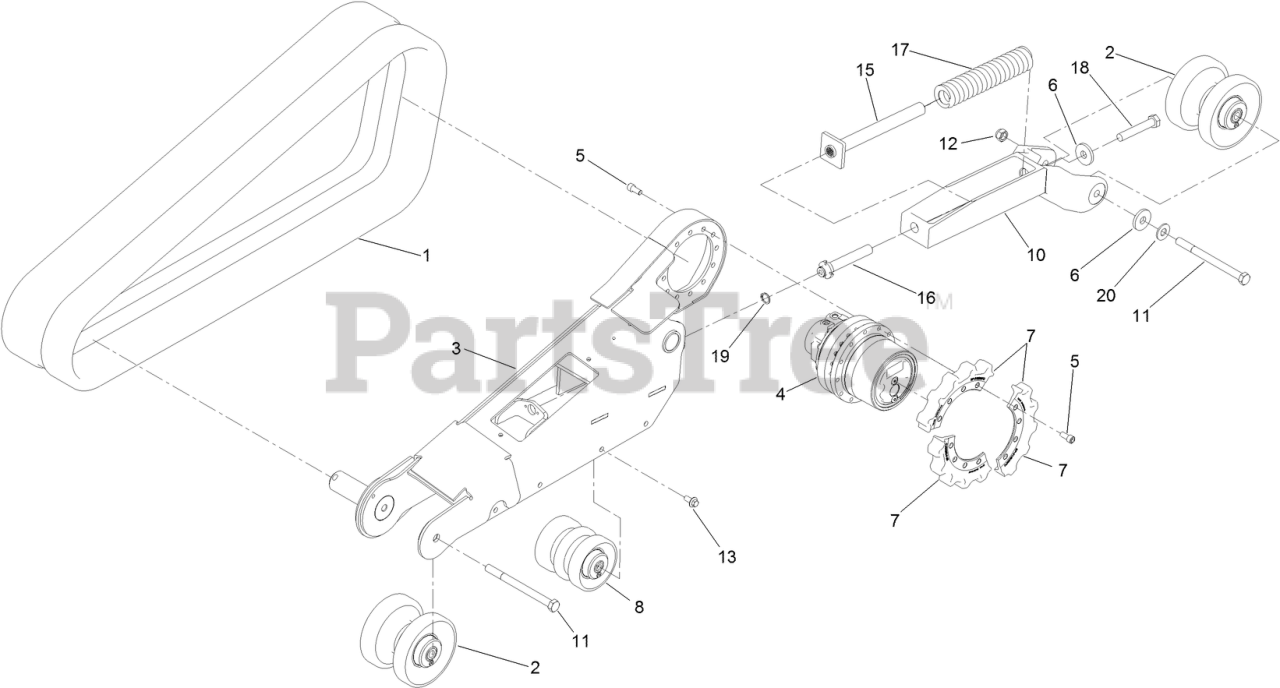

LH Track Assembly Parts Diagram

  • Title

1

Toro 137-0354

TRACK
(Superseded to 136-4869)

$4147.99

$

Usually ships in 3-6 days

0

2

Toro 137-0505

FRONT WHEEL ASM

$1723.99

$

Usually ships in 3-6 days

0

3

Toro 138-2350

LH TRACK MOUNT ASM

$3289.99

$

Usually ships in 0 days

0

4

Toro 136-4751

DRIVE-TRACK

$9418.99

$

Usually ships in 3-6 days

0

5

Toro 114-3041

SCREW-HSH

$3.49

$

Usually ships in 3-6 days

0

6

Toro 133-0287

WASHER-WHEEL

$12.99

$

Usually ships in 3-6 days

0

7

Toro 136-4833

SPROCKET-DRIVE

$344.99

$

Usually ships in 3-6 days

0

8

Toro 137-0485

ROAD WHEEL ASM

$2522.99

$

Usually ships in 3-6 days

0

10

Toro 138-2261

TENSIONER ASM

$1855.99

$

Usually ships in 3-6 days

0

11

Toro 136-4831

BOLT-HH

$163.99

$

Usually ships in 3-6 days

0

12

Toro 136-4832

NUT-HEX

$12.99

$

Usually ships in 3-6 days

0

13

Toro 138-4699

SCREW-HHF

$21.99

$

Usually ships in 3-6 days

0

15

Toro 137-0543

SPRING CATCH ASM

$1358.99

$

Usually ships in 3-6 days

0

16

Toro 138-4669

SCREW-TENSIONER

$376.99

$

Usually ships in 3-6 days

0

17

Toro 136-4834

SPRING-COMPRESSION

$527.99

$

Usually ships in 3-6 days

0

18

Toro 139-4839

BOLT-TAP

$181.99

$

Usually ships in 3-6 days

0

19

Toro 32151-77

RING-RETAINING, EXTERNAL

$5.49

$

Usually ships in 3-6 days

0

20

Toro 115-0722

WASHER-PLAIN

$7.99

$

In Stock, Qty 8

0
