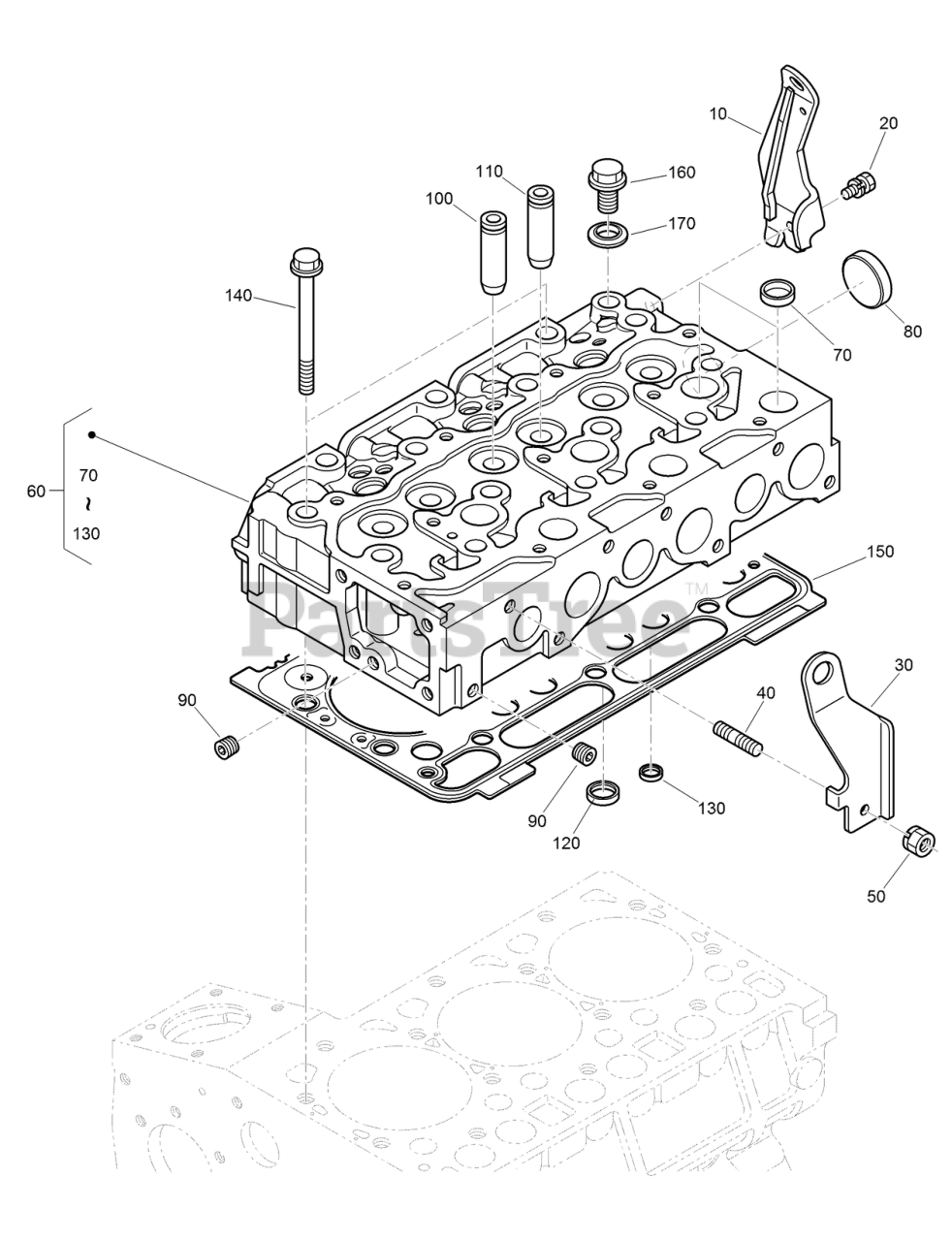

22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 414400000 - 415299999) Cylinder Head Assembly Parts Diagram

Dingo Compact Utility Loader

Cylinder Head Assembly Parts Diagram

  • Title

10

Toro 139-4705

HOOK-ENGINE, REAR

$57.99

$

Usually ships in 3-6 days

0

20

Toro 98-7526

BOLT

$1.49

$

Usually ships in 3-6 days

0

30

Toro 139-9756

HOOK-ENGINE, FRONT

$57.99

$

Usually ships in 3-6 days

0

40

Toro 139-9531

BOLT-STUD

$

$

Currently unavailable

50

Toro 100-9288

NUT

$3.99

$

Usually ships in 3-6 days

0

60

Toro 139-9777

HEAD-CYLINDER

$2908.99

$

Usually ships in 3-6 days

0

70

Toro 139-9522

PLUG-CUP

$

$

Currently unavailable

80

Toro 139-9523

CAP-SEALING

$

$

Currently unavailable

90

Toro 98-9687

PLUG

$4.99

$

Usually ships in 3-6 days

0

100

Toro 139-9665

GUIDE-VALVE, INLET

$

$

Currently unavailable

110

Toro 139-9626

GUIDE-VALVE, EXHAUST

$

$

Currently unavailable

120

Toro 139-9562

SEAT-VALVE, INLET

$

$

Currently unavailable

130

Toro 139-9561

SEAT-VALVE, EXHAUST

$

$

Currently unavailable

140

Toro 139-9580

BOLT-HEAD, CYLINDER

$

$

Currently unavailable

150

Toro 139-9645

GASKET-HEAD, CYLINDER

$211.99

$

Usually ships in 3-6 days

0

150

Toro 139-9644

GASKET-HEAD, CYLINDER

$211.99

$

Usually ships in 3-6 days

0

150

Toro 139-9646

GASKET-HEAD, CYLINDER

$211.99

$

Usually ships in 3-6 days

0

150

Toro 139-9647

GASKET-HEAD, CYLINDER

$211.99

$

Usually ships in 3-6 days

0

150

Toro 139-9648

GASKET-HEAD, CYLINDER

$211.99

$

Usually ships in 3-6 days

0

160

Toro 98-7762

PLUG

$4.49

$

Usually ships in 3-6 days

0

170

Toro 99-7590

WASHER-SEAL

$3.99

$

Usually ships in 3-6 days

0
