22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 415300000 - 999999999) Engine Mount and Air Intake Hose Assembly Parts Diagram

Dingo Compact Utility Loader

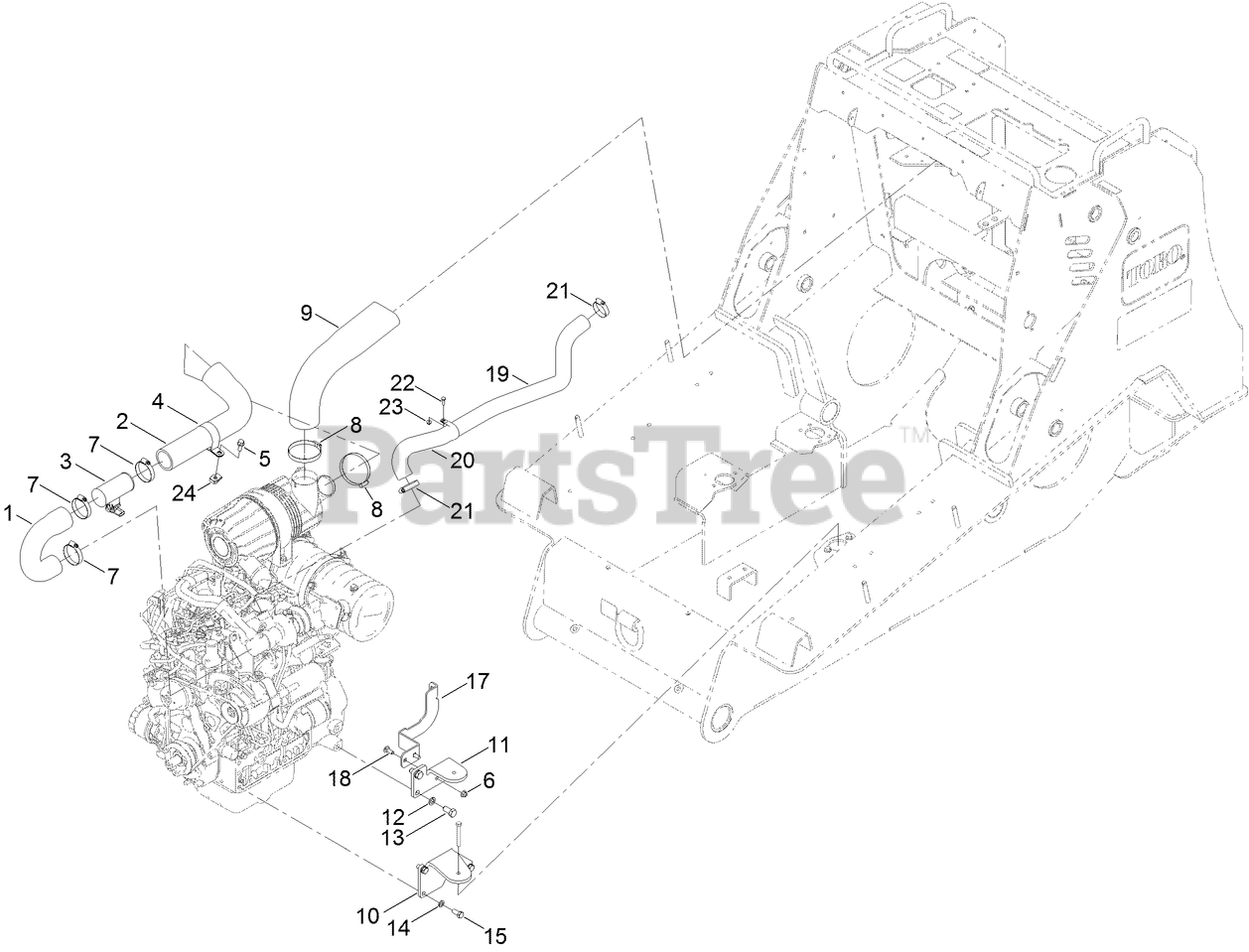

Engine Mount and Air Intake Hose Assembly Parts Diagram

  • Title

1

Toro 133-1622

HOSE-INTAKE

$52.99

$

Usually ships in 3-6 days

0

2

Toro 137-0050

HOSE-INTAKE, AIR

$75.99

$

Usually ships in 3-6 days

0

3

Toro 136-4741

SENSOR

$685.99

$

Usually ships in 3-6 days

0

4

Toro 2412-102

CLAMP-R

$9.99

$

Usually ships in 3-6 days

0

5

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 2412-42

CLAMP-HOSE

$11.99

$

Usually ships in 3-6 days

0

8

Toro 2412-110

CLAMP-BAND/SCREW

$6.49

$

Usually ships in 3-6 days

0

9

Toro 133-1689

HOSE-INTAKE

$140.99

$

Usually ships in 3-6 days

0

10

Toro 133-6967-03

MOUNT-ENGINE

$99.99

$

Usually ships in 3-6 days

0

11

Toro 133-6968-03

MOUNT-ENGINE

$81.99

$

Usually ships in 3-6 days

0

12

Toro 43-5950

WASHER-LOCK, SPRING

$1.99

$

Usually ships in 3-6 days

0

13

Toro 43-3210

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

14

Toro 48-8070

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

15

Toro AU514-842

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

17

Toro 138-2332-03

BRACKET-PUMP, LH

$67.99

$

Usually ships in 3-6 days

0

18

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Toro 137-0140

HOSE-AIR, COOLER

$100.99

$

Usually ships in 3-6 days

0

20

Toro 2412-148

CLAMP-R

$3.99

$

Usually ships in 3-6 days

0

21

Toro 2412-3

CLAMP-HOSE

$5.49

$

Usually ships in 3-6 days

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

24

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0
