22531 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 400000000 - 405539999) Cover and Access Panel Assembly Parts Diagram

Dingo Compact Utility Loader

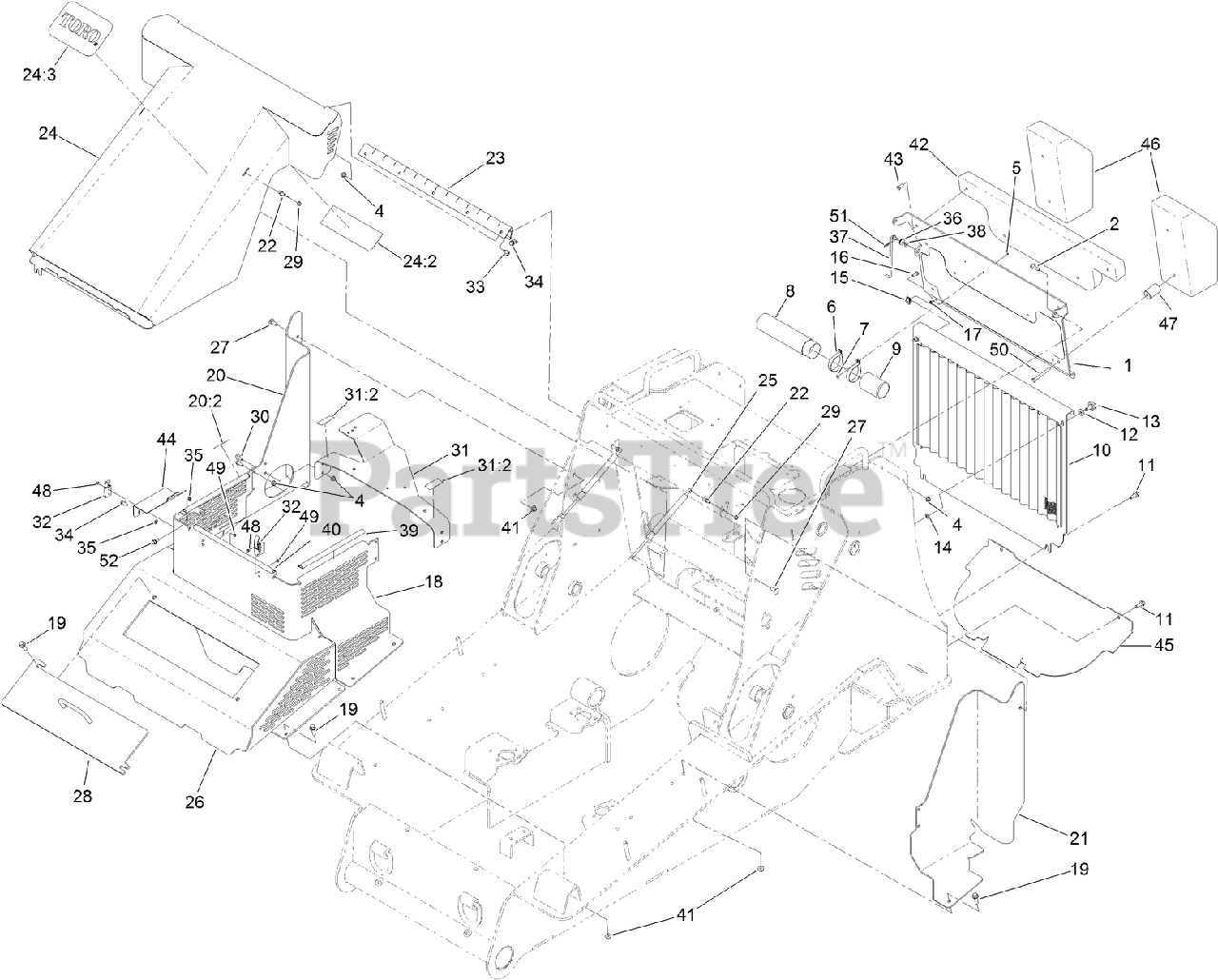

Cover and Access Panel Assembly Parts Diagram

  • Title

1

Toro 136-4854-03

PANEL-REAR

$468.99

$

Usually ships in 3-6 days

0

2

Toro 108-3744

SCREW-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

6

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

7

Toro 3269-10

WASHER-BACK

$0.99

$

In Stock, only 4 left!

0

8

Toro 104-7050

TUBE-MANUAL

$9.99

$

Usually ships in 3-6 days

0

9

Toro 104-7048

CAP-HOUSING

$6.49

$

Usually ships in 3-6 days

0

10

Toro 133-9353-03

COVER-REAR

$800.99

$

Usually ships in 3-6 days

0

11

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

12

Toro 106-0565

WASHER-RUBBER

$6.49

$

Usually ships in 3-6 days

0

13

Toro 95-9648

KNOB

$23.99

$

In Stock, only 2 left!

0

14

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 1-803037

NUT-RETAINING

$1.99

$

Usually ships in 3-6 days

0

18

Toro 133-6846-03

PANEL-ENGINE

$619.99

$

Usually ships in 3-6 days

0

19

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

20

Toro 138-4734

COVER-GRILLE, RH

$270.99

$

Usually ships in 3-6 days

0

20:2

Toro 115-2047

DECAL-SURFACE, HOT

$18.99

$

In Stock, only 1 left!

0

21

Toro 133-6873-03

PLATE-GRILLE, LH

$270.99

$

Usually ships in 3-6 days

0

22

Toro 103-5752

STUD-BALL

$8.49

$

Usually ships in 3-6 days

0

23

Toro 137-0378

HINGE-PIANO

$123.99

$

Usually ships in 3-6 days

0

24

Toro 138-4736

HOOD ASM

$946.99

$

Usually ships in 3-6 days

0

24:2

Toro 137-5419

DECAL-SERVICE

$18.99

$

Usually ships in 3-6 days

0

24:3

Toro 92-1242

DECAL

$32.99

$

Usually ships in 3-6 days

0

25

Toro 114-5532

CYLINDER-GAS

$141.99

$

Usually ships in 3-6 days

0

26

Toro 133-6840-03

FRONT COVER ASM

$1102.99

$

Usually ships in 3-6 days

0

27

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Toro 137-0440-03

COVER PLATE ASM

$202.99

$

Usually ships in 3-6 days

0

29

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

30

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

31

Toro 138-4735

BRACKET-AIR CLEANER

$111.99

$

Usually ships in 3-6 days

0

31:2

Toro 115-2047

DECAL-SURFACE, HOT

$18.99

$

In Stock, only 1 left!

0

32

Toro 105-3912

LATCH-DRAW

$49.99

$

Usually ships in 3-6 days

0

33

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

34

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

35

Toro 109-5667

RING-RETAINING, BOLT

$6.99

$

In Stock, only 2 left!

0

36

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

37

Toro 137-5350

ROD-PROP

$60.99

$

Usually ships in 3-6 days

0

38

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 137-0393

LINER-FOAM

$13.99

$

Usually ships in 3-6 days

0

40

Toro 137-0394

LINER-FOAM

$25.99

$

Usually ships in 3-6 days

0

41

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

42

Toro 137-0405

CUSHION-PAD

$270.99

$

Usually ships in 3-6 days

0

43

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Toro 137-0392-03

COVER-ACCESS

$57.99

$

Usually ships in 3-6 days

0

45

Toro 132-8485-01

COVER-ACCESS, BOTTOM

$149.99

$

Usually ships in 3-6 days

0

46

Toro 137-0536

PAD-REAR

$169.99

$

Usually ships in 3-6 days

0

47

Toro 138-2318

SPACER-PAD

$25.99

$

Usually ships in 3-6 days

0

48

Toro 112-3169

SCREW-HHF, SERRATED

$0.99

$

Usually ships in 3-6 days

0

49

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

50

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

51

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

52

Toro 32144-49

SCREW-HWHTF

$5.49

$

In Stock, only 1 left!

0
