22531 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 405540000 - 412699999) Auxiliary Hydraulic Assembly Parts Diagram

Dingo Compact Utility Loader

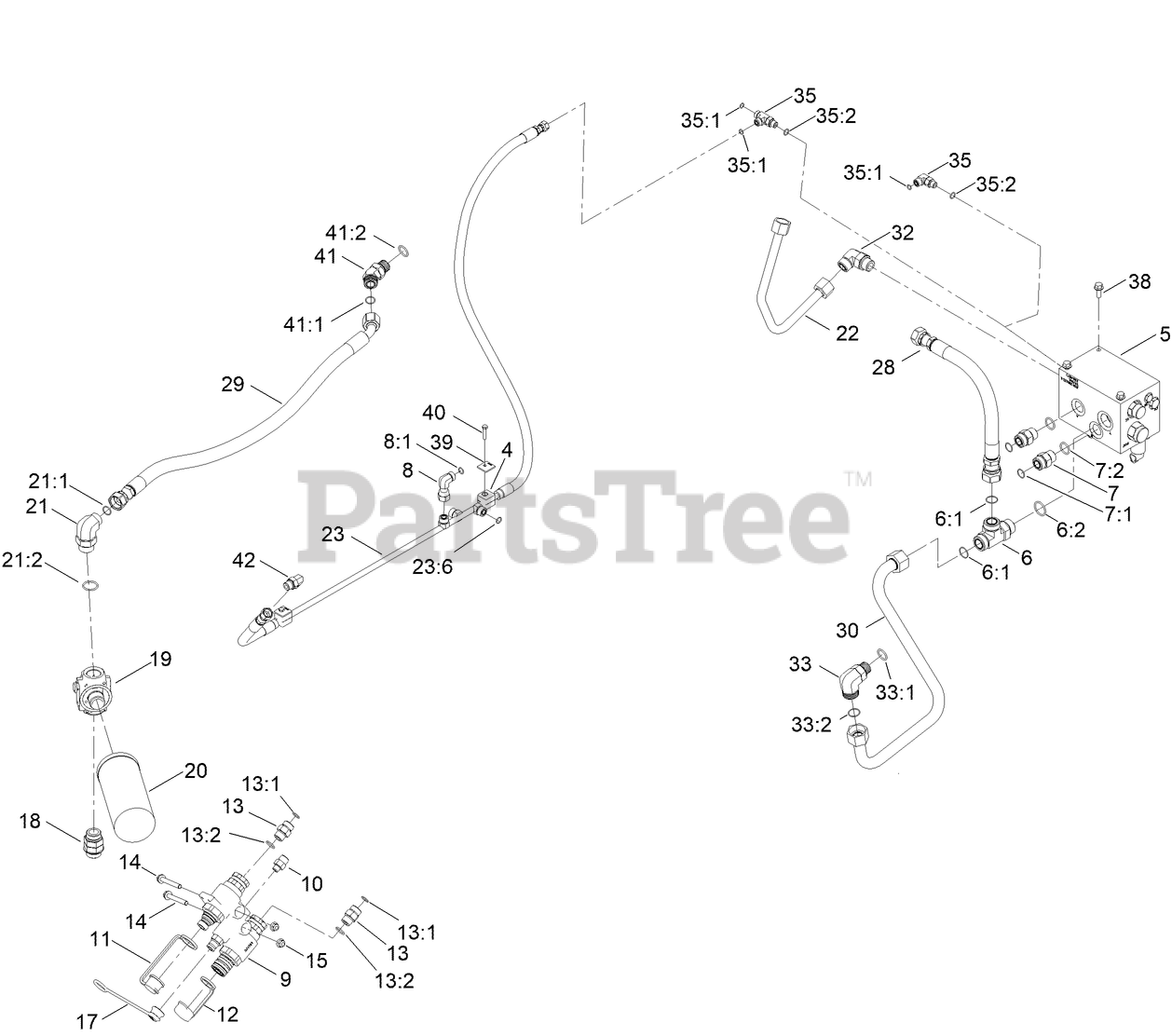

Auxiliary Hydraulic Assembly Parts Diagram

  • Title

4

Toro 138-4696

CLAMP-TUBE

$6.49

$

Usually ships in 3-6 days

0

5

Toro 136-4872

AUX MANIFOLD ASM

$3445.99

$

Usually ships in 3-6 days

0

6

Toro 104-3795

FITTING-TEE

$220.99

$

Usually ships in 3-6 days

0

6:1

Toro 340-65

O-RING

$5.99

$

In Stock, Qty 6

0

6:2

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

7

Toro 340-9

FITTING-HYD, STRAIGHT

$104.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

7:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 3 left!

0

8

Toro 94-6031

FITTING-HYD

$77.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

9

Toro 150-2410

MANIFOLD-QDC

$715.99

$

Usually ships in 3-6 days

0

10

Toro 340-5

FITTING-STRAIGHT

$21.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-42

O-RING

Note: Not illustrated

$3.49

$

In Stock, Qty 20+

0

10:2

Toro 237-30

O-RING

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0

11

Toro 100-8815

CAP-DUST, NIPPLE

$14.99

$

Usually ships in 3-6 days

0

12

Toro 100-8816

CAP-DUST, COUPLER

$16.99

$

Usually ships in 3-6 days

0

13

Toro 340-7

FITTING-STRAIGHT

$15.99

$

In Stock, Qty 7

0

13:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 12

0

13:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

14

Toro 133-9682

SCREW-HFH

$1.99

$

Usually ships in 3-6 days

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 131-6069

CAP-DUST, NIPPLE

$13.99

$

Usually ships in 3-6 days

0

18

Toro 133-9400

FITTING-STRAIGHT

$46.99

$

Usually ships in 3-6 days

0

19

Toro 121-1577

HEAD-FILTER

$191.99

$

Usually ships in 3-6 days

0

20

Toro 94-2621

ELEMENT-FILTER

$94.99

$

In Stock, only 2 left!

0

21

Toro 340-15

FITTING-ELBOW 90

$73.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

21:2

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

22

Toro 137-0124

HYD TUBE ASM

$104.99

$

Usually ships in 3-6 days

0

23

Toro 137-0125

HYD TUBE ASM

$309.99

$

Usually ships in 3-6 days

0

23:6

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

28

Toro 133-9401

HYD HOSE ASM

$208.99

$

Usually ships in 3-6 days

0

29

Toro 133-9391

HYD HOSE ASM

$179.99

$

Usually ships in 3-6 days

0

30

Toro 136-6079

HYDRAULIC TUBE ASM

$193.99

$

Usually ships in 3-6 days

0

32

Toro 340-142

FITTING-ELBOW-90

$102.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-58

O-RING

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0

32:2

Toro 237-81

O-RING

Note: Not illustrated

$3.49

$

In Stock, only 3 left!

0

33

Toro 104-3796

FITTING-ELBOW 90

$156.99

$

Usually ships in 3-6 days

0

33:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 3 left!

0

33:2

Toro 340-65

O-RING

$5.99

$

In Stock, Qty 6

0

35

Toro 340-77

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

0

35:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 2 left!

0

35:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

38

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

39

Toro 137-0128

PLATE-CLAMP,TUBE

$2.99

$

Usually ships in 3-6 days

0

40

Toro 321-8

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

41

Toro 100-5530

FITTING-45 DEG

$170.99

$

Usually ships in 3-6 days

0

41:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

41:2

Toro 237-81

O-RING

$3.49

$

In Stock, only 3 left!

0

42

Toro 340-98

FITTING-ELBOW, 90 DEG

$36.99

$

In Stock, only 2 left!

0

42:1

Toro 237-79

O-RING

Note: Not illustrated

$6.49

$

In Stock, only 3 left!

0

42:2

Toro 237-30

O-RING

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0
