22531 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 412700000 - 999999999) Loader Arm Assembly Parts Diagram

Dingo Compact Utility Loader

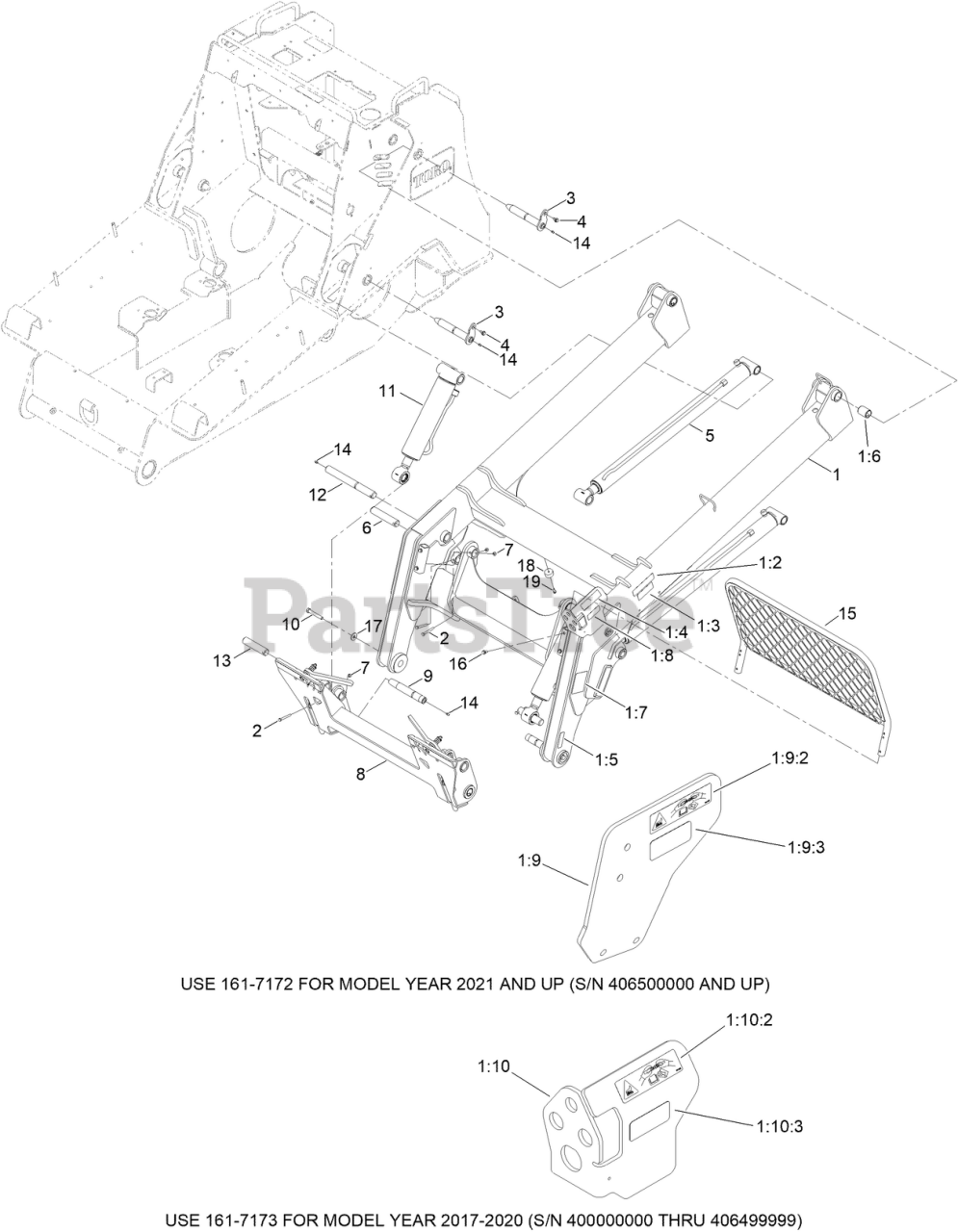

Loader Arm Assembly Parts Diagram

  • Title

1

Toro 139-7091

LOADER ARM-STANDARD, ASM

$12610.99

$

Usually ships in 3-6 days

0

1:2

Toro 139-1158

DECAL-WARNING, CRUSHING

$8.49

$

Usually ships in 3-6 days

0

1:3

Toro 139-1159

DECAL-WARNING, BYSTANDERS

$12.99

$

Usually ships in 3-6 days

0

1:4

Toro 115-4855

DECAL-CAUTION

$11.99

$

Usually ships in 3-6 days

0

1:5

Toro 120-0625

DECAL-WARNING, PINCH POINT

$4.99

$

Usually ships in 3-6 days

0

1:6

Toro 137-0126

BUSHING-SPRING

$31.99

$

Usually ships in 3-6 days

0

1:7

Toro 139-1164

DECAL-WARNING, BUCKET

$15.99

$

Usually ships in 3-6 days

0

1:8

Toro 139-1173

DECAL-WARNING, HYD PRESSURE

$6.49

$

Usually ships in 3-6 days

0

1:9

Toro 161-7172

PLATE-MOUNT QC

$

$

Currently unavailable

1:9:2

Toro 115-4855

DECAL-CAUTION

$11.99

$

Usually ships in 3-6 days

0

1:9:3

Toro 139-1173

DECAL-WARNING, HYD PRESSURE

$6.49

$

Usually ships in 3-6 days

0

1:10

Toro 161-7173

MOUNT-PLATE QD

$82.99

$

Usually ships in 3-6 days

0

1:10:2

Toro 115-4855

DECAL-CAUTION

$11.99

$

Usually ships in 3-6 days

0

1:10:3

Toro 139-1173

DECAL-WARNING, HYD PRESSURE

$6.49

$

Usually ships in 3-6 days

0

2

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

3

Toro 137-0132

PIVOT PIN ASM

$130.99

$

Usually ships in 3-6 days

0

4

Toro 99-5105

BOLT-SHOULDER

$6.99

$

In Stock, only 3 left!

0

5

Toro 139-5718

CYL-HYD

$1547.99

$

Usually ships in 3-6 days

0

6

Toro 139-7121

PIN-LINK

$67.99

$

Usually ships in 3-6 days

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 132-8468

QTACH ASM

$3311.99

$

Usually ships in 3-6 days

0

9

Toro 139-5731

PIN-LINK, TAPER

$157.99

$

Usually ships in 3-6 days

0

10

Toro 112-7264

SCREW-HH

$9.49

$

In Stock, only 2 left!

0

11

Toro 139-5717

CYL-HYD

$

$

Not available

12

Toro 132-8445

PIN-LINK

$157.99

$

Usually ships in 3-6 days

0

13

Toro 139-5739

PIN-LINK

$85.99

$

Usually ships in 3-6 days

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 139-1195-03

SCREEN-DEBRIS

$947.99

$

Usually ships in 3-6 days

0

16

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

17

Toro 110-6147

WASHER-FLAT

$7.49

$

In Stock, only 2 left!

0

18

Toro 94-4548

BUMPER-RECESSED

$7.49

$

Usually ships in 3-6 days

0

19

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.99

$

In Stock, Qty 5

0
