22532 - Toro Auger Drive for TXL 2000 Compact Utility Loader (SN: 318000001 - 318999999) (2018) Auger Drive Assembly Parts Diagram

Auger Drive for TXL 2000 Compact Utility Loader

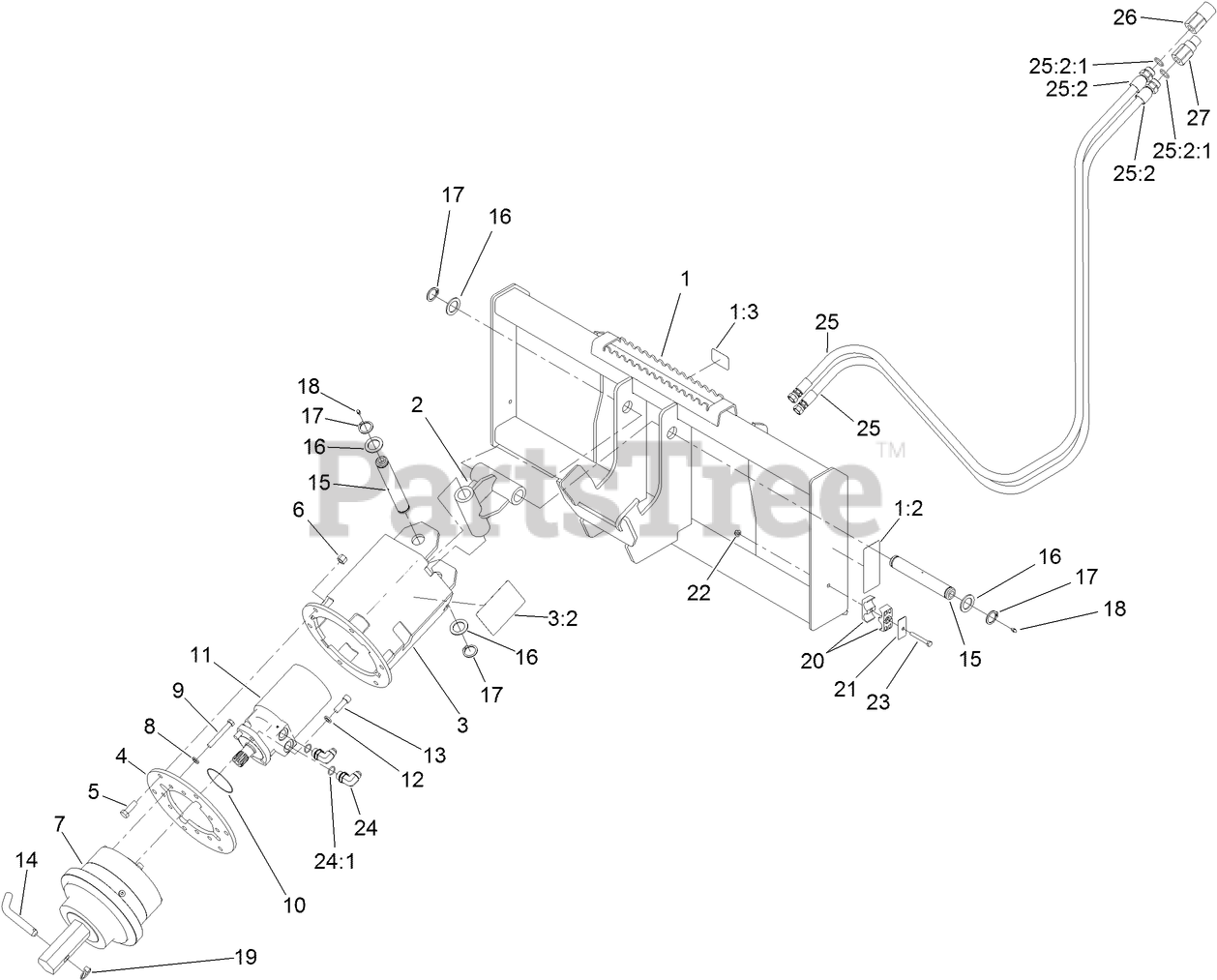

Auger Drive Assembly Parts Diagram

  • Title

1

Toro 139-2777

AUGER MOUNT ASM

$1616.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-6128

DECAL-WARNING

$

$

Currently unavailable

1:3

Toro 98-3206

DECAL

$2.49

$

In Stock, only 1 left!

0

2

Toro 137-3888

ADAPTER-PIVOT

$230.99

$

Usually ships in 3-6 days

0

3

Toro 139-2776

PLANETARY MOUNT ASM

$514.99

$

Usually ships in 3-6 days

0

3:2

Toro 138-0540

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

4

Toro 137-3891

PLATE-PLANETARY

$60.99

$

Usually ships in 3-6 days

0

5

Toro 325-6

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

6

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 137-3892

DRIVE-PLANETARY

$5428.99

$

Usually ships in 3-6 days

0

8

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 324-13

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

10

Toro 137-3894

GASKET-SEAL

$3.49

$

Usually ships in 3-6 days

0

11

Toro 137-3893

MOTOR-HYD

$4689.99

$

Usually ships in 3-6 days

0

11:1

Toro 139-1402

SEAL KIT

Note: Not illustrated

$694.99

$

Usually ships in 3-6 days

0

12

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

13

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 5

0

14

Toro 137-3899

PIN

$30.99

$

Usually ships in 3-6 days

0

15

Toro 137-3895

PIN-PIVOT

$53.99

$

Usually ships in 3-6 days

0

16

Toro 110-8195

WASHER-STEERING

$35.99

$

Usually ships in 3-6 days

0

17

Toro 32151-77

RING-RETAINING, EXTERNAL

$5.49

$

Usually ships in 3-6 days

0

18

Toro 137-9002

FITTING-ZERK

$0.99

$

Usually ships in 3-6 days

0

19

Toro 137-9005

PIN-LOCK

$2.99

$

Usually ships in 3-6 days

0

20

Toro 56-7974

CLAMP-TUBE

$3.49

$

Usually ships in 3-6 days

0

21

Toro 69-9761

PLATE-COVER

$10.99

$

Usually ships in 3-6 days

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 13

0

24

Toro 353-426

FITTING-90 DEG

$35.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

25

Toro 137-9003

HYD HOSE ASM

$441.99

$

Usually ships in 3-6 days

0

25:2

FITTING-STRAIGHT

Note: Not serviced separately

$

$

Not available

25:2:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

26

Toro 137-9006

FITTING-ADAPTER

$180.99

$

Usually ships in 3-6 days

0

27

Toro 137-9007

FITTING-ADAPTER

$107.99

$

Usually ships in 3-6 days

0
