22543 - Toro Pick-Up Broom for TXL 2000 Compact Utility Loader (SN: 318000001 - 318999999) (2018)

Pick-Up Broom for TXL 2000 Compact Utility Loader

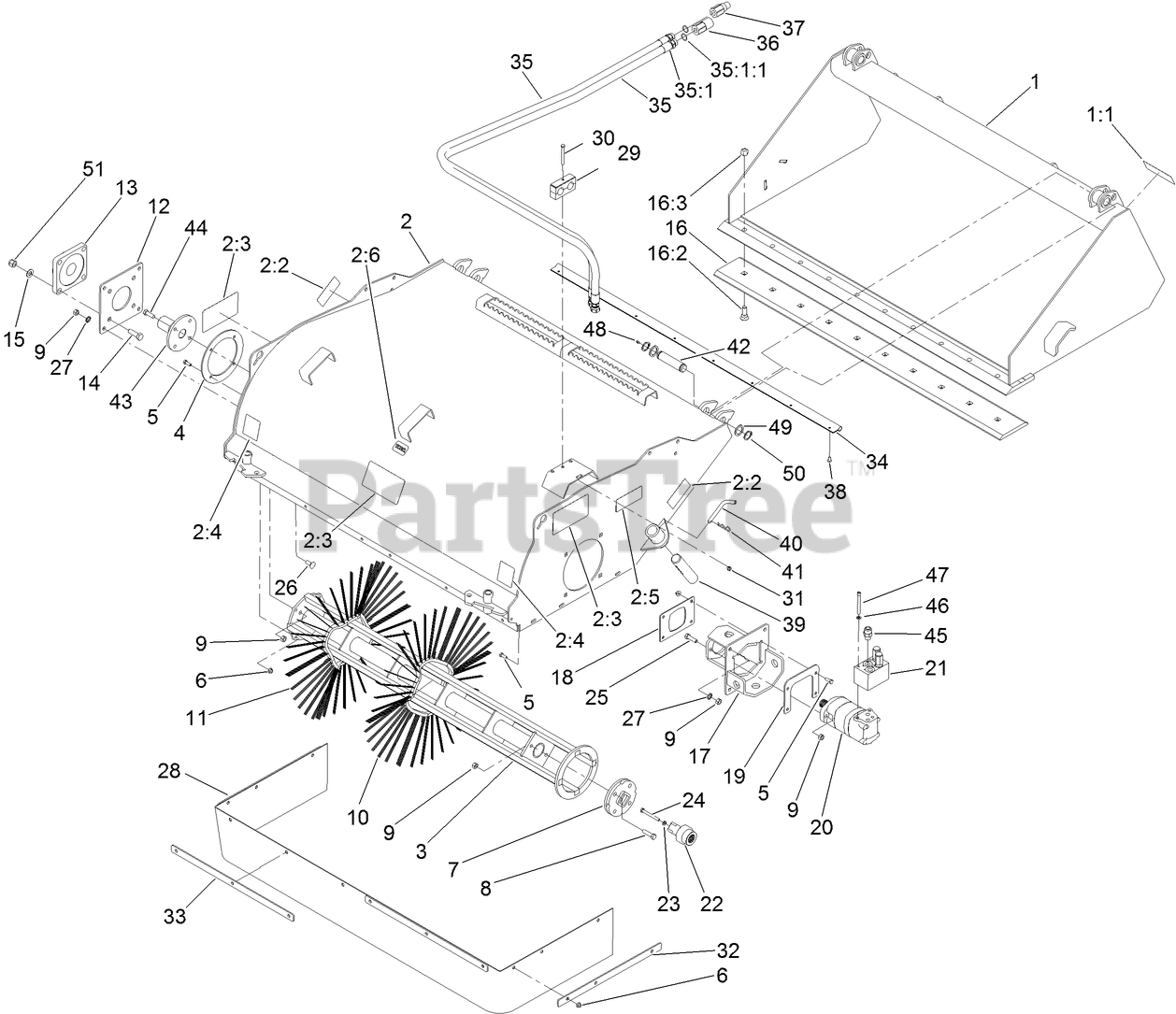

22543 - Toro Pick-Up Broom for TXL 2000 Compact Utility Loader (SN: 318000001 - 318999999) (2018) > Parts Diagrams (1) > Pick-Up Broom Assembly

  • Title
139-2816

1

PICK-UP BROOM BUCKET ASM

Part# 139-2816

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1852.40

139-2840

1:1

DECAL-CAPACITY

Part# 139-2840

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.32

139-2793

2

HOOD ASM

Part# 139-2793

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1410.26

131-0711

2:2

DECAL-WARNING, PINCH POINT

Part# 131-0711

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.60

139-2802

2:3

DECAL-DANGER

Part# 139-2802

OEM Warranty Repair Part for Toro

Currently unavailable

125-6107

2:4

DECAL-WARNING

Part# 125-6107

OEM Warranty Repair Part for Toro

Currently unavailable

125-6128

2:5

DECAL-WARNING

Part# 125-6128

OEM Warranty Repair Part for Toro

Currently unavailable

98-3206

2:6

DECAL

Part# 98-3206

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.30

138-0454

3

CORE

Part# 138-0454

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $648.87

138-0455

4

CAP

Part# 138-0455

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.15

323-6

5

SCREW-HH

Part# 323-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.85

104-8301

6

NUT-HF, NI

Part# 104-8301

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.87

137-8958

7

FLANGE-DRIVE

Part# 137-8958

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $77.00

325-8

8

SCREW-HH

Part# 325-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.94

3217-9

9

NUT-HH

Part# 3217-9

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.41

138-0457

10

BRUSH-POLY

Part# 138-0457

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $33.76

138-0458

11

BRUSH-STEEL

Part# 138-0458

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $26.65

137-8963

12

PLATE-MOUNT, BEARING

Part# 137-8963

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.03

137-9016

13

BEARING-FLANGED

Part# 137-9016

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $85.16

327-6

14

SCREW-HH

Part# 327-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.64

3256-27

15

WASHER-FLAT

Part# 3256-27

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.81

138-5238

16

60in BROOM EDGE KIT

Part# 138-5238

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $504.37

138-0469

16:2

BOLT-PLOW

Part# 138-0469

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.76

3296-53

16:3

NUT-LOCK, NI

Part# 3296-53

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.69

137-8953

17

MOUNT-MOTOR

Part# 137-8953

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $129.86

138-0461

18

SEAL-MOTOR, RUBBER

Part# 138-0461

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.98

138-0462

19

RETAINER-SEAL

Part# 138-0462

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.90

137-8954

20

HYDRAULIC MOTOR ASM

Part# 137-8954

OEM Warranty Repair Part for Toro

Currently unavailable

139-1406

20:1

SEAL KIT

Part# 139-1406

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $253.74

137-8955

21

MANIFOLD

Part# 137-8955

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $415.57

137-8957

22

ADAPTER-MOTOR

Part# 137-8957

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $186.07

3253-21

23

WASHER-LOCK

Part# 3253-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.17

323-15

24

SCREW-HH

Part# 323-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.35

325-7

25

SCREW-HH

Part# 325-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.91

110-5067

26

SCREW-CARR

Part# 110-5067

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.40

1-323142

27

NUT-PUSH

Part# 1-323142

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.70

138-0463

28

FLAP-RUBBER

Part# 138-0463

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $132.26

137-8969

29

CLAMP-HOSE

Part# 137-8969

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.68

322-20

30

SCREW-HH

Part# 322-20

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.44

104-8300

31

NUT-HF, NI

Part# 104-8300

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

138-0464

32

BRACKET-RETAINING, SIDE

Part# 138-0464

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $12.21

138-0465

33

BRACKET-RETAINING, FRONT

Part# 138-0465

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.29

138-0466

34

SEAL-RUBBER, REAR

Part# 138-0466

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $53.55

138-5206

35

HYD HOSE ASM

Part# 138-5206

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $298.71

35:1

FITTING-STRAIGHT

Part#

Note: Not serviced separately

Not available

237-81

35:1:1

O-RING

Part# 237-81

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.02

137-9006

36

FITTING-ADAPTER

Part# 137-9006

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $101.10

137-9007

37

FITTING-ADAPTER

Part# 137-9007

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $60.55

138-0470

38

RETAINER

Part# 138-0470

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.48

138-0471

39

SHAFT-ADJUSTMENT

Part# 138-0471

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $38.53

120-2270

40

PIN-BENT

Part# 120-2270 (Superseded to 119-8970)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $21.48

3290-355

41

PIN-HAIR

Part# 3290-355

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.57

138-0472

42

PIN-PIVOT

Part# 138-0472

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.03

137-8960

43

PLATE-DRUM

Part# 137-8960

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $85.61

325-6

44

SCREW-HH

Part# 325-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.43

137-8939

45

FITTING-ADAPTER

Part# 137-8939

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.98

325-35

46

SCREW-HH

Part# 325-35

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.83

137-8956

47

SCREW

Part# 137-8956

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.03

137-9002

48

FITTING-ZERK

Part# 137-9002

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.48

110-8195

49

WASHER-STEERING

Part# 110-8195

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.58

32151-77

50

RING-RETAINING, EXTERNAL

Part# 32151-77

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.89

3296-53

51

NUT-LOCK, NI

Part# 3296-53

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.69
