22581 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) Rear Axle Assembly Parts Diagram

Walk-Behind Mower

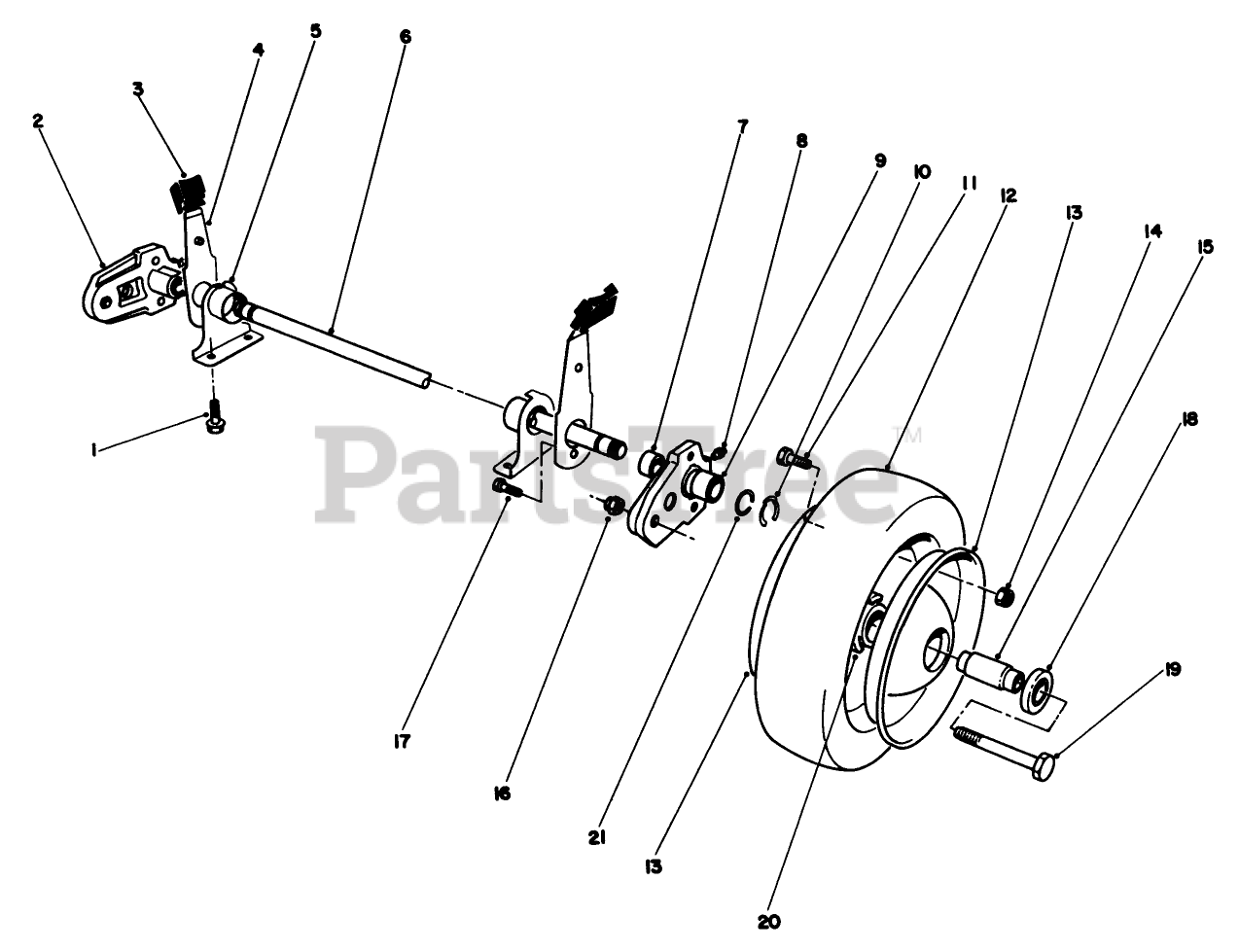

Rear Axle Assembly Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 7

0

2

Toro 65-5042

PIVOT ARM ASM

$67.99

$

In Stock, only 1 left!

0

3

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

4

Toro 65-5440

SPRING ARM ASM

$29.99

$

Usually ships in 3-6 days

0

5

Toro 66-0360

CAP-END

$10.99

$

Usually ships in 3-6 days

0

6

Toro 66-0530

SHAFT - AXLE

$72.99

$

Usually ships in 3-6 days

0

7

Toro 70-9760

BUSHING

$5.49

$

In Stock, Qty 20+

0

8

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, Qty 11

0

9

Toro 48-2060

See Supercession: 117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 7

0

10

Toro 65-2720

RING-RETAINING,CLIP

$1.49

$

In Stock, Qty 20+

0

11

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

12

Toro 53-7740

TIRE

$43.99

$

In Stock, only 3 left!

0

13

Toro 53-7780

See Supercession: 121-1365-06
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 2 left!

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 52-2440

SPACER-BEARING

$11.99

$

In Stock, only 3 left!

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 65-5220

SCREW-HSH, THREAD FORMING

$4.49

$

Usually ships in 3-6 days

0

18

Toro 52-2450

BEARING-WHEEL

$20.99

$

In Stock, Qty 20+

0

19

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 7

0

20

Toro 52-2410

HUB-BEARING

$36.99

$

In Stock, Qty 13

0

21

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

Toro 53-7720

See Supercession: 121-1380
(Superseded to 121-1380)

$106.99

$

Usually ships in 3-6 days

0
